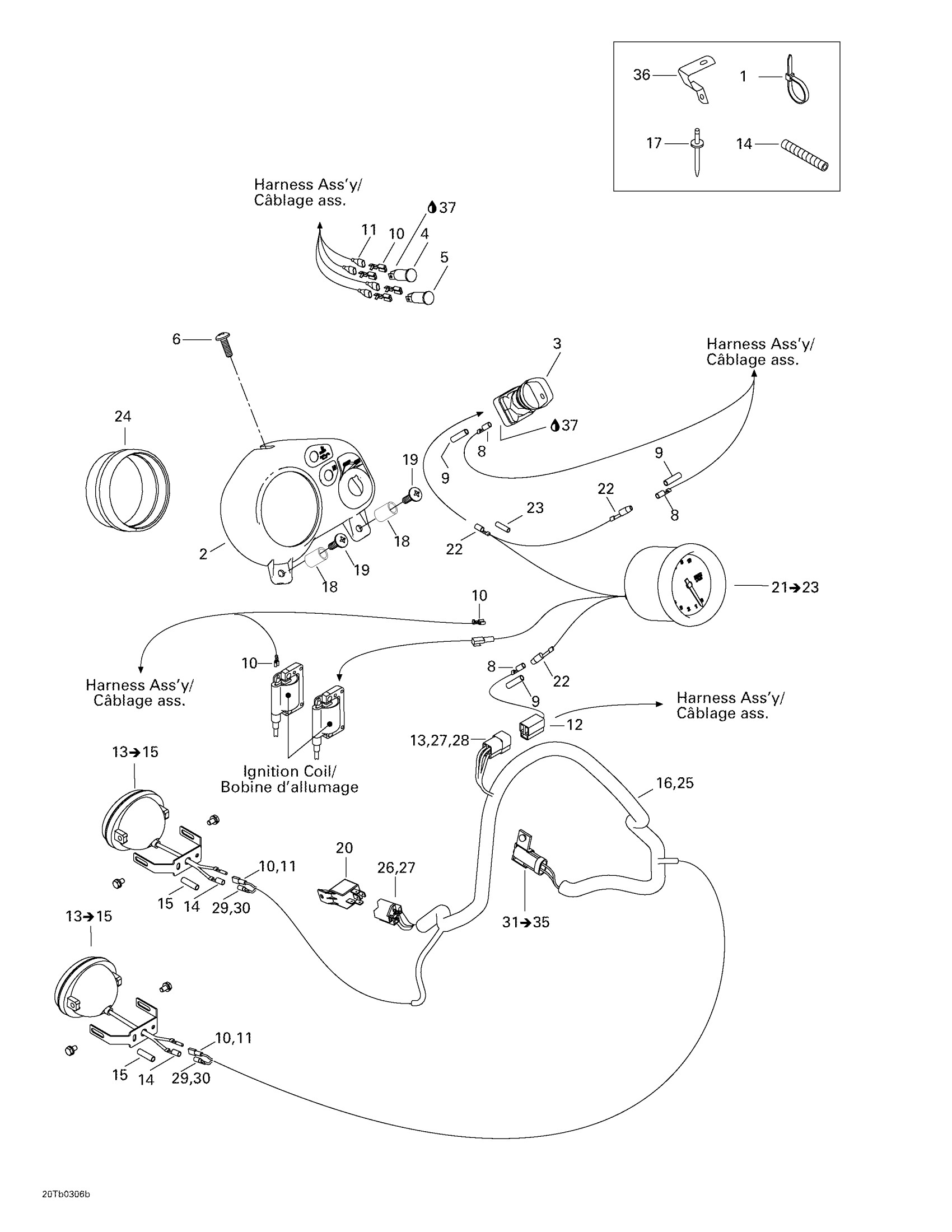

Can-Am DS 650, 2003 10- Electrical System 2 Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

1

Tie Wrap 94 mm | 4X4

293750001

$1.03

1

Tie Wrap 368 mm

293750008

$1.04

2

DASHBOARD - Call your local BRP dealership | DS 650 X

710000250

Unavailable

2

DASHBOARD - Call your local BRP dealership | DS 650

710000060

Unavailable

3

IGNITION SWITCH - Call your local BRP dealership

710000075

Unavailable

3

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

3

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

4

Pilot Lamp, Red

710000062

Unavailable

5

Pilot Lamp

710000063

Unavailable

6

Hex. Flange Screw M6 X 16

210261650

$1.67

7

Harness Ass'y, Not Shown

710000226

Unavailable

8

Female Terminal | DS 650 X

278001009

$3.19

9

Insulated Sheath

278001007

$3.58

10

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

11

Rubber Envelope Terminal

710000115

Unavailable

12

Female Housing

409204300

Unavailable

13

HEADLAMP - Call your local BRP dealership | DS 650 X / Includes 59 to 62

710000268

$64.99

14

Female Terminal | DS 650 X

278001009

$3.19

15

Insulated Sheath

278001007

$3.58

16

Tubing 6 Mm 3000Mm Long

219704425

$13.75

16

Was 409901700 Tubing (9 mm)

219704399

$84.99

16

Tubing 10 MM 1000MM Long

219704407

$2.79

16

Was 409901800 Tubing (13 mm)

219704400

$14.49

16

Tubing 16 Mm 1000Mm Long

219704408

$7.49

17

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

18

Hose 6 mm

204000068

Unavailable

19

Hex. Flange Screw M6 X 16

210261650

$1.67

19

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

20

Relay | DS 650 X

710010053

$23.49

21

Tachometer | Includes 21 - 23.

710000267

Unavailable

21

Tachometer

710000251

Unavailable

22

Male Terminal

278000230

$4.39

23

Insulated Sheath

278000770

$7.90

24

Gauge Support

293720047

Unavailable

25

FRONT LAMP HARNESS ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 37

710000256

Unavailable

26

Female Terminal

561503100

$2.41

27

Female Housing, 5 Circuits

409209900

$9.59

28

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

29

Insulated Sheath

278001008

$3.28

30

Male Terminal

278000230

$4.39

31

Fuse, 15 Amperes

278000343

$3.28

32

Cushion

278000805

$3.28

33

Fuse Holder Cap

278001326

$7.69

34

Fuse Holder

278001325

$8.79

35

Female Terminal

710000113

$6.99

36

Open Clamp

515175507

$1.89

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
