Description

Price

1

METAL PLATFORM PAINTED - Call your local BRP dealership

605156657

Unavailable

2

Housing Half

506150400

$7.62

3

Housing Bushing

506150500

$7.99

4

Stopper Plate

506150600

$4.39

5

Carriage Bolt M8 X 70

207787044

$1.37

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Cargo Box Hinges Reinforcement Plate

705203836

$18.49

8

Cargo Box Gas Shock

708301058

$114.99

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Black, LH Side Platform | Model-Black

708303737

$259.99

10

Black Lh Platform Kit | Model-Black North America

715003381

$409.99

10

Yellow Side Platform LH | Model-Yellow

708301473

$409.99

10

YELLOW LH PLATFORM KIT - Call your local BRP dealership | Model-Yellow North America

715003377

Unavailable

10

Quarry Gray-Side Platform LH | Model-Gray International

708301475

$391.99

10

GREY LH PLATFORM KIT - Call your local BRP dealership | Model-Gray North America

715003379

Unavailable

11

Hinge Axis

708300935

$104.99

12

Socket Head Screw M8 X 30

205083044

$1.15

13

Torx Truss Screw M8 X 50

250000761

$7.51

14

Stainless Steel Flat Washer

234082670

$2.11

15

Black, RH Side Platform | Model-Black

708303738

$259.99

15

BLACK, RH SIDE PLATFORM - Call your local BRP dealership | Model-Black North America

715002794

Unavailable

15

Yellow Side Platform RH | Model-Yellow

708301474

$409.99

15

YELLOW SIDE PLATFORM RH - Call your local BRP dealership | Model-Yellow North America

715002796

Unavailable

15

QUARRY GRAY-SIDE PLATFORM RH - Call your local BRP dealership | Model-Gray International

708301476

Unavailable

15

QUARRY GRAY-SIDE PLATFORM RH - Call your local BRP dealership | Model-Gray North America

715002798

Unavailable

16

Torx Truss M/S M8 X 40

205484056

$7.51

17

Flat Washer 8 mm

234081410

$0.83

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

Hex. Flange Screw, M8 X 65

207686544

$13.16

20

Retaining Hook

708301189

$54.99

21

Socket Screw M6 X 35

205363586

$8.32

22

Hex. Flange Nut M6

233061414

$1.68

23

LH Tail Light Plate | Model-International

708301274

$41.49

24

RH Tail Light Plate | Model-International

708301275

$38.99

25

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

26

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

28

Red Reflector

705011221

$14.49

29

LH Reflector Support

708301538

$38.99

29

RH Reflector Support

708301539

$44.99

30

Hex. Flange Elastic Nut M5

233251414

$1.04

31

License Light

710002055

$58.49

32

Red Reflector

705011221

$14.49

33

Black, Front Panel Short

708302081

$459.99

34

Torx Truss Screw M8 X 50

250000761

$7.51

35

Stainless Steel Flat Washer

234082670

$2.11

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Locking Handle Weld

708300939

$72.99

38

Hair pin

41029

$4.44

39

Bed Heat Shield On Top

708301336

$14.99

40

Bed Heat Shield On Side

708301337

$16.49

41

Side Heat Shield

708301338

$16.49

42

Middle Deck

708300959

$339.99

43

Lower Tailgate

708300964

$234.99

44

BRP Logo 68 mm

219902672

$13.99

45

Hood Latch

5342952

$24.49

46

Hex. Screw M4 X 25

207142544

$2.00

47

Elastic Stop Nut M4

232541484

$0.74

48

Washer

20037

$2.11

49

Counter Roller

605449087

$4.12

50

Rivet

293150212

$2.11

51

Washer

517124300

$0.19

52

Grommet

517303756

$4.09

53

Linq Hole Filler

708301095

$10.99

55

Retainer Cable

293750069

$15.99

56

Register Plate Support

708300965

$114.99

57

Limiter Rail

708301213

$56.99

58

Stavex Rivet

293150144

$0.82

59

Limiter Hook

708301261

$38.99

60

Filler Plate

708301262

Unavailable

60

Middle Deck Ass'y | North America

715002810

$39.99

61

Handle Plate

708301263

$19.99

62

Pop Rivet 3/16”

293150108

$1.19

63

Rear Light Harness

515177565

$299.99

64

Trailer Harness

515177667

Unavailable

65

Support Plate

705204877

$77.99

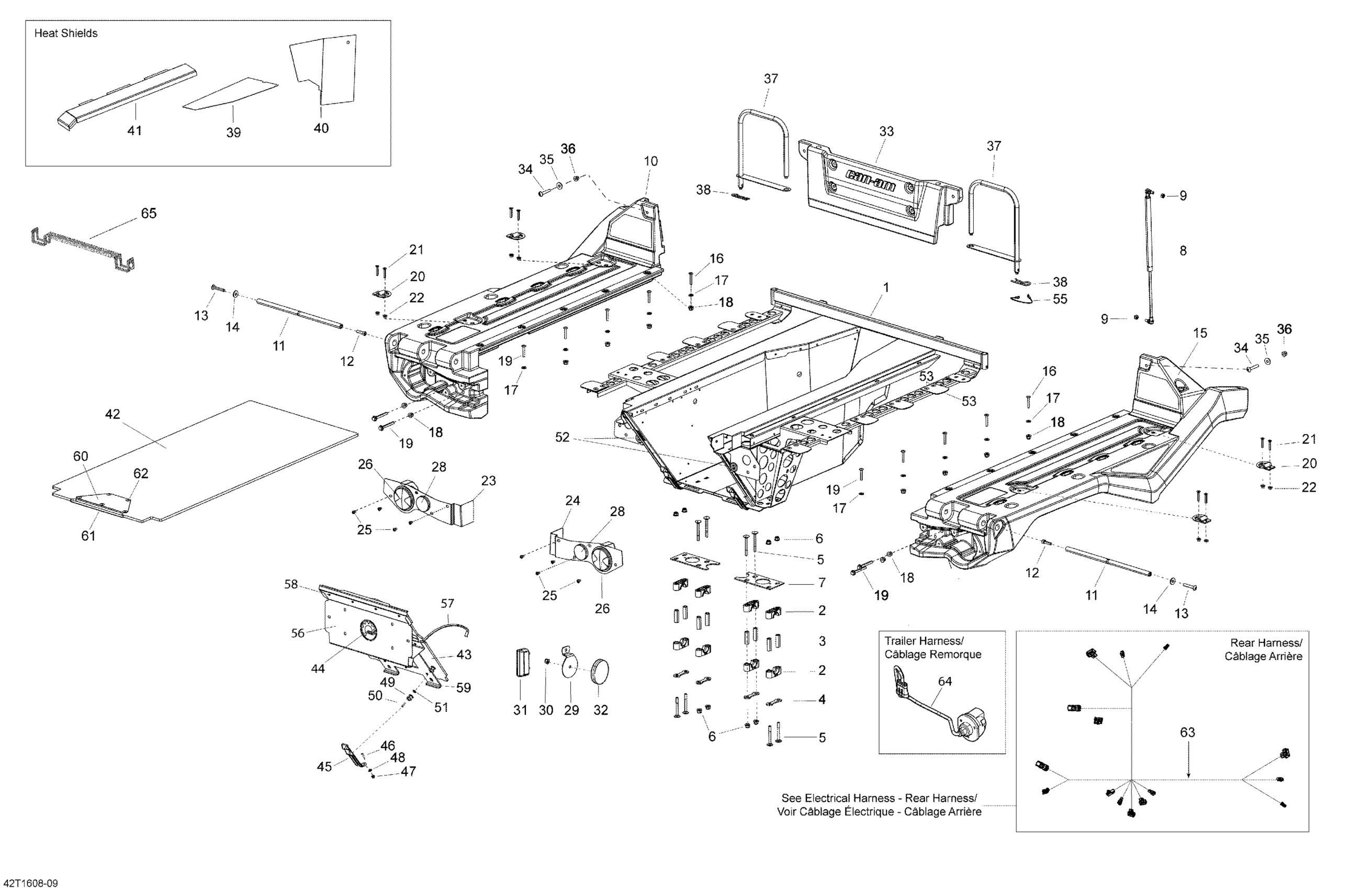

Can-Am Outlander 6X6 - 1000 EFI, 2016 09- Rear Cargo Box Diagram

METAL PLATFORM PAINTED - Call your local BRP dealership

Housing Half

Housing Bushing

Stopper Plate

Carriage Bolt M8 X 70

Hex. Flange Elastic Nut M8

Cargo Box Hinges Reinforcement Plate

Cargo Box Gas Shock

Hex. Elastic Stop Nut M8

Black, LH Side Platform | Model-Black

Black Lh Platform Kit | Model-Black North America

Yellow Side Platform LH | Model-Yellow

YELLOW LH PLATFORM KIT - Call your local BRP dealership | Model-Yellow North America

Quarry Gray-Side Platform LH | Model-Gray International

GREY LH PLATFORM KIT - Call your local BRP dealership | Model-Gray North America

Hinge Axis

Socket Head Screw M8 X 30

Torx Truss Screw M8 X 50

Stainless Steel Flat Washer

Black, RH Side Platform | Model-Black

BLACK, RH SIDE PLATFORM - Call your local BRP dealership | Model-Black North America

Yellow Side Platform RH | Model-Yellow

YELLOW SIDE PLATFORM RH - Call your local BRP dealership | Model-Yellow North America

QUARRY GRAY-SIDE PLATFORM RH - Call your local BRP dealership | Model-Gray International

QUARRY GRAY-SIDE PLATFORM RH - Call your local BRP dealership | Model-Gray North America

Torx Truss M/S M8 X 40

Flat Washer 8 mm

Hex. Flange Elastic Nut M8

Hex. Flange Screw, M8 X 65

Retaining Hook

Socket Screw M6 X 35

Hex. Flange Nut M6

LH Tail Light Plate | Model-International

RH Tail Light Plate | Model-International

Socket Screw Button Head M6 X 10 | DS 650

Tail Light Ass'y | Includes 32 to 33

Red Reflector

LH Reflector Support

RH Reflector Support

Hex. Flange Elastic Nut M5

License Light

Red Reflector

Black, Front Panel Short

Torx Truss Screw M8 X 50

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M8

Locking Handle Weld

Hair pin

Bed Heat Shield On Top

Bed Heat Shield On Side

Side Heat Shield

Middle Deck

Lower Tailgate

BRP Logo 68 mm

Hood Latch

Hex. Screw M4 X 25

Elastic Stop Nut M4

Washer

Counter Roller

Rivet

Washer

Grommet

Linq Hole Filler

Retainer Cable

Register Plate Support

Limiter Rail

Stavex Rivet

Limiter Hook

Filler Plate

Middle Deck Ass'y | North America

Handle Plate

Pop Rivet 3/16”

Rear Light Harness

Trailer Harness

Support Plate
