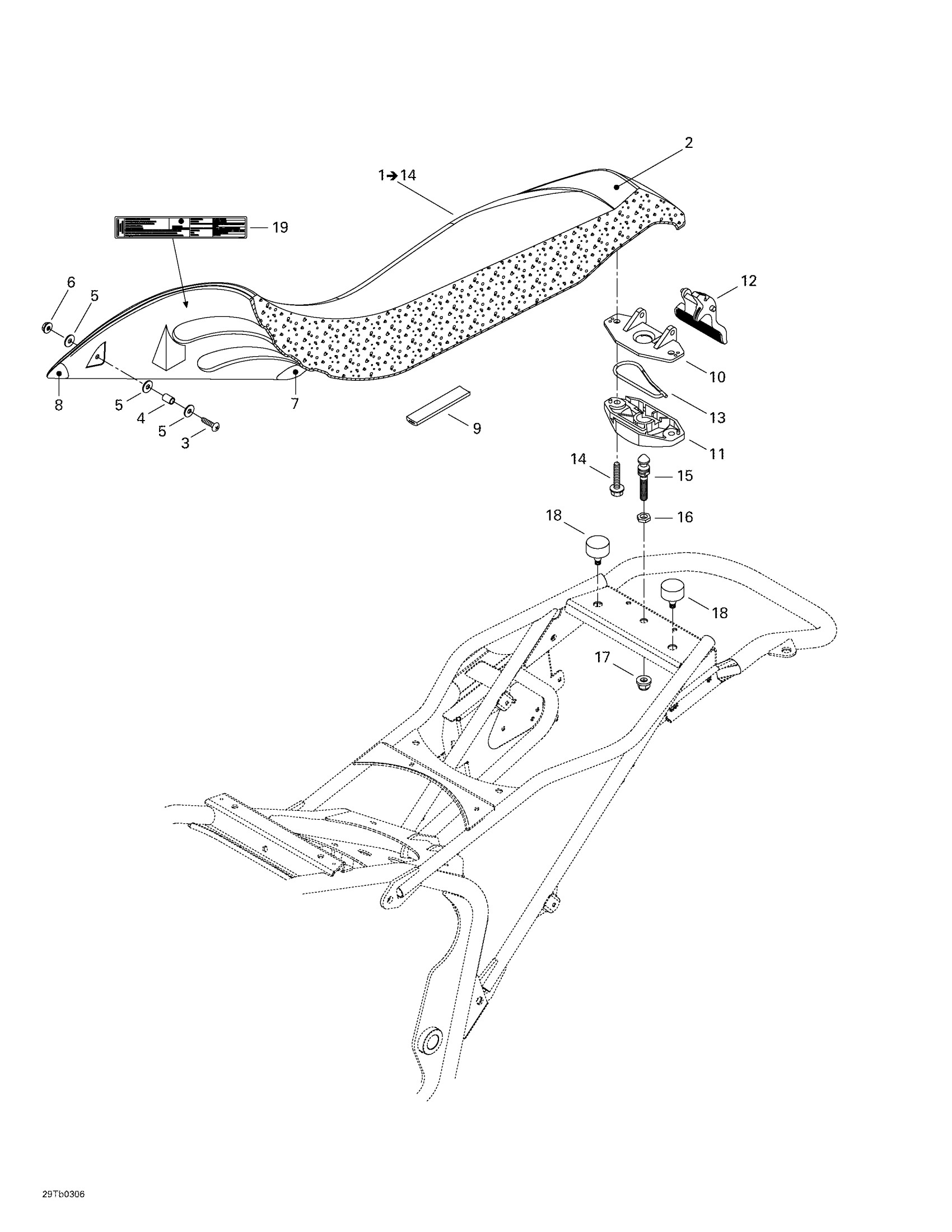

Can-Am DS 650, 2003 09- Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 - 14. DS 650.

708000153

Unavailable

Seat Ass'y | DS 650 Baja.

708000158

Unavailable

2

Seat Cover | DS 650.

708000154

Unavailable

Seat Cover

708000115

Unavailable

3

SCREW M6 X 30 - Call your local BRP dealership

250000046

Unavailable

4

SPACER - Call your local BRP dealership

708000049

Unavailable

5

Flat Washer

224061201

$1.37

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Seat Corner

708000155

Unavailable

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

8

Seat Corner

708000156

Unavailable

Seat Corner

708000157

Unavailable

LH SEAT CORNER - Call your local BRP dealership

708000128

Unavailable

RH SEAT CORNER - Call your local BRP dealership

708000129

Unavailable

9

Seal Tray 1000Mm Long

219704368

$13.99

10

Latch Ass'y

269700109

$24.99

11

Latch Ass'y

269700109

$24.99

12

Latch Ass'y

269700109

$24.99

13

Latch Spring

269700017

$9.19

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

16

Hex. Jam Nut M10

232100600

$2.22

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Rubber Stopper

708000758

$12.99

19

Emission Label

704900397

Unavailable
