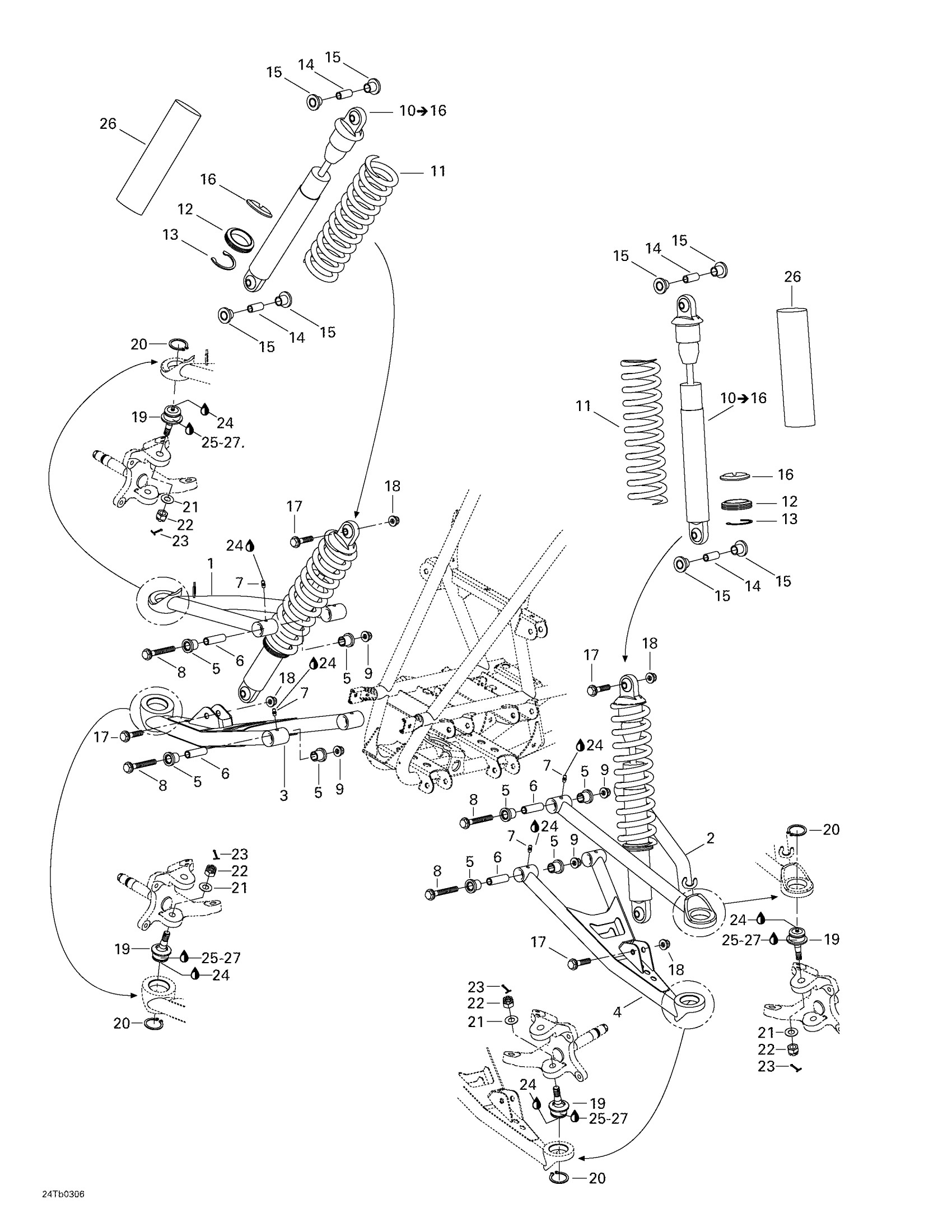

Can-Am DS 650, 2003 07- Front Suspension Diagram

#

Description
Price

1

RH Upper Arm

706200246

Unavailable

2

LH Upper Arm

706200252

Unavailable

3

RH Lower Arm

706200257

Unavailable

4

LH Lower Arm

706200264

Unavailable

5

Cushion

706200063

Unavailable

6

Internal Bushing

706200061

Unavailable

7

Grease Fitting

408200700

$3.49

8

Hex. Flange Screw M10 X 75

207607546

$6.59

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

FRONT SHOCK - Call your local BRP dealership

706200297

Unavailable

11

Front Spring

706200082

Unavailable

11

Front Spring | DS 650.

706200296

Unavailable

12

SPRING SEAT - Call your local BRP dealership | DS 650

706200212

Unavailable

13

RING HOLDER - Call your local BRP dealership | DS 650

706200138

Unavailable

14

Bushing | DS 650

706200097

Unavailable

15

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

16

SPRING RETAINER - Call your local BRP dealership | DS 650

706200211

Unavailable

17

Hex. Flange Screw M10 X 50

207605044

$5.29

18

Hex. Flange Elastic Nut M10

233201414

$1.58

19

Ball Joint

703500082

Unavailable

20

Circlip

293370017

$4.44

21

Hardened Washer

706200281

$2.85

22

Hex. Castellated Nut M12

232221414

$3.17

23

Cotter Pin

211400017

$0.33

24

Synthetic Grease, 400 G

293550010

Unavailable

25

Loctite 609, 10 ml

413703100

$26.99

26

Protector

706200276

Unavailable

27

Was 293800041 Loctite Primer 7649

219704458

$39.99
