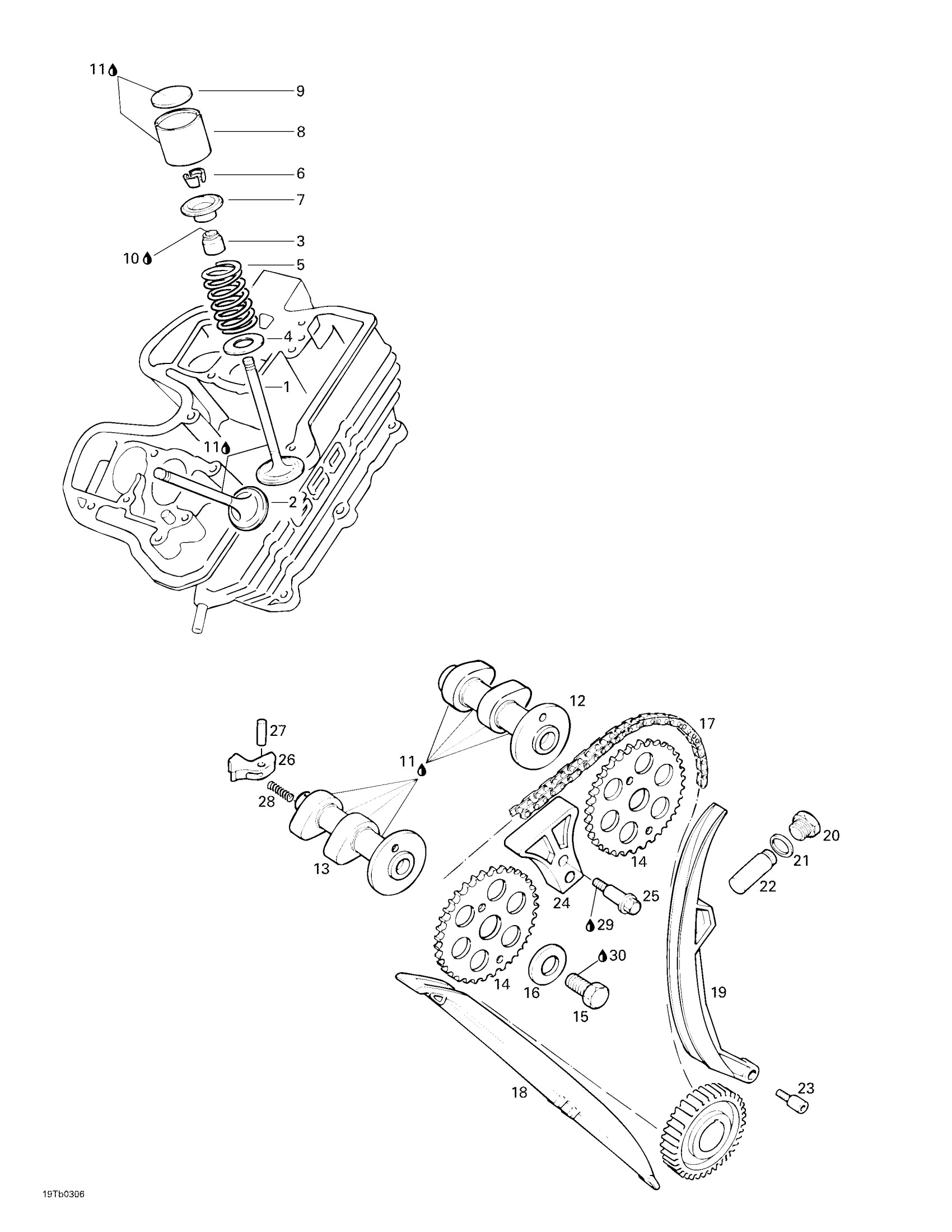

Can-Am DS 650, 2003 01- Valve Diagram

#

Description
Price

1

Inlet Valve

420253770

$62.49

2

EXHAUST VALVE - Call your local BRP dealership

420253780

Unavailable

3

Seal

420230510

$15.81

4

THRUST WASHER - Call your local BRP dealership

420227982

Unavailable

5

VALVE SPRING - Call your local BRP dealership

420239290

Unavailable

6

Valve Cotter

420253645

$7.41

7

VALVE SPRING RETAINER - Call your local BRP dealership

420253760

Unavailable

8

VALVE TAPPET - Call your local BRP dealership

420253545

Unavailable

9

SHIM 2,1 - Call your local BRP dealership

420253741

Unavailable

SHIM 2,15 - Call your local BRP dealership

420253752

Unavailable

SHIM 2,2 - Call your local BRP dealership

420253742

Unavailable

SHIM 2,25 - Call your local BRP dealership

420253753

Unavailable

SHIM 2,3 - Call your local BRP dealership

420253743

Unavailable

Shim 2,35"

420253754

Unavailable

SHIM 2,4 - Call your local BRP dealership

420253744

Unavailable

SHIM 2,45 - Call your local BRP dealership

420253755

Unavailable

SHIM 2,5 - Call your local BRP dealership

420253745

Unavailable

Shim 2,55"

420253756

Unavailable

SHIM 2,6 - Call your local BRP dealership

420253746

Unavailable

Shim 2,7"

420253747

Unavailable

SHIM 2,8 - Call your local BRP dealership

420253748

Unavailable

SHIM 2,9 - Call your local BRP dealership

420253749

Unavailable

10

Grease, Super Lube

293550030

$28.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Camshaft, Inlet

420220190

Unavailable

13

CAMSHAFT, EXHAUST - Call your local BRP dealership

420220200

Unavailable

14

TIMING GEAR, 34 TEETH - Call your local BRP dealership

420634280

Unavailable

15

HEX. SCREW M10 X 20 - Call your local BRP dealership

207102044

Unavailable

16

WASHER - Call your local BRP dealership

420627040

Unavailable

17

CHAIN-TIMING - Call your local BRP dealership

420297891

Unavailable

18

Chain Guide

420236230

Unavailable

19

CHAIN TENSION GUIDE - Call your local BRP dealership

420236221

Unavailable

20

HEX. SCREW M18 X 10 - Call your local BRP dealership

420552277

Unavailable

21

Crush Washer

420552280

$3.70

22

Chain Tensioner

415129408

$63.49

23

SCREW M6 - Call your local BRP dealership

420240940

Unavailable

24

Chain Guide Bow

420236240

Unavailable

25

DISTANCE SCREW M6 X 16 - Call your local BRP dealership

420240960

Unavailable

26

CENTRIFUGAL WEIGHT - Call your local BRP dealership

420231045

Unavailable

27

PEG - Call your local BRP dealership

420232910

Unavailable

28

SPRING - Call your local BRP dealership

420239920

Unavailable

29

Loctite 243, 10 ml

293800060

$21.49

30

Sealant Loctite 648

219703000

$45.99
