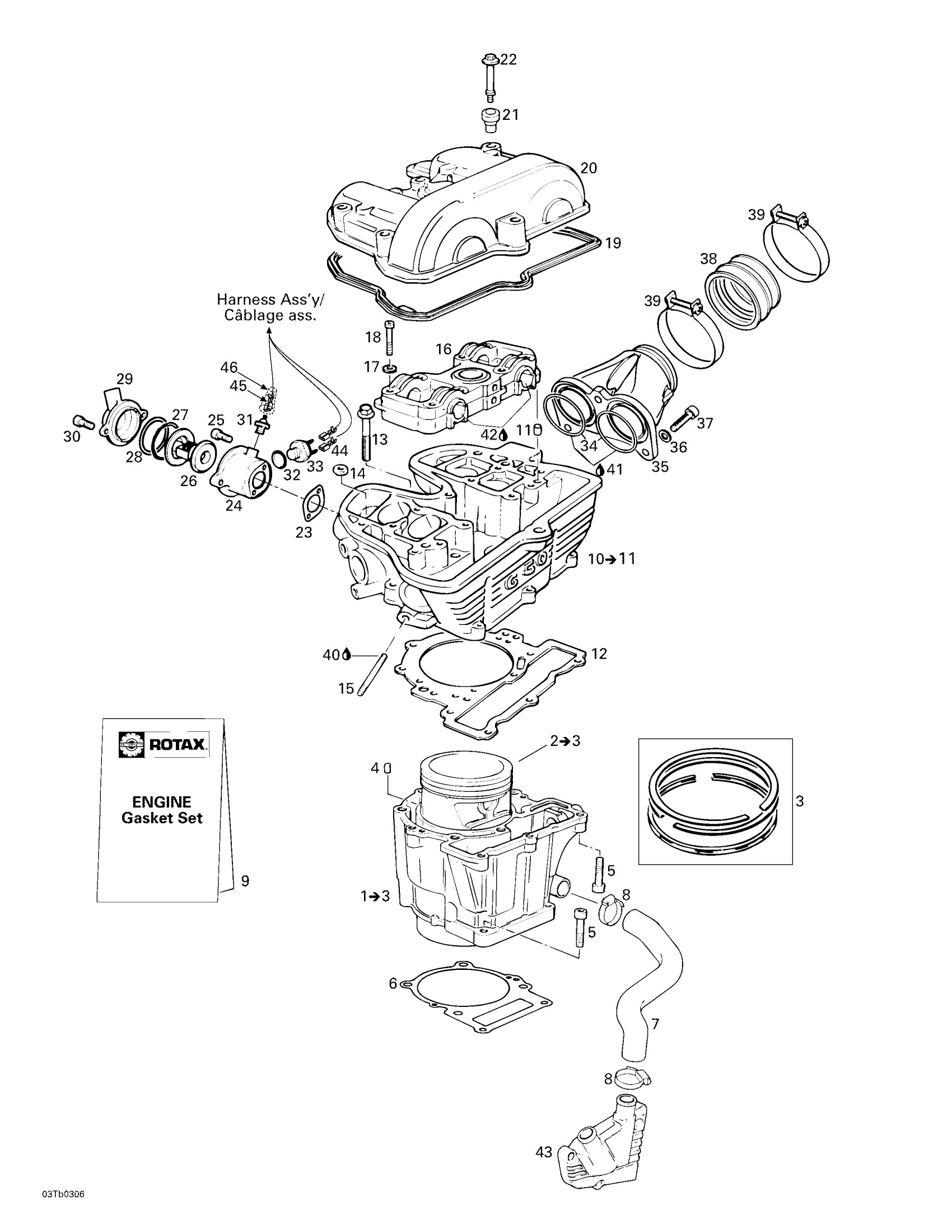

Can-Am DS 650, 2003 01- Cylinder, Cylinder Head Diagram

#

Description
Price

1

Cylinder With Piston Ass'y | Includes 1 to 3

420223906

Unavailable

2

PISTON ASS'Y - Call your local BRP dealership | Includes 18 to 19

420295185

Unavailable

3

Piston Ring Set

420295184

$79.99

4

Drive Pin 5 X 10

420929650

$1.68

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Gasket

420650010

Unavailable

7

WATER COOLING HOSE - Call your local BRP dealership

420222450

Unavailable

8

Tridon Gear Clamp

293650051

$4.19

9

GASKET SET - Call your local BRP dealership

420294768

Unavailable

10

CYLINDER HEAD - Call your local BRP dealership | Includes 1 to 2

420223916

Unavailable

11

Center Pin 8 X 12

420632010

$4.01

12

GASKET - Call your local BRP dealership

420650020

$69.99

13

Hex. Flange Screw M8 X 45

207684544

$3.80

14

Hex. Flange Nut M10

233101414

$4.97

15

STUD M8 X 58 - Call your local BRP dealership

420240362

Unavailable

16

Camshaft Bridge

420211326

Unavailable

17

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

18

Socket Head Screw M6 X 45

420241820

Unavailable

19

GASKET - Call your local BRP dealership

420250900

Unavailable

20

VALVE COVER - Call your local BRP dealership

420211301

Unavailable

21

Rubber Bushing

420260050

Unavailable

22

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

$25.99

23

Gasket

420650060

Unavailable

24

THERMOSTAT HOUSING - Call your local BRP dealership

420222430

Unavailable

25

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840518

Unavailable

26

Thermostat

420222463

$69.99

27

CORRUGATED WASHER - Call your local BRP dealership

420245770

Unavailable

28

O-RING - Call your local BRP dealership

420650030

Unavailable

29

THERMOSTAT COVER - Call your local BRP dealership

420222440

Unavailable

30

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

420840512

Unavailable

31

Thermostatic Switch

420265392

Unavailable

32

O-RING - Call your local BRP dealership

420230380

Unavailable

33

Inter.Thermost.*Switch-Thermo Fan

420265396

$35.99

34

O-Ring

293300059

$7.51

35

Intake Adaptor

420267230

Unavailable

36

Flat Washer 6 mm

234061410

$1.36

37

Socket Head Screw M6 X 25

205062544

$1.15

38

Carburator Flange 52 mm

420267240

$46.49

39

Norma Gear Clamp

293650090

$4.54

40

Sealant Loctite 648

219703000

$45.99

41

Grease, Super Lube

293550030

$28.99

42

Not Available As Spare Part - Friction Washer

Unavailable

43

WATER PUMP COVER - Call your local BRP dealership

420211270

Unavailable

44

Female Terminal

710000038

$4.55

45

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

46

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable
