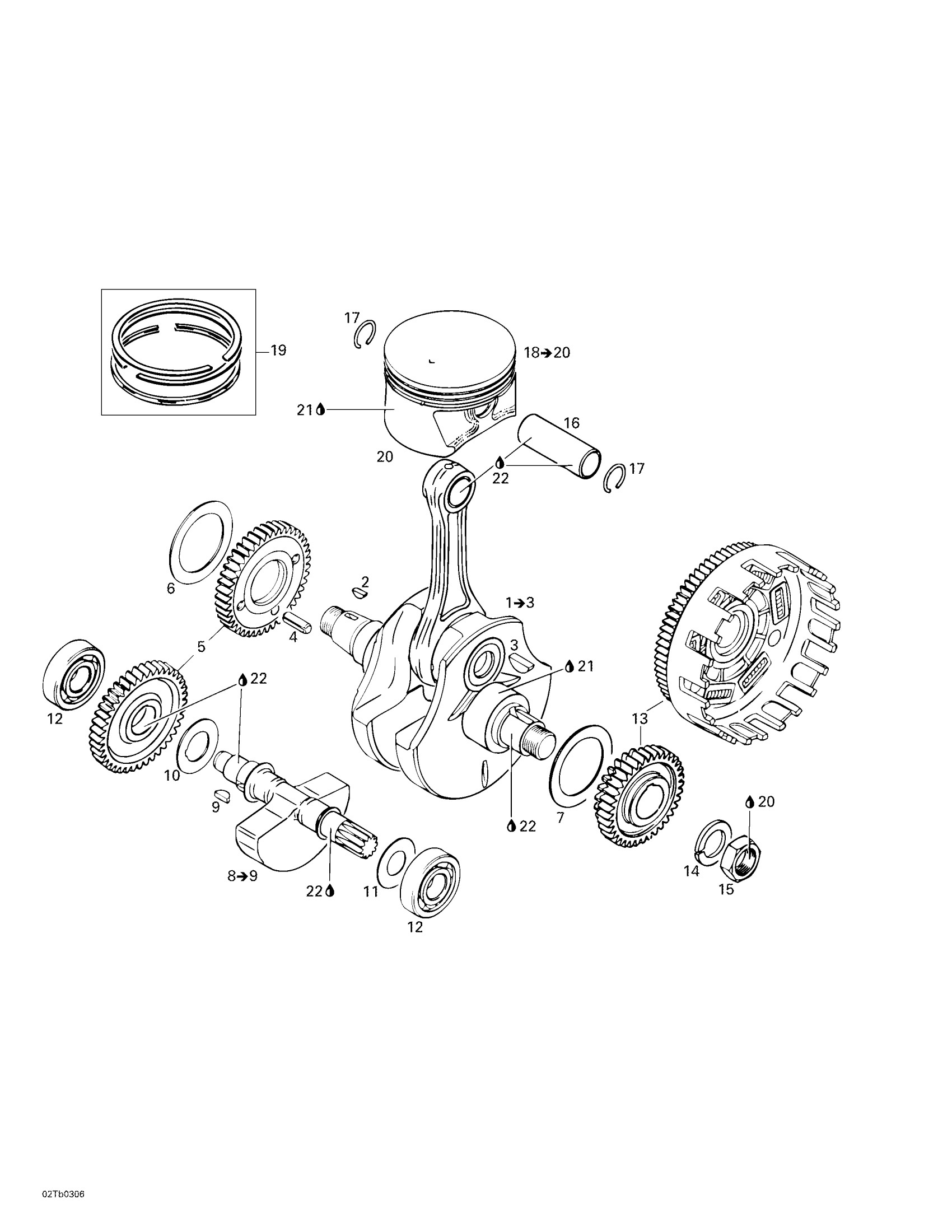

Can-Am DS 650, 2003 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 3

420295192

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.38

3

WOODRUFF KEY 6 X 9 - Call your local BRP dealership

420946015

Unavailable

4

Pin M8 X 24

732804009

Unavailable

5

BALANCE GEAR ASS'Y - Call your local BRP dealership

420294478

Unavailable

6

Shim 48/67/1

420627030

Unavailable

7

Shim 48/67/1,25"

420627031

Unavailable

SHIM 48/67/1,4 - Call your local BRP dealership

420627035

Unavailable

SHIM 48/67/1,5 - Call your local BRP dealership

420627032

Unavailable

Shim 48/67/1,75"

420627033

Unavailable

8

BALANCE SHAFT ASS'Y - Call your local BRP dealership | Includes 8 to 9

420220745

Unavailable

9

Woodruff Key 4 X 5

420246570

$3.38

10

THRUST WASHER 24,3/41/1 - Call your local BRP dealership

420227542

Unavailable

11

THRUST WASHER 20/41/0,8 - Call your local BRP dealership

420627070

Unavailable

THRUST WASHER 20/41/1 - Call your local BRP dealership

420627071

Unavailable

THRUST WASHER 20/41/1,2 - Call your local BRP dealership

420627072

Unavailable

THRUST WASHER 20/41/1,4 - Call your local BRP dealership

420627073

Unavailable

12

Ball Bearing 6304

420932096

Unavailable

13

PRIMARY DRIVE ASS'Y - Call your local BRP dealership

420296365

Unavailable

14

Lock Washer, 22 mm

420945759

$1.90

15

Hex. Nut, M22 X 1.5

420842239

$17.53

16

PISTON PIN - Call your local BRP dealership

420216201

Unavailable

17

CIRCLIP #22 - Call your local BRP dealership

420245435

Unavailable

18

PISTON ASS'Y - Call your local BRP dealership | Includes 18 to 19

420295185

Unavailable

19

Piston Ring Set

420295184

$79.99

20

Loctite 243, 10 ml

293800060

$21.49

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Was 420297616 Klueber Grease, 60g

219704464

$23.99
