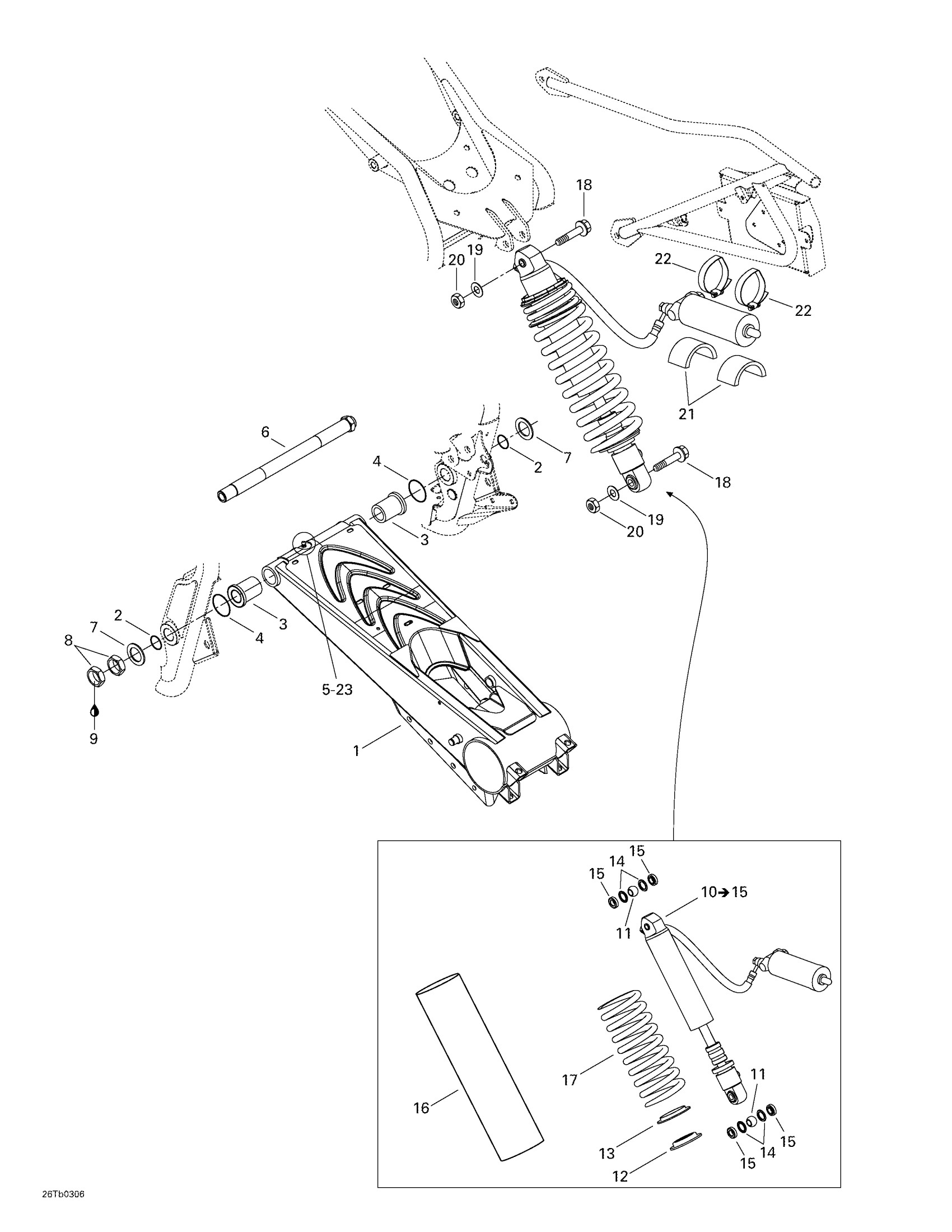

Can-Am DS 650 Baja, 2003 08- Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000134

Unavailable

2

O-RING - Call your local BRP dealership

293300074

Unavailable

3

Cushion

706000089

Unavailable

4

O-Ring

293300068

$7.65

5

Grease Fitting

408200700

$3.49

6

PIVOT BOLT - Call your local BRP dealership

706000102

Unavailable

7

WASHER - Call your local BRP dealership

293050003

Unavailable

8

JAM NUT M20 - Call your local BRP dealership

250100009

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Rear Shock | Includes 10 - 13.

706000148

Unavailable

11

Ball Joint

706000105

Unavailable

12

SPRING STOPPER - Call your local BRP dealership

706000061

Unavailable

13

SPRING GUIDE - Call your local BRP dealership

706000060

Unavailable

14

SEAL - Call your local BRP dealership

293250111

Unavailable

15

CUSHION - Call your local BRP dealership

706000103

Unavailable

16

PROTECTOR - Call your local BRP dealership | DS 650 X

706000166

Unavailable

17

Red Spring | DS 650.

706000199

Unavailable

Yellow Spring | DS 650 Baja.

706000242

Unavailable

18

SHOCK SCREW - Call your local BRP dealership

250000095

Unavailable

19

Washer

732900048

Unavailable

20

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

21

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

22

Norma Gear Clamp

293650118

$13.16

23

Synthetic Grease, 400 G

293550010

Unavailable
