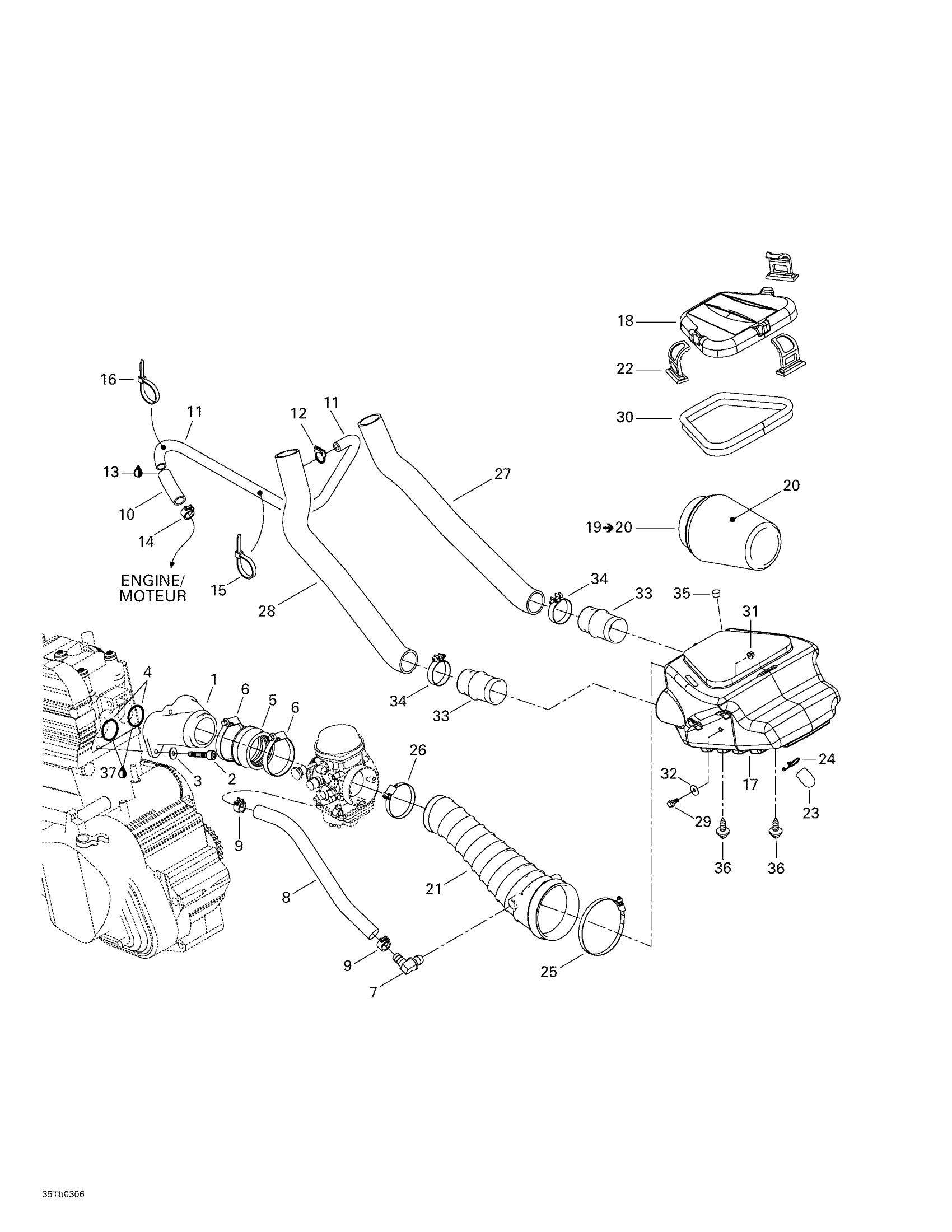

Can-Am DS 650 Baja, 2003 02- Air Intake System Diagram

#

Description
Price

1

Intake Adaptor

711267230

Unavailable

2

Socket Head Screw M6 X 25

205062544

$1.15

3

Flat Washer 6 mm

234061410

$1.36

4

O-Ring

293300059

$7.51

5

Carburator Flange 52 mm

420267240

$46.49

6

Norma Gear Clamp

293650090

$4.54

7

Elbow Fitting

414523600

$4.86

8

OIL LINE - Call your local BRP dealership

414644800

Unavailable

9

Spring Clamp

414655700

$0.72

10

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

11

Was 276000001 Hose 12.5 mm

219704394

$51.99

12

HOSE CLAMP - Call your local BRP dealership

293650119

Unavailable

13

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

14

Spring Clamp

414655700

$0.72

15

Tie-Rap 180 mm

414115200

$0.11

16

Tie Wrap 368 mm

293750008

$1.04

17

Air Silencer

707800021

Unavailable

18

Air Silencer Cover

707800022

Unavailable

19

Air Filter | Includes 3 To 4

707800023

Unavailable

20

Foam

707800074

Unavailable

21

Intake Adaptor

707800142

$62.99

22

COVER LATCH - Call your local BRP dealership

708200003

Unavailable

23

Drain Tube

707800080

$8.29

24

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

25

Norma Gear Clamp

514052983

$15.89

26

Norma Gear Clamp

293650118

$13.16

27

Vent Hose

707800093

Unavailable

28

Vent Hose

707800094

Unavailable

29

Hex. Flange Screw M6 X 20

207662044

$2.00

30

Neoprene Seal 3000Mm Long

219704371

$51.99

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Flat Washer

224060201

$1.26

33

DEFLECTOR - Call your local BRP dealership

707800038

Unavailable

34

GEMI CLAMP - Call your local BRP dealership

293650160

Unavailable

35

Cap

572051500

$5.89

36

Mount Dart

293730040

$1.04

37

Grease, Super Lube

293550030

$28.99
