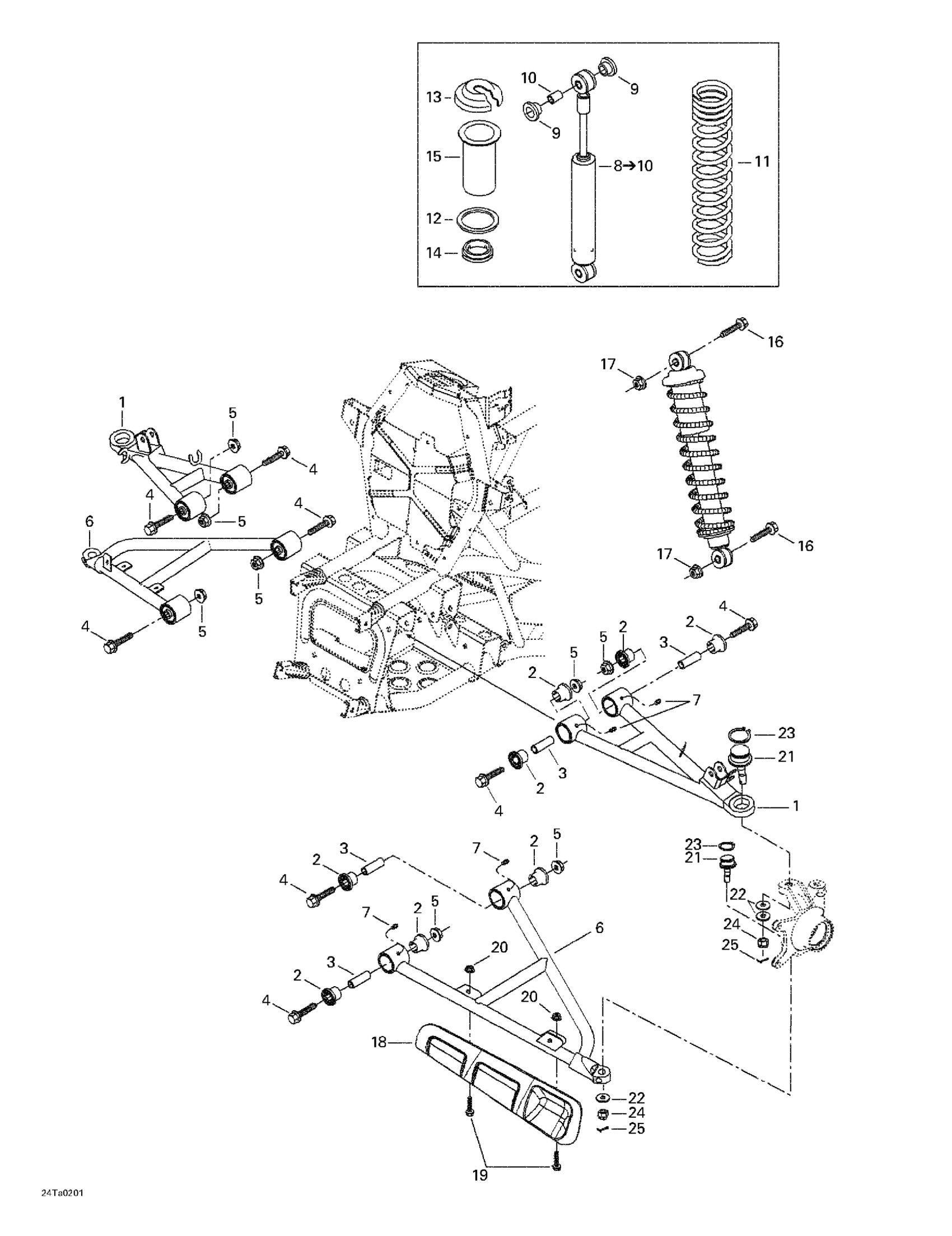

Can-Am Traxter XT, 2002 07- Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM - Call your local BRP dealership

706200187

Unavailable

LH upper arm

706200193

Unavailable

2

Bushing

706200181

$3.14

3

Sleeve

706201587

$3.79

4

Hex. Flange Screw M10 X 70

207607046

$2.96

5

Hex. Flange Elastic Nut M10

233201436

$2.11

6

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200196

Unavailable

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200200

Unavailable

7

Grease Fitting

408200700

$3.49

8

Front Shock | Includes 10 - 12.

706200137

Unavailable

9

CUSHION - Call your local BRP dealership

706200185

Unavailable

10

BUSHING - Call your local BRP dealership

706200186

Unavailable

11

FRONT SPRING - Call your local BRP dealership

706200006

Unavailable

12

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

13

Spring Stopper

706200881

$12.99

14

Spring seat

706000007

Unavailable

15

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

16

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

19

Hex. Flange Screw M6 X 16

207661644

$0.74

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Ball Joint

706200653

$44.99

22

Hardened Washer

503175400

Unavailable

23

Circlip 32 mm

293370009

$1.39

24

Hex. Castellated Nut M12

232221414

$3.17

25

Cotter Pin

211400017

$0.33
