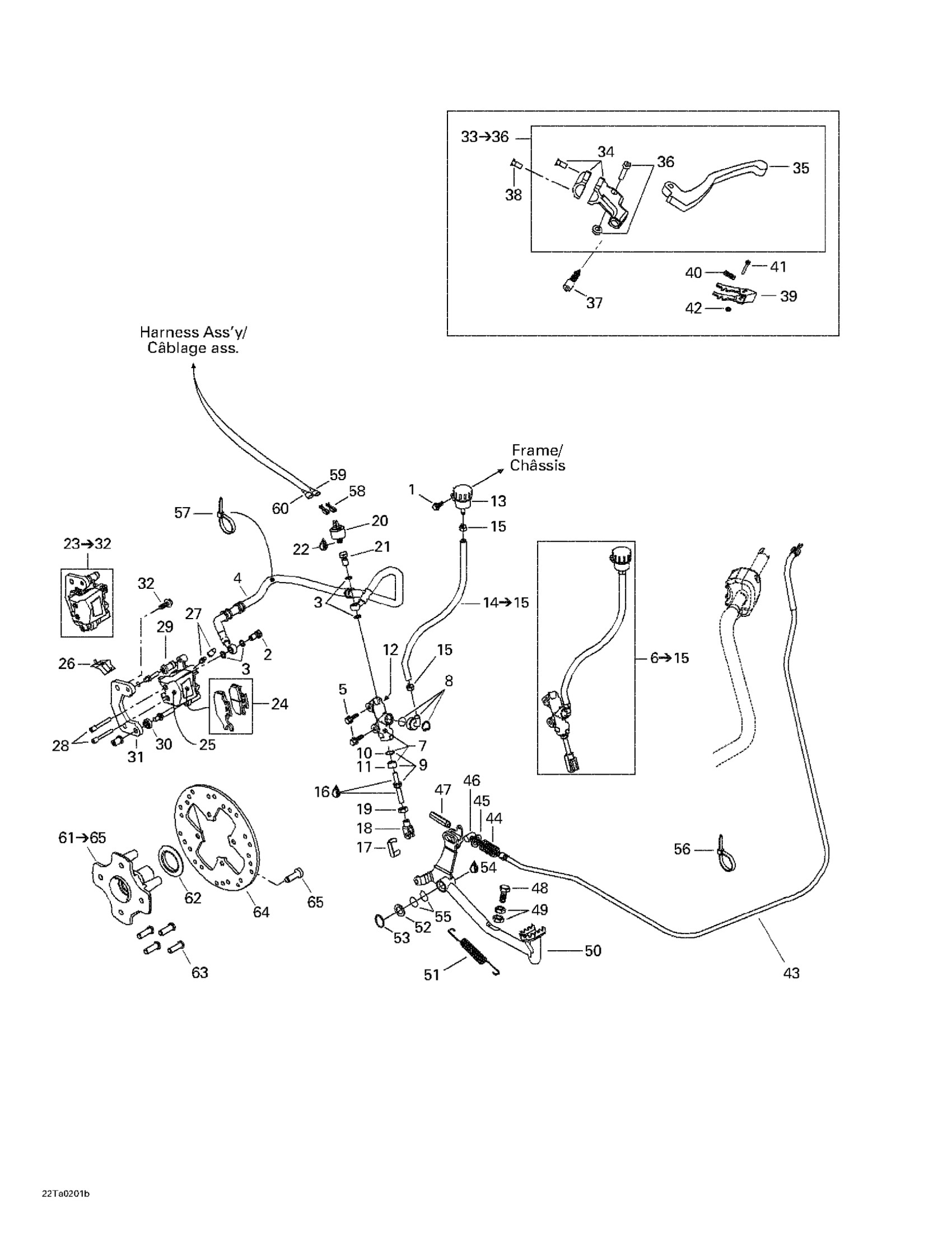

Can-Am Traxter XT, 2002 06- Hydraulic Rear Brake Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

210261650

$1.67

2

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

3

Washer

414920600

$1.90

4

BRAKE LINE - Call your local BRP dealership

705601392

Unavailable

5

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Piston Set

705600063

Unavailable

8

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

9

Rod Ass'y | Includes 45 - 47.

705600155

Unavailable

10

Circlip

705600068

Unavailable

11

Compression Boot

705600090

Unavailable

12

Master Cylinder

705600117

Unavailable

13

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

14

OIL HOUSING HOSE - Call your local BRP dealership

705600169

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Pin Kit

219702305

$34.99

18

Yoke

705600100

Unavailable

19

Hex. Nut M8

232081414

$0.72

20

Interrupteur *Brake Switch

710001345

$36.99

21

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

22

Was 293800013 Loctite 56765

219704454

$65.99

23

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

24

Brake Pad Kit

705600150

$51.99

25

Piston Set

705600078

$38.99

26

Spring

705600079

$15.81

27

Bleeding Screw

705600080

$16.87

28

Pin Set (2)

705600081

$20.49

29

Compression Boot

705600082

$10.06

30

Compression Boot

705600083

$10.06

31

Lining Support

705600149

Unavailable

32

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.29

33

Brake Handle | Includes 61 To 66

705600011

Unavailable

34

CLAMP KIT - Call your local BRP dealership

705600184

Unavailable

35

LEVER - Call your local BRP dealership

705600186

Unavailable

36

Pivot Kit

705600187

Unavailable

37

Cable Screw

250000030

Unavailable

38

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

39

Lock lever

705600224

Unavailable

40

SPRING - Call your local BRP dealership

705600225

Unavailable

41

Screw M3 X 22

208032291

Unavailable

42

Elastic Stop Nut M3

232531423

$0.55

43

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

44

SPRING - Call your local BRP dealership

705600144

Unavailable

45

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

46

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

47

NUT - Call your local BRP dealership

705600147

Unavailable

48

Hex. Screw M10 X 25

207102544

$1.37

49

Hex. Nut M10 X 1.5

232006414

$1.37

50

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

Unavailable

51

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

52

WASHER - Call your local BRP dealership

503107800

Unavailable

53

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

54

Synthetic Grease, 400 G

293550010

Unavailable

55

O-RING - Call your local BRP dealership

293300053

Unavailable

56

Tie-Rap 180 mm

414115200

$0.11

57

Tie Wrap 368 mm

293750008

$1.04

58

Female Terminal | DS 650 X

278001009

$3.19

59

Insulated Sheath

278000770

$7.90

60

Insulated Sheath

278001007

$3.58

61

Rear wheel hub | Includes 35 - 39.

705500256

Unavailable

62

WEAR RING - Call your local BRP dealership

705500100

Unavailable

63

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

64

Brake disc

705600167

Unavailable

65

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53
