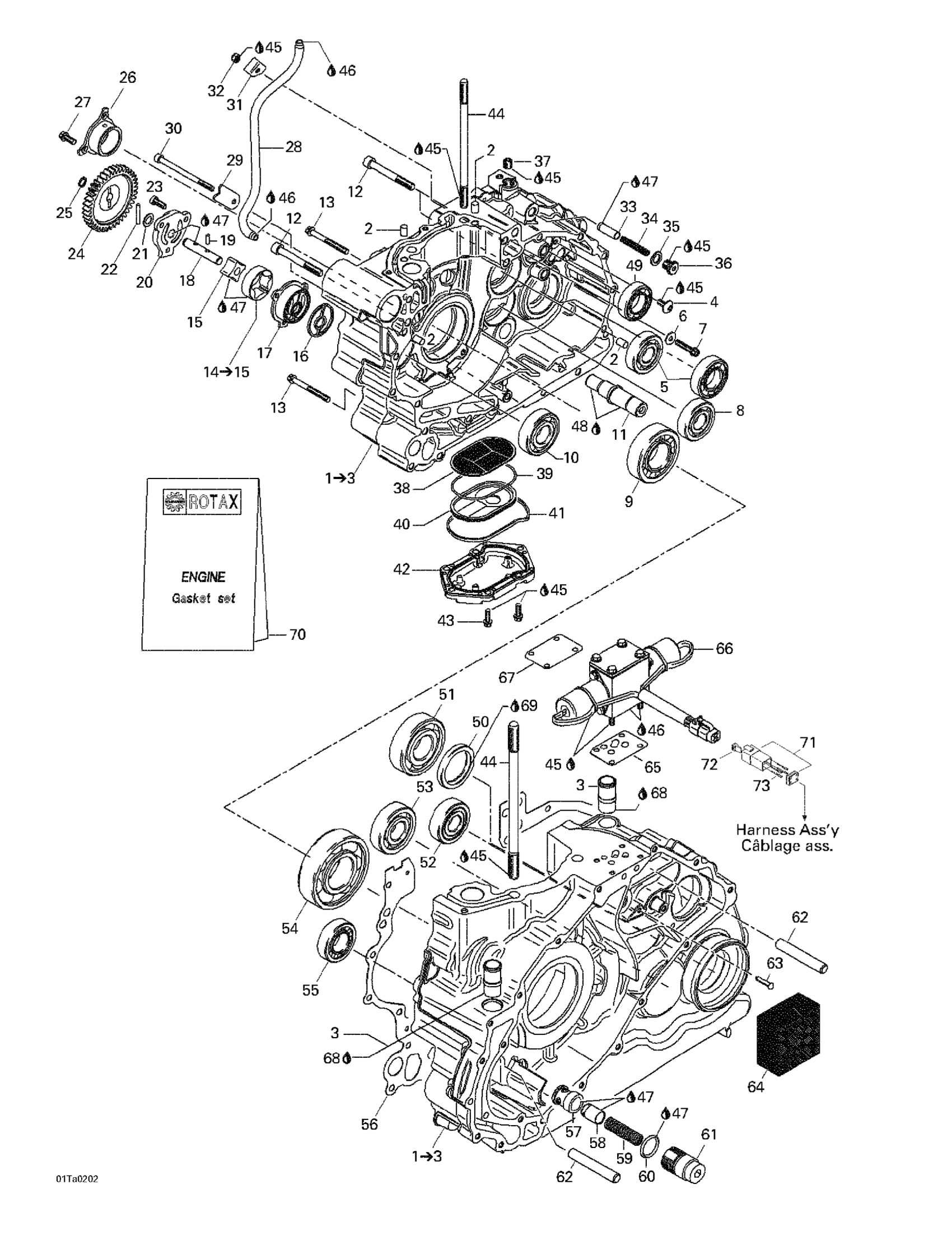

Can-Am Traxter XL, 7477, 2002 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711295881

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Tube

711224260

Unavailable

4

Flat Head Screw M6 x 16

711241531

Unavailable

5

Ball Bearing 6205

420232764

$25.99

6

Washer

420627400

$4.44

7

Hex. Flange Screw M6 x 30

711241941

Unavailable

8

Ball Bearing 6304E

290932095

Unavailable

9

Roller Bearing

711232490

Unavailable

10

Ball Bearing

711632200

Unavailable

11

Intermediate Gear Shaft

711220570

Unavailable

12

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420841991

Unavailable

13

Hex. Flange Screw M6 x 65

711640351

Unavailable

14

Oil Pump Rotor Ass'y | Includes 13 - 4.

711956275

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Rubber Ring

711650960

Unavailable

17

Ring Housing

711610140

Unavailable

18

Oil Pump Shaft

711220592

Unavailable

19

Needle Pin

420232731

$4.01

20

Oil Pump Cover

711211852

Unavailable

21

Thrust Washer

420827590

$4.01

22

NEEDLE PIN - Call your local BRP dealership

420232971

$4.29

23

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

Unavailable

24

Oil Pump Gear (40 Teeth)

711635030

Unavailable

25

Snap Ring

420245330

$1.79

26

Ring Housing

711610130

Unavailable

27

Hex. Flange Screw M6 x 16

711241751

Unavailable

28

Oil Pipe

711224622

Unavailable

29

Holding Strip

711627437

Unavailable

30

Socket Screw M6 x 90

711241481

Unavailable

31

Holding Strip

711627432

Unavailable

32

Elastic Stop Nut M6

232561414

$0.55

33

Piston

711256590

Unavailable

34

Compression Spring

711238020

Unavailable

35

Aluminum Sealing Ring

420250016

$5.39

36

Plug Screw M12 x 1,5

420241701

$12.63

37

Plug Screw

711840651

Unavailable

38

Oil Sieve

711256572

Unavailable

39

O-Ring

711931385

Unavailable

40

Oil Collector

711256652

Unavailable

41

RUBBER RING - Call your local BRP dealership

711650950

Unavailable

42

Oil Sieve Cover

711211941

Unavailable

43

Hex. Flange Screw M6 x 20

711241861

Unavailable

44

Stud M10 x 190

711241670

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Molykote G-N, 50 g

420297433

$26.99

49

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

50

Oil Seal

711650700

Unavailable

51

Ball Bearing

420932822

$30.49

52

Ball Bearing

420932816

$42.49

53

Ball Bearing 6304E

290932095

Unavailable

54

BALL BEARING - Call your local BRP dealership

420432120

Unavailable

55

Roller Bearing

711232280

Unavailable

56

Crankcase Gasket

711650422

Unavailable

57

Seat Valve Sleeve

711256602

Unavailable

58

Piston Valve

420256638

$22.99

59

Compression Spring | 7413/7414. 7415/7416. 7417/7418.

711938785

Unavailable

60

O-Ring

420250050

$10.43

61

Plug Screw M24

711640790

Unavailable

62

Needle Pin

420229475

$14.83

63

Groove Pin M4 x 20

711229170

Unavailable

64

Oil Separating Foam

711256720

Unavailable

65

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$11.49

66

Soleno‹d Valve

711256540

Unavailable

67

Gasket

420650636

$12.11

68

Sealant Loctite 648

219703000

$45.99

69

Grease, Super Lube

293550030

$28.99

70

Gasket Set Engine

711296372

Unavailable

71

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

72

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

73

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable
