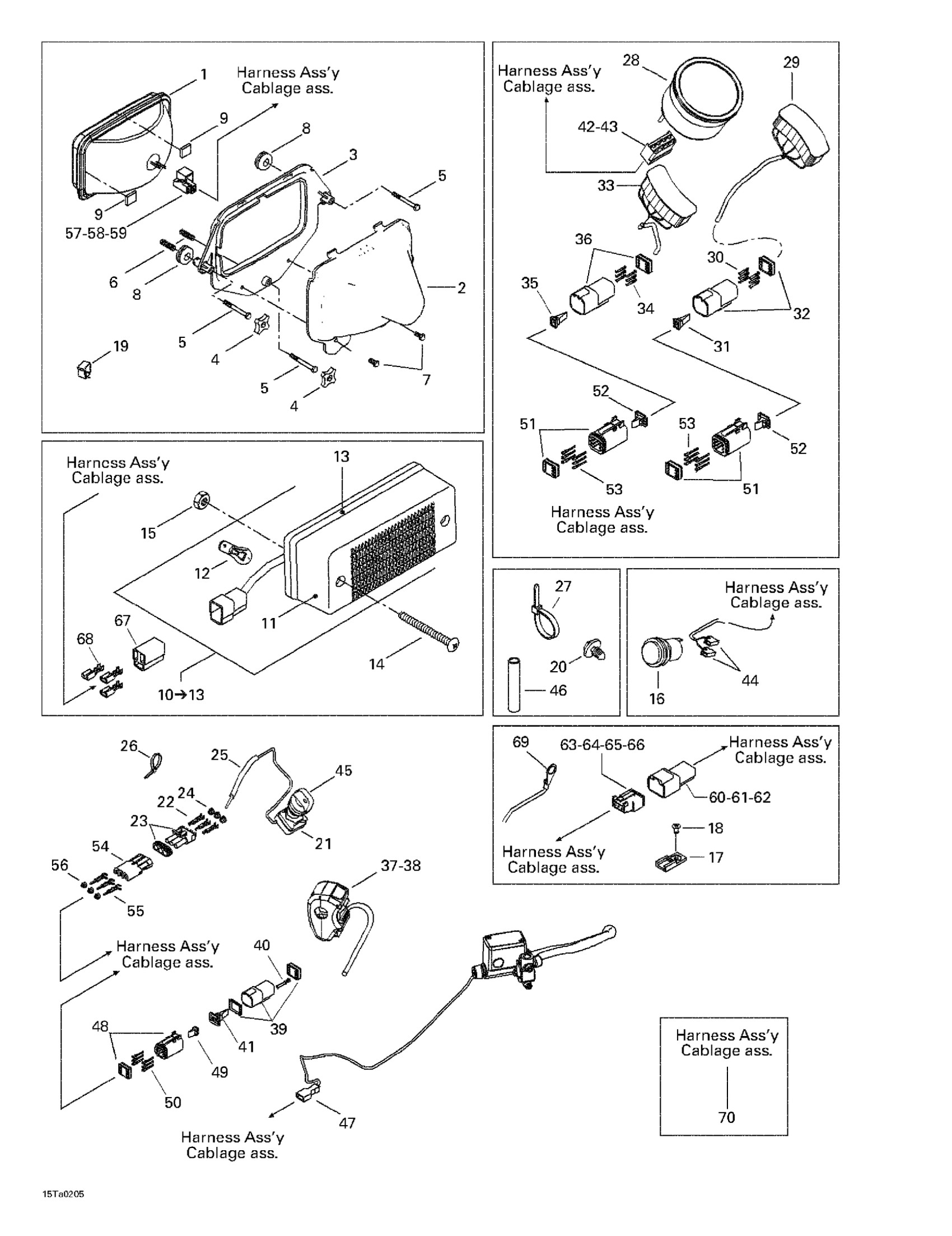

Can-Am Traxter Autoshift, 2002 10- Main Harness And Electrical Accessories Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

2

Protector

705000023

Unavailable

3

Head Lamp Support

705000474

Unavailable

4

Handle

572106600

$10.33

5

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

6

Spring

517168600

$7.39

7

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

8

Grommet

709000582

$4.69

9

Rubber Pad

293830088

Unavailable

10

Tail Light Housing

710000102

Unavailable

11

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

12

Bulb

520000758

$9.10

13

GASKET - Call your local BRP dealership

710000129

Unavailable

14

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Outlet Power Kit, 12 Volts

861507200

$36.99

17

Clip

270000141

$11.49

18

Pop Rivet 3/16"

390402400

$0.35

19

Clip

414227300

$1.67

20

Mount Dart

293730040

$1.04

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

22

Female Terminal

278000223

$3.19

23

Male Housing, 3 Circuits

278000273

$9.59

24

Wire Seal

278000218

$4.39

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

$1.25

27

Tie Wrap 142 mm

293750002

$1.25

27

Tie Wrap 368 mm

293750008

$1.04

27

Tie-Rap 180 mm

414115200

$0.11

28

Speedometer

710000198

Unavailable

29

RH Warning Lamp | Includes 29 - 32.

710000089

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

31

Male Lock, 6 Circuits

409014600

Unavailable

32

Male Terminal Housing, 6 Circuits

409015200

Unavailable

33

LH Warning Lamp

710000008

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal Housing, 6 Circuits

409015200

Unavailable

37

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

38

BACK COVER - Call your local BRP dealership

710000173

Unavailable

39

Male Terminal Housing, 6 Circuits

409015200

Unavailable

40

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

41

Male Lock, 6 Circuits

409014600

Unavailable

42

Female Housing (8 Circuits)

710000035

Unavailable

43

Female Terminal

710000036

Unavailable

44

Female Terminal

710000038

$4.55

45

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

45

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

46

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

46

Tubing 6 Mm 3000Mm Long

219704425

$13.75

46

Was 409901700 Tubing (9 mm)

219704399

$84.99

46

Was 409901800 Tubing (13 mm)

219704400

$14.49

46

Tubing 16 Mm 1000Mm Long

219704408

$7.49

46

Was 409901600 Tubing 19mm

219704398

$95.99

47

Female Terminal

710000082

$7.69

48

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

49

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

50

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

51

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

52

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

53

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

54

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

55

Male Terminal

409004300

$5.61

56

Wire Seal

278000218

$4.39

57

Female Terminal

710000027

Unavailable

58

Female Lock, 2 Circuits

710000028

Unavailable

59

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

Unavailable

60

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

61

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

62

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

63

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

64

Female Lock, 3 Circuits

515175248

Unavailable

65

PLUG - Call your local BRP dealership

515175303

Unavailable

66

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

67

Female Housing

409204300

Unavailable

68

Female Terminal

561503100

$2.41

69

Open Barrel Terminal

278001392

$4.79

70

Harness Ass'y (Not Shown)

710000200

Unavailable
