Description

Price

1

Main Harness

710005005

$949.99

2

Fuse Cover

710001026

$21.99

BD

Female Housing, 6 Circuits

710000081

$8.79

BD

Cap

710000080

$8.29

BD

Wire Seal

710000402

$4.55

BD

Female Terminal

409012100

$4.55

BN1

Terminal

710000913

$5.61

BN2

Open Barrel Terminal

278001392

$4.79

BP1

Open Barrel Terminal

278001392

$4.79

CC

Male Housing, 6 Circuits

710000849

$9.69

CC

Lock

710000848

$3.19

CC

Female Terminal

710000274

$9.59

CI

Terminal | Canada/Usa

710001635

$3.19

CI

Female Housing, 24 Circuits

515175801

$9.59

CI

Retainer Block

515175802

$11.49

CI

LOCK - Call your local BRP dealership

515175805

Unavailable

CI

Plug

515175812

$2.19

CI

BLOCK - Call your local BRP dealership

515175804

Unavailable

CI

Wire Seal

515175803

$2.99

CRD

Female Terminal

710001131

$8.89

CRD

Wire Seal

710000402

$4.55

CRG

Female Terminal

409012100

$4.55

CRG

Wire Seal

710000402

$4.55

D11

Female Terminal

409012100

$4.55

D2

Diode

409012700

$11.12

D5

Diode

409012700

$11.12

D6

Diode

409012700

$11.12

DB

Diode

409012700

$11.12

DB

Housing, 6 Circuits

278002896

$14.99

DB

Male Wedge, 6 Circuits

515175678

$5.39

DB

Sealing Cap

293000052

$3.19

DB

Female Terminal

278001665

$4.55

DC_1

Female Terminal

278000632

$2.09

DC_1

Female Terminal

710002398

$2.19

DC_2

Female Terminal

710002399

$2.40

DC_2

Female Terminal

710002398

$2.19

DC3

Female Terminal

710002399

$2.40

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Male Housing, 2 Circuits

710000667

$8.32

DC5

Female Terminal

515175231

$4.39

DC5

Clip

710000992

$4.29

DC5

Male Connector, 2 Circuits

278000220

$15.49

DC5

Female Housing, 2 Circuits

278000217

$9.59

DC5

Wire Seal

278001065

$7.69

DC5_1

Female Terminal

278000223

$3.19

DC5_1

Insulated Sheath

278001007

$3.58

DC6

Female Terminal

710000421

$6.11

DC6

Clip

710000992

$4.29

DC6

Male Connector, 2 Circuits

278000220

$15.49

DC6

Female Housing, 2 Circuits

278000217

$9.59

DC6

Wire Seal

278001065

$7.69

DPS1

Female Terminal

278000223

$3.19

DPS1

Housing

710001161

$11.12

DPS1

Lock

710001162

$3.19

DPS1

Cap

710001225

$9.19

DPS1

Cap

710001114

$18.49

DPS1

Wire Seal

710001163

$7.69

DPS2

Female Terminal

710001164

$8.89

DPS2

Fuse Holder Cap

278001326

$7.69

DPS2

Fuse Holder

278001987

$15.49

DPS3

Female Terminal

710000113

$6.99

DPS3

Housing

710001157

$17.59

DPS3

Lock

710001323

$7.55

DPS3

PLUG - Call your local BRP dealership

710001158

Unavailable

F11

Little Fuse, 5 Amperes

710000742

$8.79

F12

Little Fuse, 30 Amperes

710000747

$8.49

F14

Little Fuse, 20 Amperes

710000746

$8.49

F15

Little Fuse, 20 Amperes

710000746

$8.49

F3

Little Fuse, 5 Amperes

710000742

$8.79

F4

Fuse

710001613

$8.79

F5

Little Fuse, 5 Amperes

710000742

$8.79

F6

Little Fuse, 5 Amperes

710000742

$8.79

F7

Little Fuse, 5 Amperes

710000742

$8.79

F8

Little Fuse, 5 Amperes

710000742

$8.79

F9

Little Fuse, 5 Amperes

710000742

$8.79

FL-1

Fuse, 25 Amps

710002590

$19.49

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FP

Wire Seal

515176621

$7.49

FP

Female Terminal

278001014

$3.28

FRR

Female Terminal

710001340

$5.89

FRR

Female Housing, 2 Circuits

515175658

$16.18

FRR

Male Housing, 2 Circuits

710000667

$8.32

FRR

Female Terminal

515175231

$4.39

FT

Female Terminal

710003896

$2.19

FT

Clip Bracket Connector (edge)

409210100

$2.09

FT

Female Housing, 2 Circuits

278000217

$9.59

HIC1_F

Wire Seal

278000218

$4.39

HIC1_F

Male Terminal

409004300

$5.61

HIC1_F

Housing

710001226

$13.49

HIC1_F

LOCK - Call your local BRP dealership

710001221

$9.39

HIC1_F

Cap

710001225

$9.19

HIC1_F

Seal

710001233

$3.19

HIC1_F

Seal Wire

710001332

$3.28

HIC2_F

Terminal

710001229

$3.19

HIC2_F

Terminal

710001228

$3.28

HIC2_F

Housing

710001928

$16.86

HIC2_F

LOCK - Call your local BRP dealership

710001221

$9.39

HIC2_F

Cap

710001225

$9.19

HIC2_F

Seal

710001233

$3.19

HIC2_F

Seal Wire

710001332

$3.28

HIC8

Terminal

710001229

$3.19

HIC8

Terminal

710001228

$3.28

HICA

Insulated Sheath

278001007

$3.58

HICA

Female Terminal

710000421

$6.11

HICA

Housing

710001928

$16.86

HICA

LOCK - Call your local BRP dealership

710001221

$9.39

HICA

Cap

710001225

$9.19

HICA

Seal

710001233

$3.19

JP1

Terminal

710001229

$3.19

MG1

Male Terminal Housing, 6 Circuits

710000835

$17.04

MG1

Cap

710000080

$8.29

MG1

Wire Seal

710000402

$4.55

MG1

Seal

409012300

$4.54

MG2

Male Terminal

409011300

$5.93

MG2

Female Housing, 6 Circuits

710000081

$8.79

MG2

Cap

710000080

$8.29

MG2

Wire Seal

710000402

$4.55

MG2

Seal

409012300

$4.54

PDB

Female Terminal

409012100

$4.55

PDB

Housing

710002578

$3.19

PDB

Wire Seal

710001427

$2.09

PDH

Female Terminal

278002578

$1.04

PDH

Housing

710002278

$7.39

PDH

Lock

710002279

$4.39

PDH

Wire Seal

710001427

$2.09

PF1

Female Terminal

278002578

$1.04

PF1

Logo Fuse

710004719

$15.49

PF1

Foam

278002172

$5.89

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Cap

710000840

$5.89

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Female Terminal

515177009

$5.89

PF1

Female Terminal

515177012

$5.39

PF2

Clip

710000992

$4.29

PF2

Fuse Holder Cap

278001326

$7.69

PF2

Fuse Holder

278001325

$8.79

PGB

Female Terminal

710000113

$6.99

PGB

Housing

710002578

$3.19

PGB

Wire Seal

710001427

$2.09

PGH

Female Terminal

278002578

$1.04

PGH

Housing

710002278

$7.39

PGH

Lock

710002279

$4.39

PGH

Wire Seal

710001427

$2.09

PL

Female Terminal

278002578

$1.04

PL

Female Housing, 2 Circuits

515175658

$16.18

PRD

Female Terminal

710003896

$2.19

PRD

Connector, 3 Positions

710003167

$9.21

PRD

Seal

415128501

$1.89

PRG

Terminal

710002443

$1.14

PRG

Connector, 3 Positions

710003167

$9.21

PRG

Seal

415128501

$1.89

R1

Terminal

710002443

$1.14

R2

Relay, 30 AMP

515176774

$21.99

R3

Relay

715900824

$21.99

R4

Relay, 30 AMP

515176774

$21.99

R5

Relay

715900824

$21.99

R8

Relay

715900824

$21.99

RD1

Relay

715900824

$21.99

RD1

Female Housing, 3 Circuits

710000879

$25.99

RD1

Cap

710000882

$11.49

RD1

Seal

710001932

$3.27

SS1

Terminal

710001934

$5.50

SS2

Female Terminal

409010300

$4.39

SW1

Female Terminal

409010300

$4.39

SW1

Insulated Sheath

278001007

$3.58

SW2

Female Terminal

710000421

$6.11

SW2

Insulated Sheath

278001008

$3.28

SW4

Female Terminal

278002261

$7.55

SWW

Open Barrel

278000992

$2.21

SWW

Male Housing, 3 Circuits

278000273

$9.59

SWW

Wire Seal

278001065

$7.69

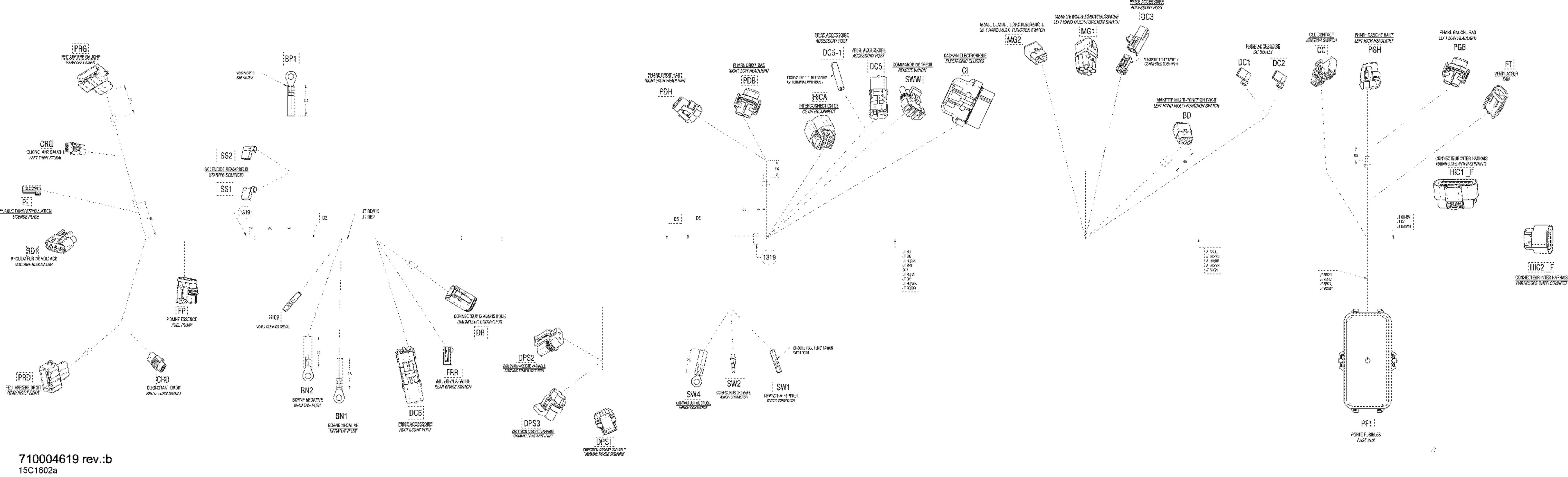

Can-Am 009 - Outlander - 1000 - PRO Package 0003UGA00 0003UGB00 10- Electrical Harness - Main Diagram
