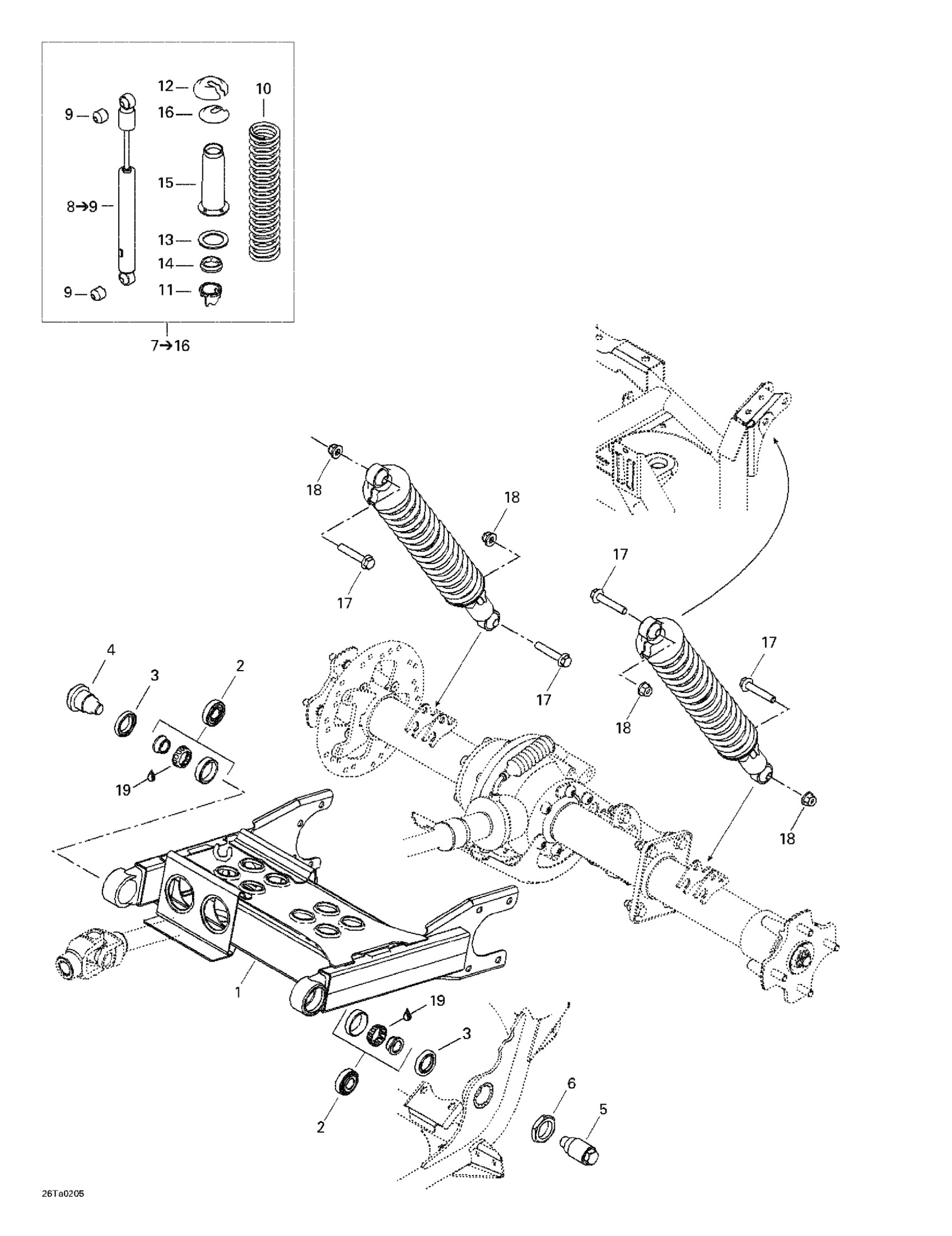

Can-Am Traxter Autoshift, 2002 08- Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000106

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000009

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

Unavailable

6

HEX. JAM NUT - Call your local BRP dealership

706000006

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Rear Shock | Includes 11 - 12.

706000124

Unavailable

9

UPPER BUSHING - Call your local BRP dealership

706000146

Unavailable

10

REAR SPRING - Call your local BRP dealership | 7415/7416. 7417/7418.

706000068

Unavailable

11

ADJUSTER RING - Call your local BRP dealership

706000073

Unavailable

12

Spring Stopper

706200881

$12.99

13

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

14

Spring seat

706000007

Unavailable

15

Protector

706000032

Unavailable

16

Cap

706200785

$4.69

17

Hex. Flange Screw M10 X 55

207605544

$3.38

18

Hex. Flange Elastic Nut M10

233201414

$1.58

19

Synthetic Grease, 400 G

293550010

Unavailable
