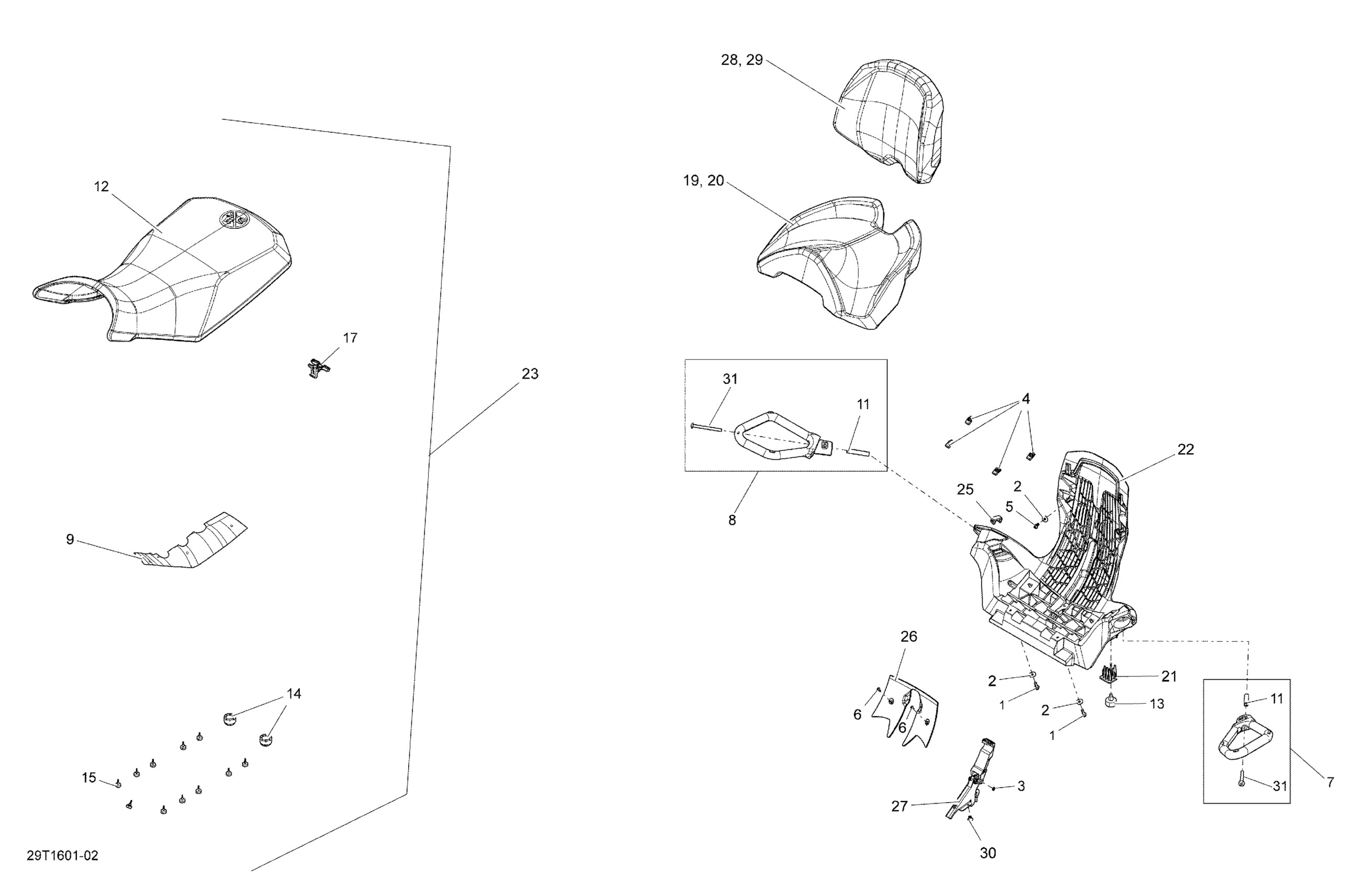

Can-Am 009 - Outlander - 1000 - PRO Package 0003UGA00 0003UGB00 09- Seat - All Models Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

2

Flat Washer

224061201

$1.37

3

Flat Washer M5

234051410

$0.53

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Oval Head Torx Screw K60 X 16

250000546

$2.11

6

Torx Truss Screw K40 X 12

250000577

$2.11

7

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

8

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

9

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

11

Sleeve

705009248

$14.99

11

Sleeve

705006129

$14.99

12

Black, Seat Cover

708000724

$77.49

12

Seat Cover | OUT-MAX Black

708001972

$179.99

12

Seat Cover | Package XMR Red

708001979

$96.49

12

Seat Cover | Package-XMR Digital Camo

708001576

$96.49

13

Rubber Stopper

708000758

$12.99

14

Bumper Rubber

708000760

$10.49

15

Rubber Stopper

708000759

$4.19

17

Latch

708000909

$6.29

19

Rear Seat

708002087

$234.99

20

Rear Seat Cover

708001582

$150.49

21

Seat Support

708001483

$2.99

22

Seat Base

708002574

$249.99

23

Seat Ass'y | Includes 1 to 4

708002491

$349.99

23

ASSEMBLY SEAT - Call your local BRP dealership | Package-XTP

708002150

Unavailable

23

Seat Ass'y | Package PRO

708002493

$439.99

23

Seat Ass'y | Package XMR Red

708002494

$449.99

23

ASSEMBLY SEAT - Call your local BRP dealership | Package XMR Gulfstream Blue

708002153

Unavailable

23

Seat Ass'y | Package-XMR Digital Camo

708002149

$439.99

25

Insert

708001511

$4.29

26

Cap

708001512

$13.99

27

Latch

708001532

$67.99

28

Back Rest

708002083

$519.99

29

BACK REST COVER - Call your local BRP dealership | Package-LTD

708001848

Unavailable

30

Pop Rivet 3/16”

293150108

$1.19

31

Torx Truss M8 X 90

250000806

$7.51
