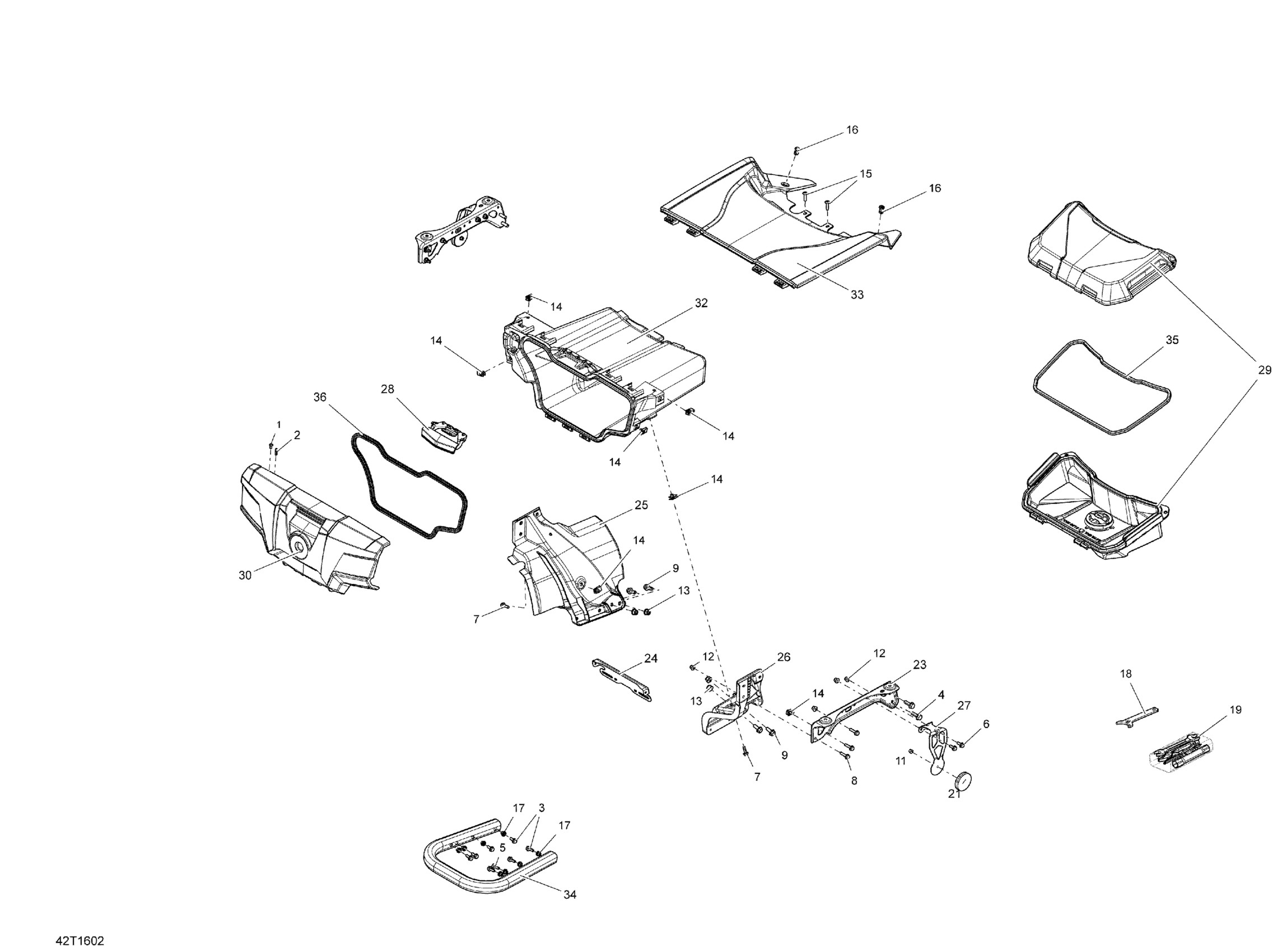

Can-Am 009 - Outlander - 1000 - PRO Package 0003UGA00 0003UGB00 09- Rear Cargo Box - All Models Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.43

2

Socket Set Screw M5 X 20 | Europe

206252044

$1.48

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

5

Hex. Flange Screw M6 X 16

207661634

$2.11

6

Hex. Flange Screw M6 X 16

207661644

$0.74

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Hex. Flange Screw M8 X 20

207682044

$1.15

11

Flange Elastic Nut M5

233251434

$2.00

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Panel Nut M6 X 1.0

250100198

$2.11

15

Torx Truss Screw M6 X 25

250000807

$2.11

16

Tuflok Plastic Rivet

293150230

$1.47

17

Threaded Insert M6 X 1.0

250100242

Unavailable

18

Adjustment Wrench

529000035

$2.09

19

Tool Kit

704700168

$40.99

21

Red Reflector

705011221

$14.49

23

LH Support

705004563

$34.99

23

RH Support

705004564

$34.99

24

Plate Support

705004806

$13.99

25

LH Cargo Support

705006997

$55.99

26

RH Cargo Support

705006998

$55.99

27

Reflector Support | Except Europe

705202576

$9.29

28

Handle Latch

708201250

$14.49

29

Box Ass'y

708200408

$82.99

30

Rear Panel

708300150

$38.99

32

Rear Storage Box

708300674

$93.99

33

Rear Storage Box Cover

708301212

$51.99

34

Rear Bumper Ass'y

715001564

$55.99

35

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

36

Was 293200163 Neoprene Seal

219704369

$29.99
