Description

Price

1

Countershaft

711220487

Unavailable

2

Main Shaft Ass'y

711220509

Unavailable

3

Sliding Gear

711634890

Unavailable

4

Rear Output Shaft

711220497

Unavailable

5

Output Gear (28 Teeth)

711634925

Unavailable

6

Front Output Shaft

711220522

Unavailable

7

THRUST WASHER - Call your local BRP dealership

420227440

Unavailable

8

Needle Cage

711632230

Unavailable

9

Stop Washer

711244270

Unavailable

10

Screw M6 X 20

420941436

$3.17

11

CIRCLIP - Call your local BRP dealership

420945870

Unavailable

12

O-Ring

420430373

$3.17

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Molykote G-N, 50 g

420297433

$26.99

16

Was 420297616 Klueber Grease, 60g

219704464

$23.99

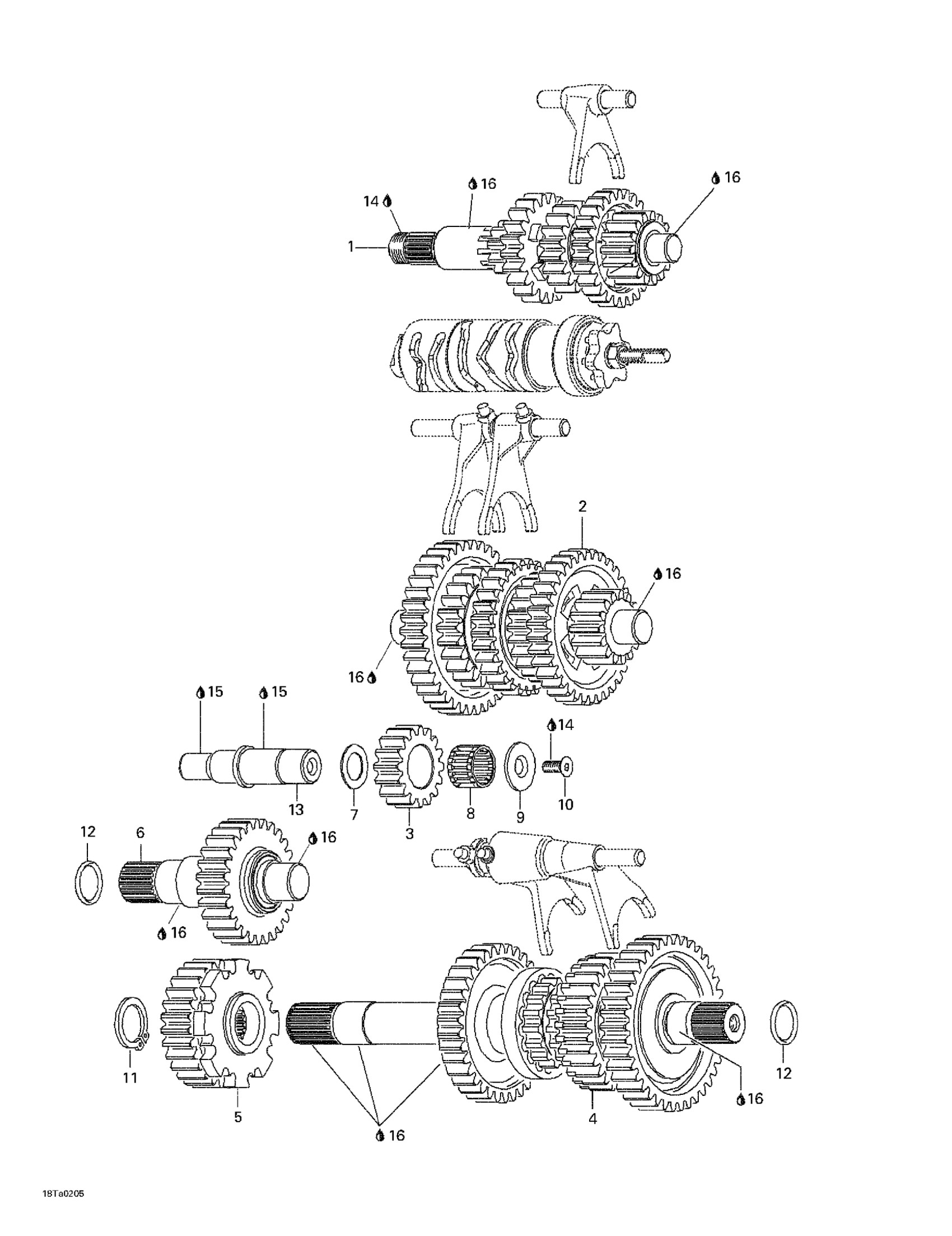

Can-Am Traxter Autoshift, 2002 05- Transmission Diagram

Countershaft

Main Shaft Ass'y

Sliding Gear

Rear Output Shaft

Output Gear (28 Teeth)

Front Output Shaft

THRUST WASHER - Call your local BRP dealership

Needle Cage

Stop Washer

Screw M6 X 20

CIRCLIP - Call your local BRP dealership

O-Ring

Not Available As Spare Part - Friction Washer

Loctite 243, 10 ml

Molykote G-N, 50 g

Was 420297616 Klueber Grease, 60g
