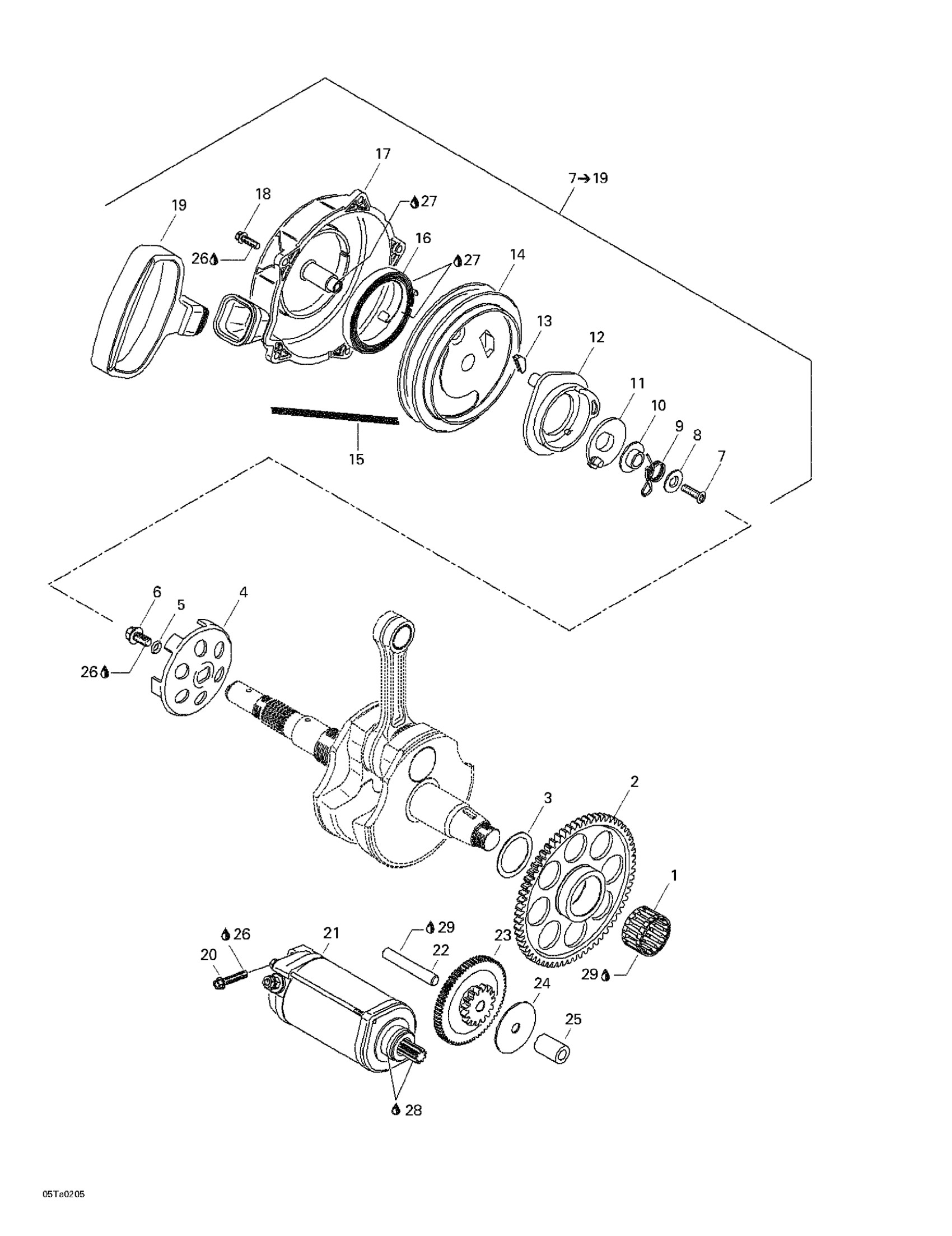

Can-Am Traxter Autoshift, 2002 04- Rewind Starter, Electric Starter Diagram

#

Description
Price

1

Needle Cage

711632190

Unavailable

2

Ring Gear (65 Teeth)

711634941

Unavailable

3

Thrust Washer

711244290

Unavailable

4

Starting Pulley

420852501

$29.49

5

O Ring

711650710

Unavailable

6

Hex. Flange Screw M8 x 20

711241720

Unavailable

7

Rewind Starter Ass'y | Includes 7 - 19.

711296150

Unavailable

7

Screw Plastite M6 x 20

711241730

Unavailable

8

Flat Washer

420244320

$7.73

9

Locking Spring

420938989

$20.49

10

STAGE SLEEVE - Call your local BRP dealership

420847927

Unavailable

11

Lock Pawl

420852306

$17.05

12

Pawl

420852299

$24.99

13

Key Clamp

420852070

$4.23

14

Rope Sheave

420852283

$62.49

15

Was 412500100 Rope-Starter

219704403

$158.99

16

Rewind Spring

420939115

$30.49

17

Starter Rope Housing

420610930

$58.49

18

Hex. Flange Screw M6 x 20

711241861

Unavailable

19

Starting Grip

711852515

Unavailable

20

Hex. Flange Screw M6 x 30

711241941

Unavailable

21

Electric Starter Ass'y

711296125

Unavailable

21

BRUSH KIT - Call your local BRP dealership

420266295

Unavailable

21

O-Ring

420250140

$8.57

21

Oil Seal

420250130

$17.59

22

Needle Pin

420229475

$14.83

23

Double Gear 15/67 Teeth

711634970

Unavailable

24

Thrust Washer

711227620

Unavailable

25

Spacer

711847485

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Molykote PG 54, 10 g

420899763

$21.99

28

Was 420297616 Klueber Grease, 60g

219704464

$23.99

29

Not Available As Spare Part - Friction Washer

Unavailable
