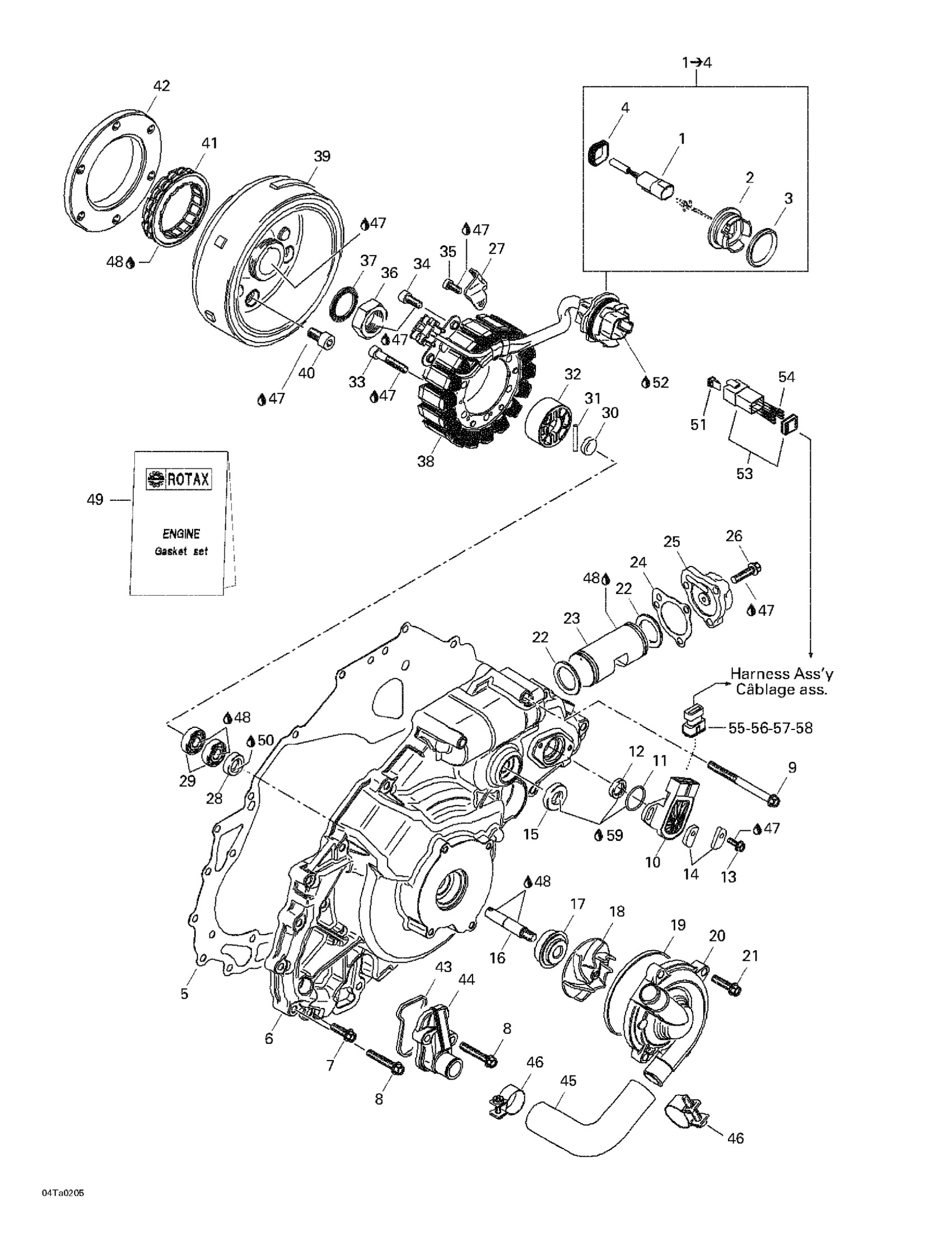

Can-Am Traxter Autoshift, 2002 03- Ignition And Water Pump Diagram

#

Description
Price

1

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

1

Male Terminal Housing, 6 Circuits

710001539

$19.99

2

Adaptor

270000138

Unavailable

3

Gasket

293300033

Unavailable

4

Gasket

293200055`

Unavailable

5

Ignition Cover Gasket

711650603

Unavailable

6

Ignition Cover

711211821

Unavailable

7

Hex. Flange Screw M6 x 20

711241861

Unavailable

8

Hex. Flange Screw M6 x 35

711941126

Unavailable

9

Hex. Flange Screw M6 x 70

711940576

Unavailable

10

POTENTIOMETER, TRANSMISSION - Call your local BRP dealership | Item 7 Not included

420265611

$134.99

11

O Ring

711931390

Unavailable

12

Oil Seal

711230870

Unavailable

13

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

14

Reinforcement

711224630

Unavailable

15

OIL SEAL - Call your local BRP dealership

420950400

Unavailable

16

Water Pump Shaft

711220560

Unavailable

17

Rotary Seal

420650370

$43.49

18

Water Impeller

711222540

Unavailable

19

Rubber Ring

711650570

Unavailable

20

Water Pump Housing

711222550

Unavailable

21

Hex. Screw M6 x 25

711241911

Unavailable

22

K Grooved Ring

711650660

Unavailable

23

Hydraulic Piston

711257140

Unavailable

24

Hydraulic Cover Gasket

711650640

Unavailable

25

Hydraulic Cover

711211950

Unavailable

26

Hex. Screw M6 x 25

711241911

Unavailable

27

Cable Clamp

711251180

Unavailable

28

Oil Seal

711250080

Unavailable

29

Ball Bearing

711632170

Unavailable

30

Distance Sleeve

711247030

Unavailable

31

Needle Pin

711932885

Unavailable

32

Pawl

711659190

Unavailable

33

Hex. Flange Screw M6 x 35

711941126

Unavailable

34

Hex. Flange Screw M6 x 16

711241751

Unavailable

35

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

36

Nut M22

711242875

Unavailable

37

Washer 22 mm

711245875

Unavailable

38

Magneto Ass'y | Includes 38 - 42.

711296107

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

41

Sprag Clutch

420659117

$349.99

42

Clutch Sprag Housing

420659129

$144.99

43

Sealing Ring

711650940

Unavailable

44

Inlet Fitting

711222620

Unavailable

45

Profile Tube

711222630

Unavailable

46

Gear Clamp

711251222

Unavailable

47

Loctite 243, 10 ml

293800060

$21.49

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Gasket Set Engine

711296372

Unavailable

50

Dow Corning 111, 150 g

413707000

$59.99

51

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

52

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

53

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

54

Female Terminal

278000632

$2.09

55

Female Terminal Housing, 4 Circ.

710000032

Unavailable

56

Cap

710000049

Unavailable

57

WIRE SEAL - Call your local BRP dealership

710000050

Unavailable

58

Female Terminal

710000051

Unavailable

59

Grease, Super Lube

293550030

$28.99
