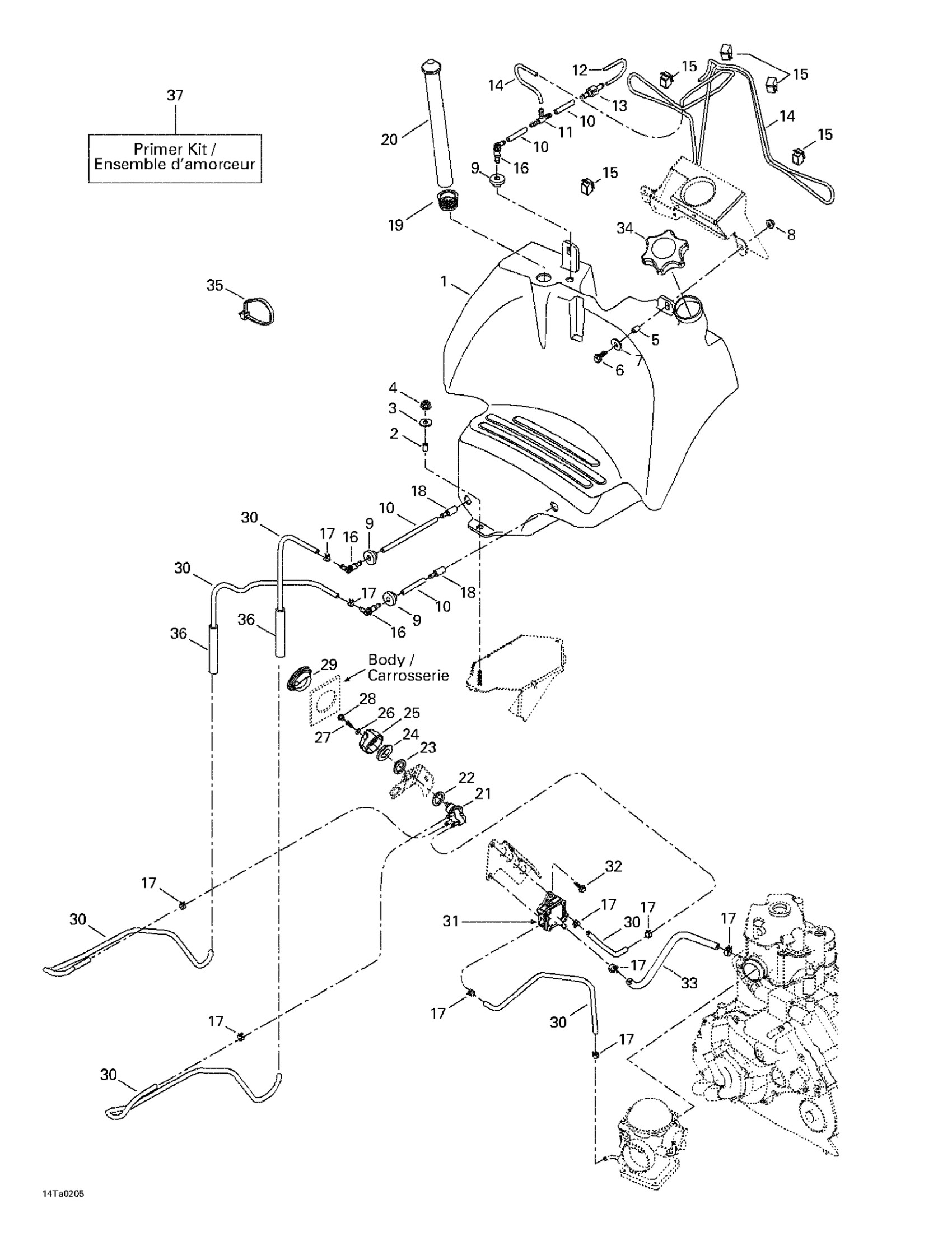

Can-Am Traxter Autoshift, 2002 02- Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000025

Unavailable

2

Bushing

293900028

$12.71

3

Flat Washer 8 mm

234082410

$1.47

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Bushing | DS 650 X

293900104

$5.50

6

Hex. Flange Screw M6 X 25

207662544

$0.64

7

Flat Washer

224061201

$1.37

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Grommet

570045500

$6.69

10

Polyurethane Hose 10000Mm Long

219704410

$56.99

11

T-fitting

414222500

$1.69

12

VENT HOSE - Call your local BRP dealership

709000029

Unavailable

13

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

14

VENT HOSE - Call your local BRP dealership

709000031

Unavailable

15

Clip

414227300

$1.67

16

Elbow Male Connector

414580600

$4.23

17

Spring Clamp

414415200

$0.88

18

Fuel Filter

414865700

$10.99

19

Grommet

293720058

$11.99

20

Fuel gauge

709000033

Unavailable

21

Fuel Valve

275500098

$43.99

22

GASKET - Call your local BRP dealership

293250004

Unavailable

23

Washer

250200015

Unavailable

24

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

25

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

26

Flat Washer 4 mm

234040600

$0.55

27

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

28

Black, Cap

275500241

$3.49

29

Fuel Valve Grommet

709000005

Unavailable

30

Hose

219704549

$50.99

31

FUEL PUMP - Call your local BRP dealership

707200000

Unavailable

32

Hex. Flange Screw M6 X 10

210261040

$1.48

33

HOSE - Call your local BRP dealership

709000024

Unavailable

34

Fuel Tank Cap

513033025

$24.49

35

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

36

Was 409901800 Tubing (13 mm)

219704400

$14.49

37

Primer Kit

703500045

Unavailable
