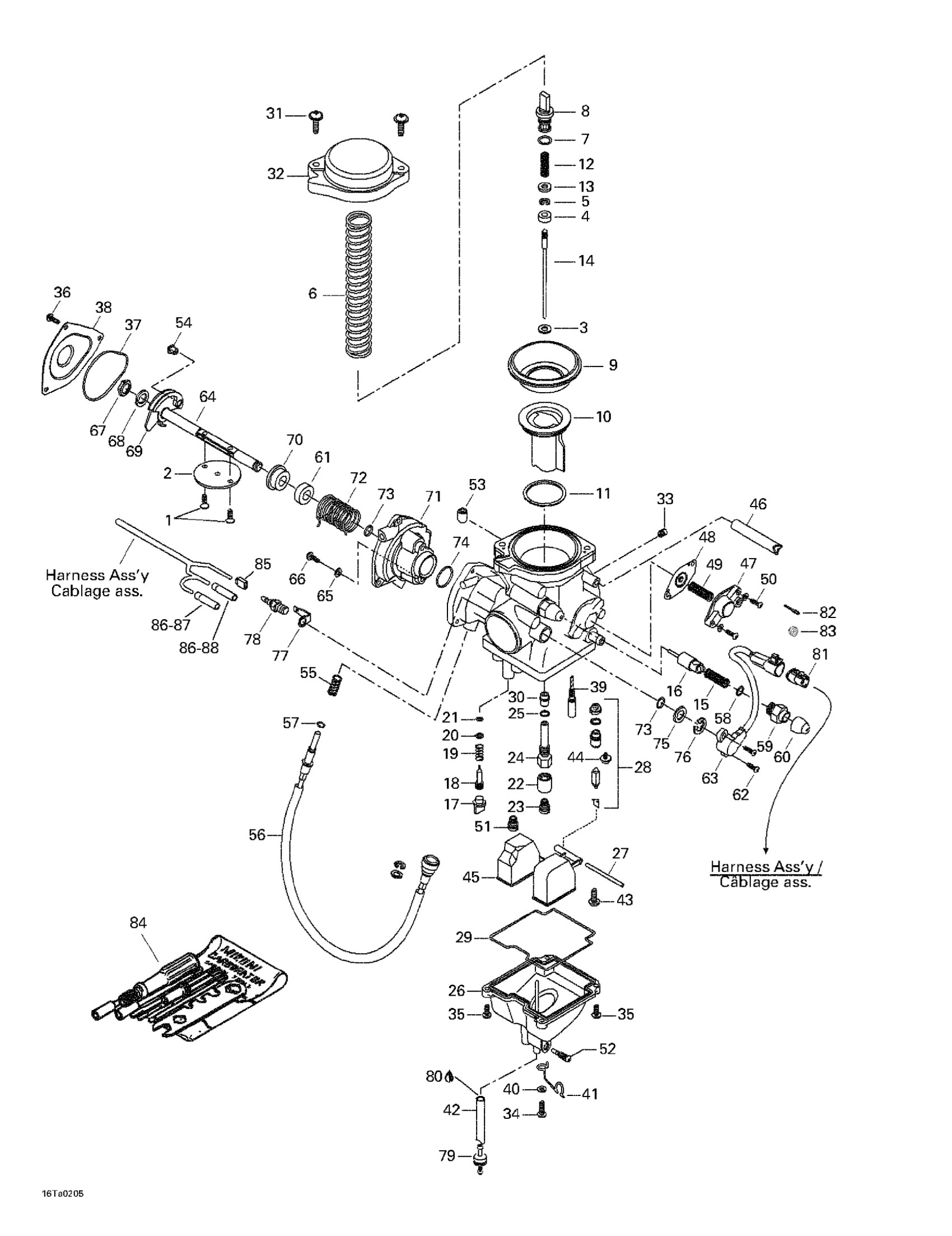

Can-Am Traxter Autoshift, 2002 02- Carburetor Diagram

#

Description
Price

1

Carburetor BSR33-28 | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

707200158

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

WASHER - Call your local BRP dealership

707200064

Unavailable

4

RING - Call your local BRP dealership

707200065

Unavailable

5

E-Ring

404152200

$4.14

6

Spring

707200066

Unavailable

7

O-RING - Call your local BRP dealership

270500144

Unavailable

8

HOLDER - Call your local BRP dealership

707200067

Unavailable

9

DIAPHRAGM - Call your local BRP dealership

707200068

Unavailable

10

Piston Valve

707200069

Unavailable

11

Ring

707200070

Unavailable

12

SPRING - Call your local BRP dealership

707200071

Unavailable

13

WASHER - Call your local BRP dealership

707200072

Unavailable

14

Needle J8-5Fiy03-52

707200167

Unavailable

15

SPRING - Call your local BRP dealership

707200144

Unavailable

16

Plunger Ass'y

707200170

Unavailable

17

CAP - Call your local BRP dealership

707200004

Unavailable

18

ADJUSTER - Call your local BRP dealership

707200077

Unavailable

19

Spring

707200078

Unavailable

20

WASHER - Call your local BRP dealership

707200018

Unavailable

21

O-RING - Call your local BRP dealership

404139900

Unavailable

22

RING - Call your local BRP dealership

707200079

Unavailable

23

MAIN JET 140.0 - Call your local BRP dealership

270500251

Unavailable

24

Jet Holder

707200080

Unavailable

25

O-RING - Call your local BRP dealership

270500119

Unavailable

26

Float Body Ass'y

707200081

Unavailable

27

Pin

404123400

Unavailable

28

Needle Valve 1.0

707200082

$32.99

29

O-Ring

707200083

$17.57

30

Needle Jet

707200084

Unavailable

31

SCREW - Call your local BRP dealership

707200085

Unavailable

32

DIAPHRAGM COVER - Call your local BRP dealership

707200086

Unavailable

33

Pilot Jet 60.0

707200087

Unavailable

34

Screw

404138700

$4.14

35

Screw

707200153

Unavailable

36

SCREW - Call your local BRP dealership

707200091

Unavailable

37

O-RING - Call your local BRP dealership

707200092

Unavailable

38

COVER - Call your local BRP dealership

707200093

Unavailable

39

Pilot Jet 35.0

707200168

Unavailable

40

Washer

707200101

Unavailable

41

Clip

707200102

Unavailable

42

Hose

707200041

Unavailable

43

SCREW - Call your local BRP dealership

404138600

Unavailable

44

SCREW - Call your local BRP dealership

404161861

$3.89

45

FLOAT ASS?Y - Call your local BRP dealership

707200103

Unavailable

46

Hose

707200104

Unavailable

47

Cover Ass’y

707200105

Unavailable

48

DIAPHRAGM ASS?Y - Call your local BRP dealership

707200106

Unavailable

49

Richer Spring

707200160

Unavailable

50

SCREW - Call your local BRP dealership

404901400

Unavailable

51

Main Jet 50.0

707200152

Unavailable

52

SCREW - Call your local BRP dealership

707200024

Unavailable

53

CAP - Call your local BRP dealership

404154900

Unavailable

54

CABLE GUIDE - Call your local BRP dealership

707200058

Unavailable

55

Spring

404101700

$4.14

56

ADJUSTER CABLE - Call your local BRP dealership

707200146

Unavailable

57

WASHER - Call your local BRP dealership

707200141

Unavailable

58

O-Ring

404140200

Unavailable

59

Holder Guide

707200009

Unavailable

60

CAP - Call your local BRP dealership

707200010

Unavailable

61

Ring

707200154

Unavailable

62

Screw

707200155

Unavailable

63

Sensor Ass'y

707200156

Unavailable

64

Not Available As Spare Part - Friction Washer

Unavailable

65

Not Available As Spare Part - Friction Washer

Unavailable

66

Not Available As Spare Part - Friction Washer

Unavailable

67

Not Available As Spare Part - Friction Washer

Unavailable

68

Not Available As Spare Part - Friction Washer

Unavailable

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Not Available As Spare Part - Friction Washer

Unavailable

71

Not Available As Spare Part - Friction Washer

Unavailable

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Not Available As Spare Part - Friction Washer

Unavailable

74

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Not Available As Spare Part - Friction Washer

Unavailable

77

TERMINAL - Call your local BRP dealership

707200164

Unavailable

78

HEATER ELEMENT - Call your local BRP dealership

707200163

Unavailable

79

Check Valve

275500398

$10.99

80

Glue Tube, Loctite 454, 20 G

413708300

$60.99

81

Female Terminal Housing, 3 Circ.

710000153

$9.95

82

Female Terminal

409012100

$4.55

83

Seal

409012300

$4.54

84

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

85

Female Terminal

409010700

$5.39

86

Female Terminal | DS 650 X

278001009

$3.19

87

Insulated Sheath

278000770

$7.90

88

Insulated Sheath

278001007

$3.58
