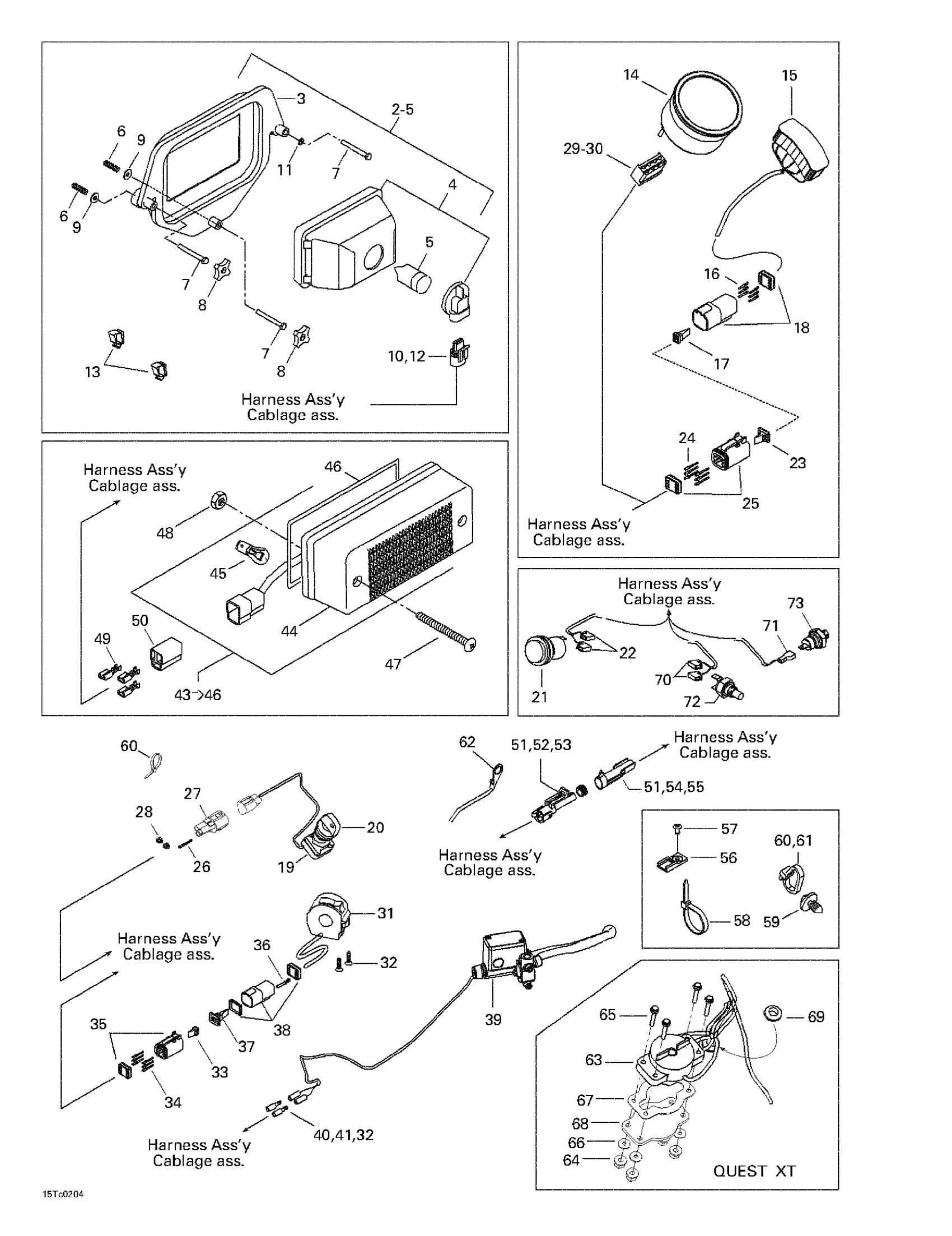

Can-Am Quest XT, 2002 10- Main Harness And Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y (Not Shown)

710000145

Unavailable

2

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34

710000174

Unavailable

3

LAMP SUPPORT - Call your local BRP dealership

705000283

Unavailable

4

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

5

BULB - Call your local BRP dealership

710000176

Unavailable

6

Spring

517168600

$7.39

7

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

8

Handle

572106600

$10.33

9

Flat Washer 4 mm

234040600

$0.55

10

Female Terminal

278001114

$3.19

11

Flat Washer 4 mm, Stainless

234042600

$1.15

12

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

13

Clip

414227300

$1.67

14

Speedometer (MPH) (US) | Quest.

710000197

Unavailable

15

RH Warning Lamp

710000310

Unavailable

16

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

17

Male Lock, 6 Circuits

409014600

Unavailable

18

Male Terminal Housing, 6 Circuits

409015200

Unavailable

19

Ignition Switch Ass'y | Includes 17 to 21

710000192

Unavailable

20

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

20

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

21

Outlet Power Kit, 12 Volts

861507200

$36.99

22

Female Terminal

710000038

$4.55

23

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

24

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

25

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

26

Male Terminal

409011300

$5.93

27

HOUSING-TAB - Call your local BRP dealership

710000219

Unavailable

28

Seal

409012300

$4.54

29

Female Terminal

710000221

Unavailable

30

Female Housing (8 Circuits)

710000035

Unavailable

31

Multi-function Switch | Includes 32 - 37. 7439/7440/7473 (Red/Rouge). .

710000196

Unavailable

32

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

33

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

34

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

35

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

36

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

37

Male Lock, 6 Circuits

409014600

Unavailable

38

Male Terminal Housing, 6 Circuits

409015200

Unavailable

39

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

40

Insulated Sheath

278001007

$3.58

41

Insulated Sheath

278000770

$7.90

42

Female Terminal

710000082

$7.69

43

Tail Light Housing

710000102

Unavailable

44

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

45

Bulb

520000758

$9.10

46

GASKET - Call your local BRP dealership

710000129

Unavailable

47

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

48

Hex. Flange Elastic Nut M5

233251414

$1.04

49

Female Terminal

561503100

$2.41

50

Female Housing

409204300

Unavailable

51

Wire Seal

710000048

$7.69

52

Male Terminal

409004300

$5.61

53

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

54

Male Terminal

409004300

$5.61

55

Female Housing, 1 Circuit

278000161

$9.59

56

Clip

270000141

$11.49

57

Pop Rivet 3/16"

390402400

$0.35

58

Tie Wrap 368 mm

293750008

$1.04

59

Mount Dart

293730040

$1.04

60

Tie Wrap 142 mm

293750002

$1.25

61

Tie-Rap 180 mm

414115200

$0.11

62

Open Barrel Terminal

278001392

$4.79

63

Winch Switch | 7423/7424 (XT-Yellow/Jaune).

710000116

Unavailable

64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

65

Hex. Flange Screw M6 X 40

207664044

$2.22

66

Flat Washer

224061201

$1.37

67

Winch support | 7423/7424 (XT-Yellow/Jaune).

710000118

Unavailable

68

Rubber spacer | 7423/7424 (XT-Yellow/Jaune).

710000120

Unavailable

69

GROMMET - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

293720066

Unavailable

70

Female Terminal

409010300

$4.39

71

Female Terminal

710000255

Unavailable

72

Temperature Switch

420897938

$78.49

73

OIL PRESSURE SWITCH - Call your local BRP dealership

710000313

Unavailable
