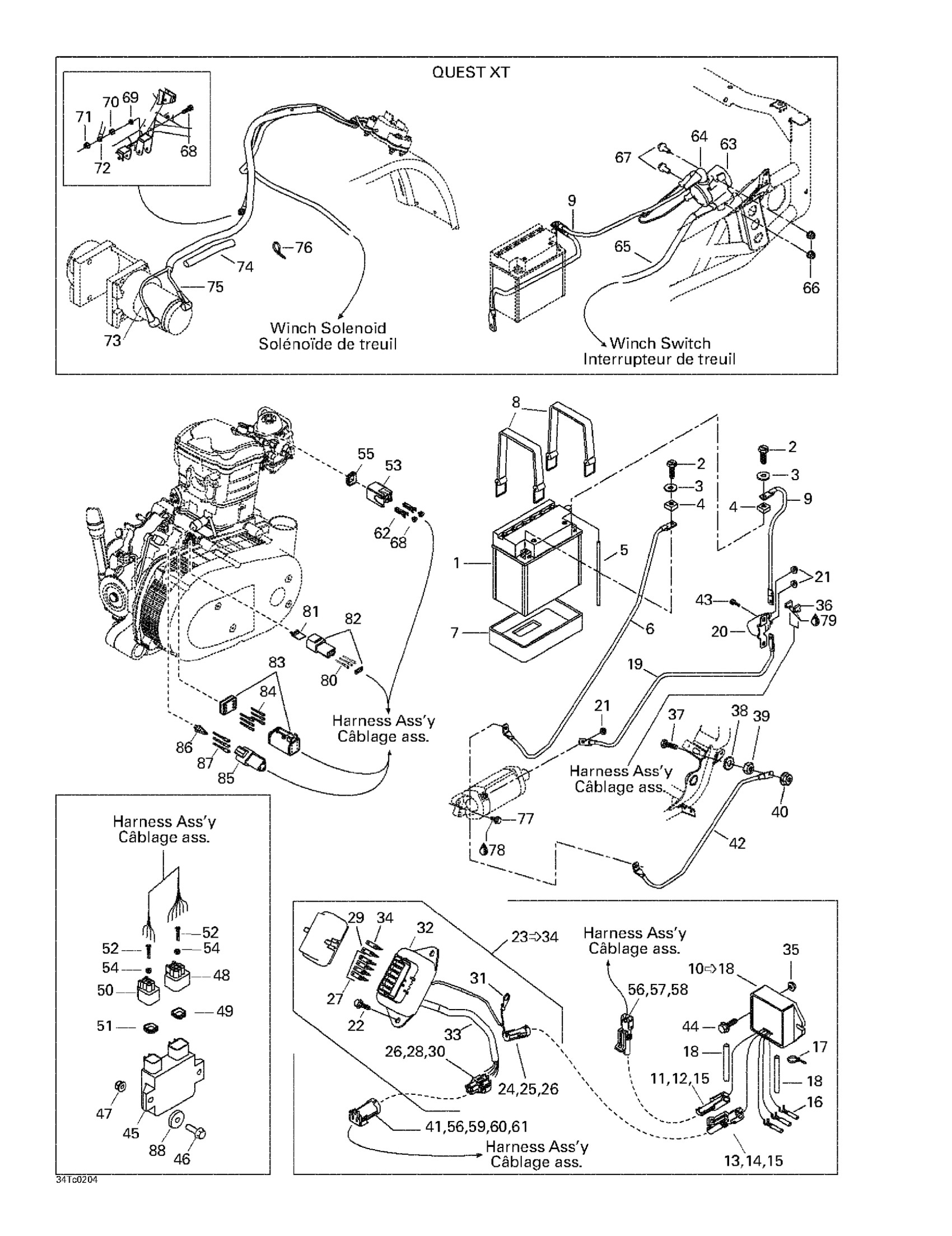

Can-Am Quest XT, 2002 10- Battery And Electrical Accessories Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

$153.36

2

Hex. Screw M6 X 16

207161644

$0.74

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.53

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

6

Engine Ground Cable

710000211

Unavailable

7

Lower Battery Pad

278001746

Unavailable

8

Retainer Strap

293850097

$11.64

9

Battery Cable | Quest XT.

710000269

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

10

Volt Regulator Ass'y | Includes 18 to 26

710000169

Unavailable

11

Male Terminal | XT Models

278000222

$3.19

12

Female Housing, 1 Circuit

278000161

$9.59

13

Female Terminal

278000223

$3.19

14

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

15

Wire Seal

278000218

$4.39

16

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

19

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

20

Starter Relay

515176011

$62.49

21

Hex. Elastic Stop Nut M6

232561600

$1.15

22

Hex. Flange Screw M6 X 16

210261650

$1.67

23

Fuse Hoder | Includes 28 - 40.

710000212

Unavailable

24

Male Terminal

409004300

$5.61

25

Female Housing, 1 Circuit

278000161

$9.59

26

Wire Seal

278000218

$4.39

Wire Seal

710000048

$7.69

27

Fuse, 15 Amperes

278000343

$3.28

28

Female Terminal

409007300

$0.45

29

Fuse, 20 Amperes

409003900

$3.28

30

Female Housing, 5 Circuit

710000106

Unavailable

31

Open Barrel Terminal

278001392

$4.79

32

Fuse Box

710000213

Unavailable

33

Tubing 6 Mm 3000Mm Long

219704425

$13.75

34

Fuse, 30 Amperes

410917200

$3.28

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Female Terminal

409010300

$4.39

37

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

38

External Serrated Lock Washer 6 mm

234461608

$1.15

39

Hex. Nut M6

232061414

$0.53

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Wire Seal

278000216

$3.19

42

ENGINE GROUND CABLE - Call your local BRP dealership

710000177

Unavailable

43

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

44

Hex. Flange Screw M6 X 20

207662044

$2.00

45

Amplifier box

711265820

Unavailable

46

Hex. Flange Screw M6 X 25

207662544

$0.64

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

48

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000190

Unavailable

49

LOCK, 6 CIRCUITS - Call your local BRP dealership

710000191

Unavailable

50

Housing Tab, 4 Circuits

710000188

Unavailable

51

Lock, 4 Circuits

710000187

Unavailable

52

FEMALE TERMINAL - Call your local BRP dealership

278001638

Unavailable

53

FEMELLE HOUSING, 2 CIRCUITS - Call your local BRP dealership

278001637

Unavailable

54

WIRE SEAL - Call your local BRP dealership

710000189

Unavailable

55

SECONDARY LOCK - Call your local BRP dealership

278001640

Unavailable

56

Wire Seal

710000048

$7.69

57

Female Terminal

409007300

$0.45

58

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

59

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

60

Male Terminal

409004300

$5.61

61

Wire Seal

278000218

$4.39

62

Female Terminal

409012100

$4.55

63

Solenoide *Solenoid Kit | 7423/7424 (XT-Yellow/Jaune).

715900123

$88.99

64

Protector cap | 7423/7424 (XT-Yellow/Jaune).

710000119

Unavailable

65

Solenoid wire | Quest XT.

710000270

Unavailable

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

67

Hex. Flange Screw M6 X 16

207661644

$0.74

68

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

69

External Serrated Lock Washer 6 mm

234461608

$1.15

70

Hex. Nut M6

232061414

$0.53

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000124

Unavailable

73

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000123

Unavailable

74

Tubing 16 Mm 1000Mm Long

219704408

$7.49

75

Winch wire | 7423/7424 (XT-Yellow/Jaune).

710000134

Unavailable

76

Tie Wrap 368 mm

293750008

$1.04

77

Hex. Flange Screw M6 X 16

207661644

$0.74

78

Loctite 243, 10 ml

293800060

$21.49

79

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
