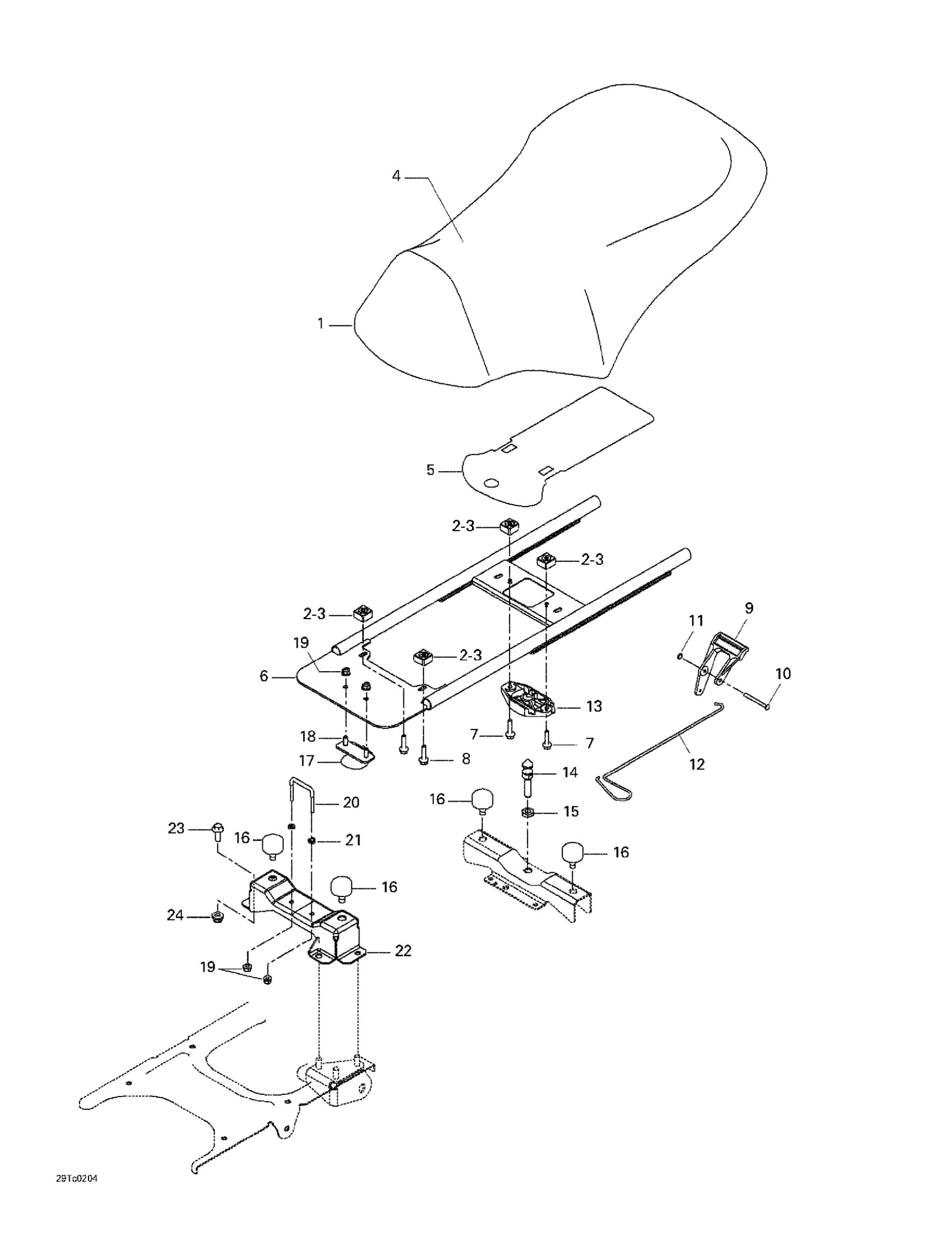

Can-Am Quest XT, 2002 09- Seat Diagram

#

Description
Price

1

Seat ass'y | Includes 1 - 4.

708000050

Unavailable

Seat ass'y | Quest XT.

708000119

Unavailable

2

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

3

Elastic Stop Nut M6

232561414

$0.55

4

Seat cover

708000095

Unavailable

Seat cover | (7467 - 7468 - 7472 - 7481) Traxter XT.

708000092

Unavailable

5

Reflective Sheet

708000029

Unavailable

6

Seat Support

708000085

Unavailable

7

Hex. Flange Screw M6 X 25

207662544

$0.64

8

Hex. Flange Screw M6 X 16

207661644

$0.74

9

Lever Latch

708000010

Unavailable

10

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

11

Push Nut

389804300

$0.53

12

SPRING - Call your local BRP dealership

708000015

Unavailable

13

Latch Base

708000034

Unavailable

14

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

15

Hex. Jam Nut M10

232100600

$2.22

16

Rubber Stopper

708000758

$12.99

17

Seat Hook

291001479

Unavailable

18

Stud Self Clinching M6

211300024

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

21

Hex. Nut M6

232061600

$1.15

22

Seat Support

708000088

Unavailable

23

Hex. Flange Screw M8 X 20

207682044

$1.15

24

Hex. Flange Elastic Nut M8

233281414

$1.47
