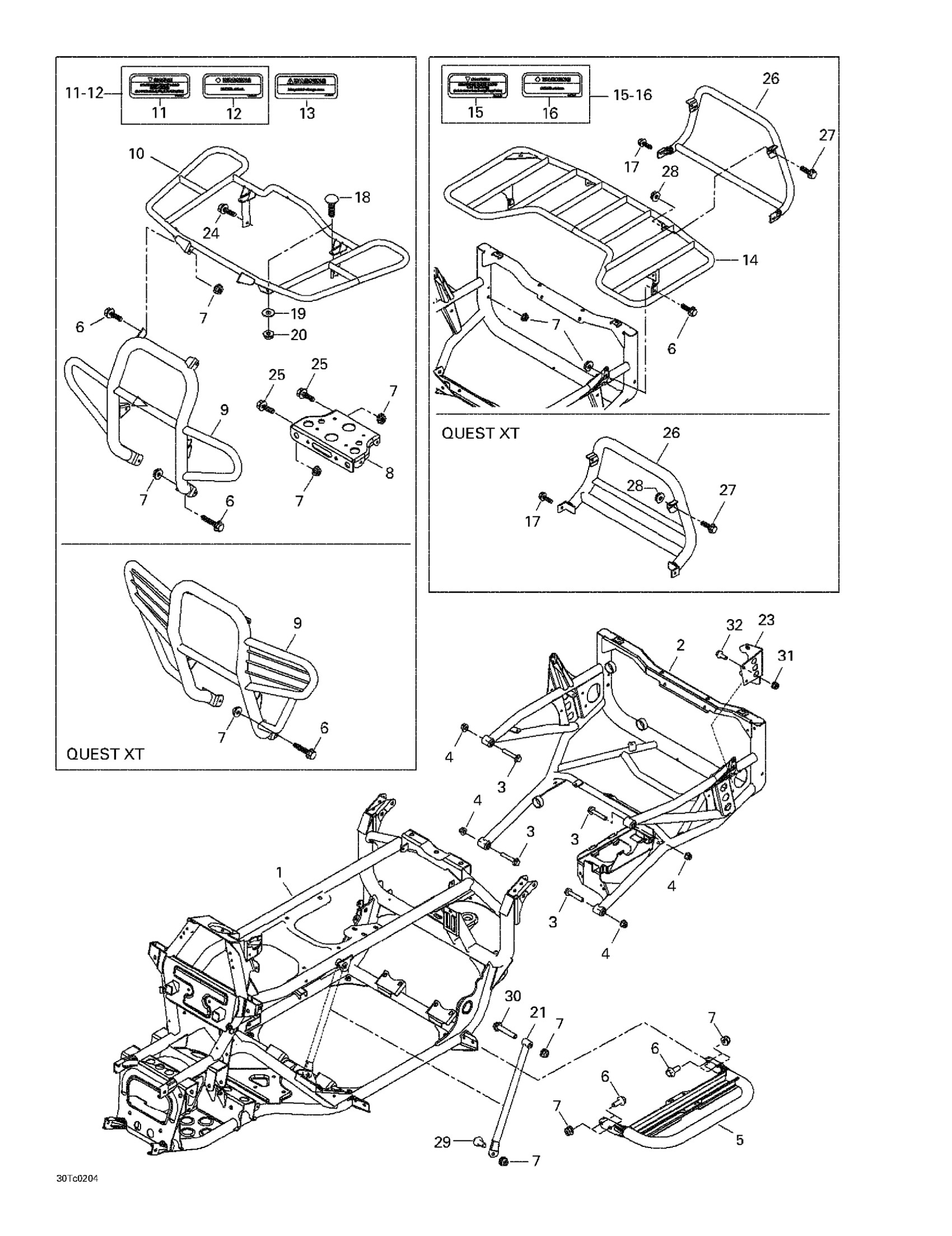

Can-Am Quest XT, 2002 09- Frame And Luggage Racks Diagram

#

Description
Price

1

Frame (Black)

705200258

Unavailable

2

Frame Extention

705200254

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

$3.38

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Footrest (silver)

705000008

Unavailable

6

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682544

$1.35

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

9

Front bumper

705000001

Unavailable

Front Bumper | 7423/7424 (XT-Yellow/Jaune).

705000175

Unavailable

10

Front Luggage Rack Ass'y | 7415/7416. 7417/7418.

703500053

Unavailable

11

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

Caution Decal, Maximum Load | French Version

704900016

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

WARNING LABEL (FRENCH) - Call your local BRP dealership | (Do Not Sit)

704900018

Unavailable

13

Warning Label, Tray Cover

704900038

Unavailable

Warning Label (French) | (Front Trunk Cover)

704900039

Unavailable

14

Rear Luggage Rack Ass'y | Includes 14 - 16.

703500059

Unavailable

15

Warning Label | Includes 6 - 7.

704900036

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

French Warning Label | (Rear Cargo)

704900014

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Flange Screw M8 X 50

207685044

$1.69

18

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

19

Flat Washer

224060201

$1.26

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

RH Removable Brace

705200404

Unavailable

LH Removable Brace

705200405

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

$1.15

23

Module Bracket

710000138

Unavailable

24

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

25

Hex. Flange Screw M8 X 20

207682044

$1.15

26

Rear Bumper | 7423/7424 (XT-Yellow/Jaune).

705000166

Unavailable

Rear bumper (silver)

705000210

Unavailable

27

Hex. Flange Screw M8 X 20

207682046

$1.90

28

Hex. Elastic Flange Nut M8

233281416

$1.48

29

Hex. Flange Screw M8 X 25

207682544

$1.35

30

Hex. Flange Screw M8 x 45

207284544

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Hex. Flange Screw M6 X 16

207661644

$0.74
