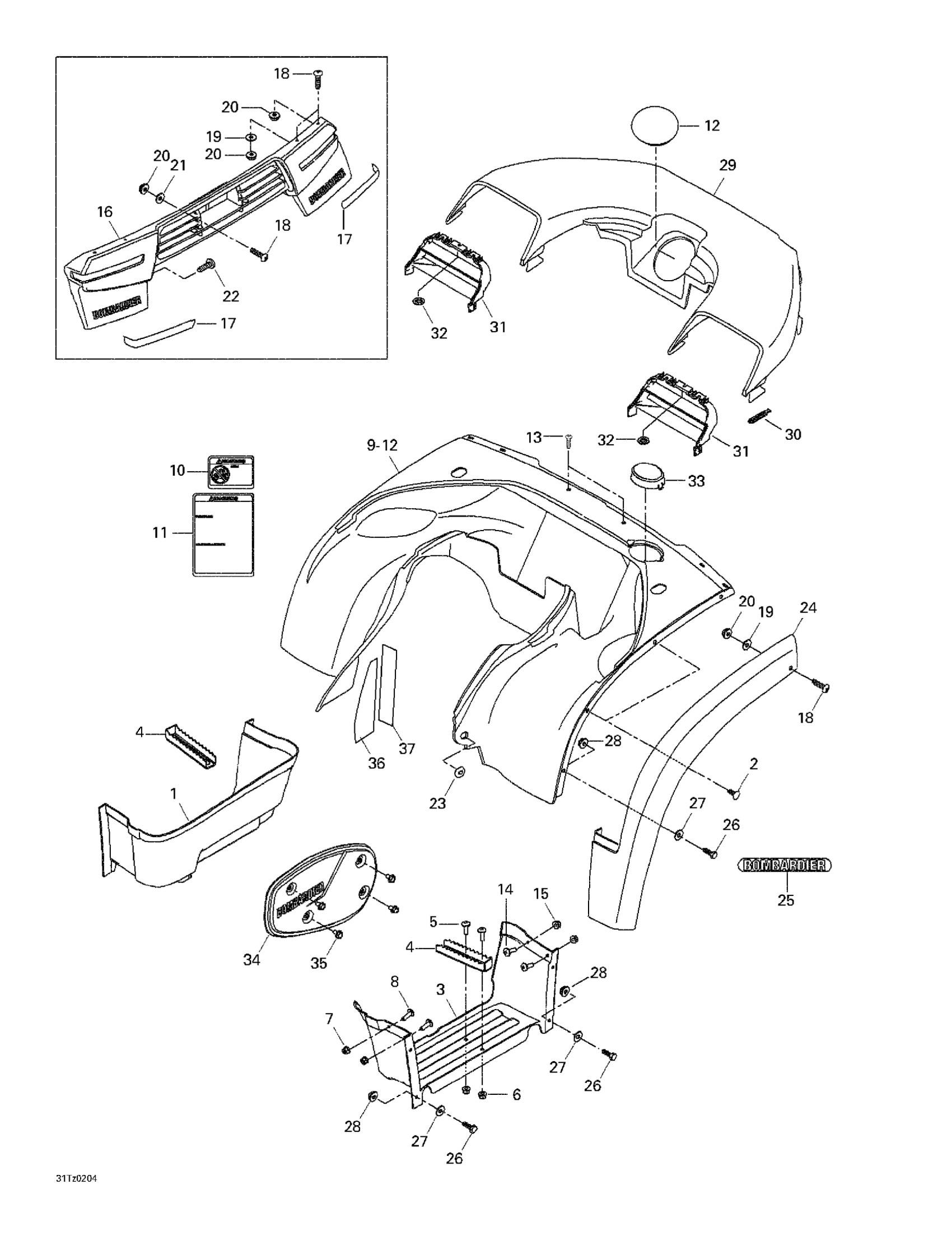

Can-Am Quest XT, 2002 09- Body And Accessories 2 Diagram

#

Description
Price

1

RH Footwell | Quest (Blue/Bleu).

705000199

Unavailable

RH Footwell | Quest (Green/Vert).

705000329

Unavailable

RH foot-well | Quest XT.

705000401

Unavailable

2

Black, Dart

293730011

$0.99

3

LH Footwell | Quest (Blue/Bleu).

705000200

Unavailable

LH Footwell | Quest (Green/Vert).

705000331

Unavailable

LH foot-well | Quest XT.

705000402

Unavailable

4

Foot Pegs | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705000279

Unavailable

5

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

9

Rear fender kit | Quest (Blue/Bleu).

703500147

Unavailable

Rear fender kit | Includes 9 - 12. Quest (Green/Vert).

703500145

Unavailable

Rear fender kit | English Warn Labels Installed) Quest.

703500146

Unavailable

10

Warning label english | (Passenger/Tire Pressure)

704900245

Unavailable

Warning Decal, Passenger, French | French Version

704900006

Unavailable

11

WARNING LABEL ENGLISH - Call your local BRP dealership | (Tire Pressure)

704900246

Unavailable

Warning label english | (Tire Pressure)

704900249

Unavailable

12

CAP - Call your local BRP dealership

705000207

Unavailable

13

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

14

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Rear fascia | Includes 15 - 16.

703500153

Unavailable

17

RH Rear Reflector

704900085

Unavailable

LH Rear Reflector

704900086

Unavailable

18

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

19

Flat Washer

224060201

$1.26

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Flat Washer

224060201

$1.26

22

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

23

Oval Washer

705005156

$4.97

24

LH rear Mudguard | Includes 23 - 24.

703500150

Unavailable

RH rear mudguard

703500151

Unavailable

25

Bombardier label | 7400/7401. 7413/7414.

704900026

Unavailable

26

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

27

Flat Washer

224060201

$1.26

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Fender cover | Quest (Blue/Bleu).

705000341

Unavailable

Fender cover | 7407/7408.

705000193

Unavailable

Fender Cover, Yellow | Yellow

705000179

Unavailable

30

Windshield Latch

570023800

$4.49

31

LH Grill, Black

705000180

Unavailable

RH Grill, Black

705000181

Unavailable

32

PUSH NUT - Call your local BRP dealership

250100000

Unavailable

33

COVER, BLACK - Call your local BRP dealership

705000132

Unavailable

34

Heat shield | Quest (Blue/Bleu).

705000314

Unavailable

Heat shield | Quest (Green/Vert).

705000358

Unavailable

Heat shield | Quest XT.

705000458

Unavailable

35

Hex. Forming Screw M6 X 10

210261050

$1.69

36

Reflective Sheet

705000491

Unavailable

37

Reflective Sheet

705000492

Unavailable
