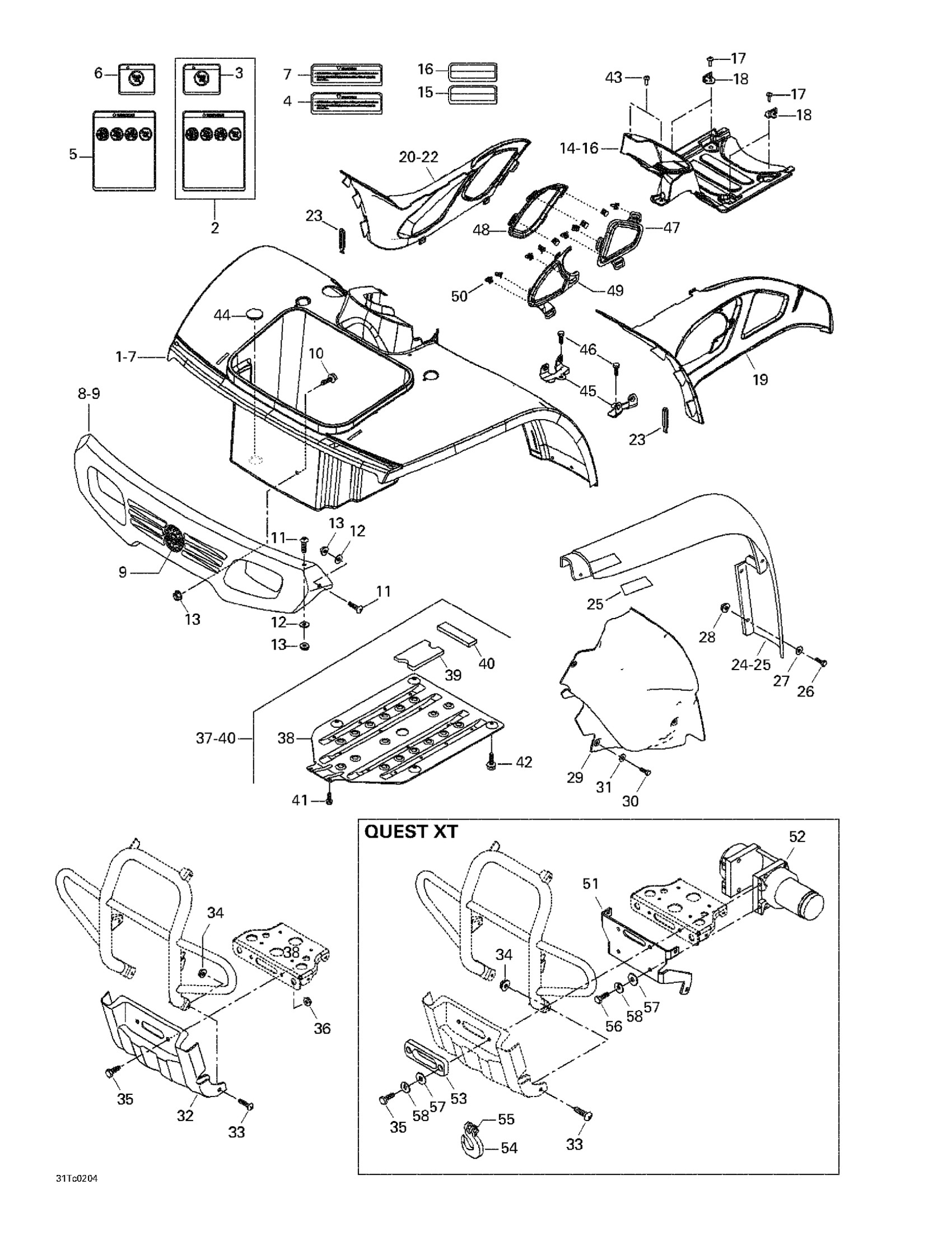

Can-Am Quest XT, 2002 09- Body And Accessories Diagram

#

Description
Price

1

Front Fender Kit | Quest (Blue/Bleu).

703500144

Unavailable

Front Fender Kit | (Green 7460 - 7466) Traxter.

703500138

Unavailable

Front Fender Kit (Yellow) | (XT Yellow 7468 - 7472) Traxter XT.

703500140

Unavailable

2

Warning Label | Includes 9 - 10.

704900034

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

5

Warning Decal, Death And Injuries

704900002

Unavailable

6

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

7

Caution Decal, Transmission Selector | French version

704900008

Unavailable

8

Front fascia | Includes 9 - 10.

703500152

Unavailable

9

BRP Logo 68mm

516008739

$16.99

10

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

11

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

12

Flat Washer

224060201

$1.26

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Console Kit | Includes 14 - 16.

703500157

Unavailable

15

CAUTION DECAL, CONSOLE LOAD - Call your local BRP dealership | English Version

704900247

Unavailable

16

Caution Decal, Console Load | French Version

704900250

Unavailable

17

Phillips Screw M6 X 20, Scotch Grip

250000043

Unavailable

18

HOOK, BLACK - Call your local BRP dealership

705000369

Unavailable

19

LH cover | Quest (Blue/Bleu).

705000203

Unavailable

LH cover | Quest (Green/Vert).

705000334

Unavailable

LH Panel, yellow | Yellow

705000405

Unavailable

20

RH cover | Includes 22 - 24. Quest (Blue/Bleu).

703500154

Unavailable

RH cover | Quest (Green/Vert).

703500155

Unavailable

RH panel | (English Warn Labels Installed) Quest XT.

703500156

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Windshield Latch

570023800

$4.49

24

LH front mudguard | Includes 26 - 27.

703500148

Unavailable

RH front mudguard

703500149

Unavailable

25

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

Unavailable

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

26

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

27

Flat Washer

224060201

$1.26

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

30

Hex. Flange Screw M6 X 16

210261650

$1.67

31

Flat Washer

224061201

$1.37

32

Protector plate

705000340

Unavailable

33

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Hex. Flange Screw M10 X 25

207602544

$1.69

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

36

Hex. Flange Elastic Nut M10

233201414

$1.58

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Motor Protector

705000308

Unavailable

39

Rubber Protector

293830092

Unavailable

40

Rubber Strip

293830012

Unavailable

41

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

42

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

43

Tuflock Phillips Plastic Screw

414745900

$1.69

44

Rubber Cover

570041600

Unavailable

45

Bracket, Black

705000311

Unavailable

46

Hex. Forming Screw M6 X 10

210261050

$1.69

47

LH Rear Grill, Black

705000367

Unavailable

48

RH Rear Grill, Black

705000366

Unavailable

49

LH Front Grill

705000368

Unavailable

50

Edge Clip

517302785

$0.88

51

Mouting plate | 7423/7424 (XT-Yellow/Jaune).

705000184

Unavailable

52

WINCH - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

705000185

Unavailable

53

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

54

Winch Hook Kit

705014949

$24.99

55

Cotter Pin

250400022

$9.69

56

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

57

Flat Washer 8 mm

234081410

$0.83

58

Lock Washer 8 mm

234181401

$0.92
