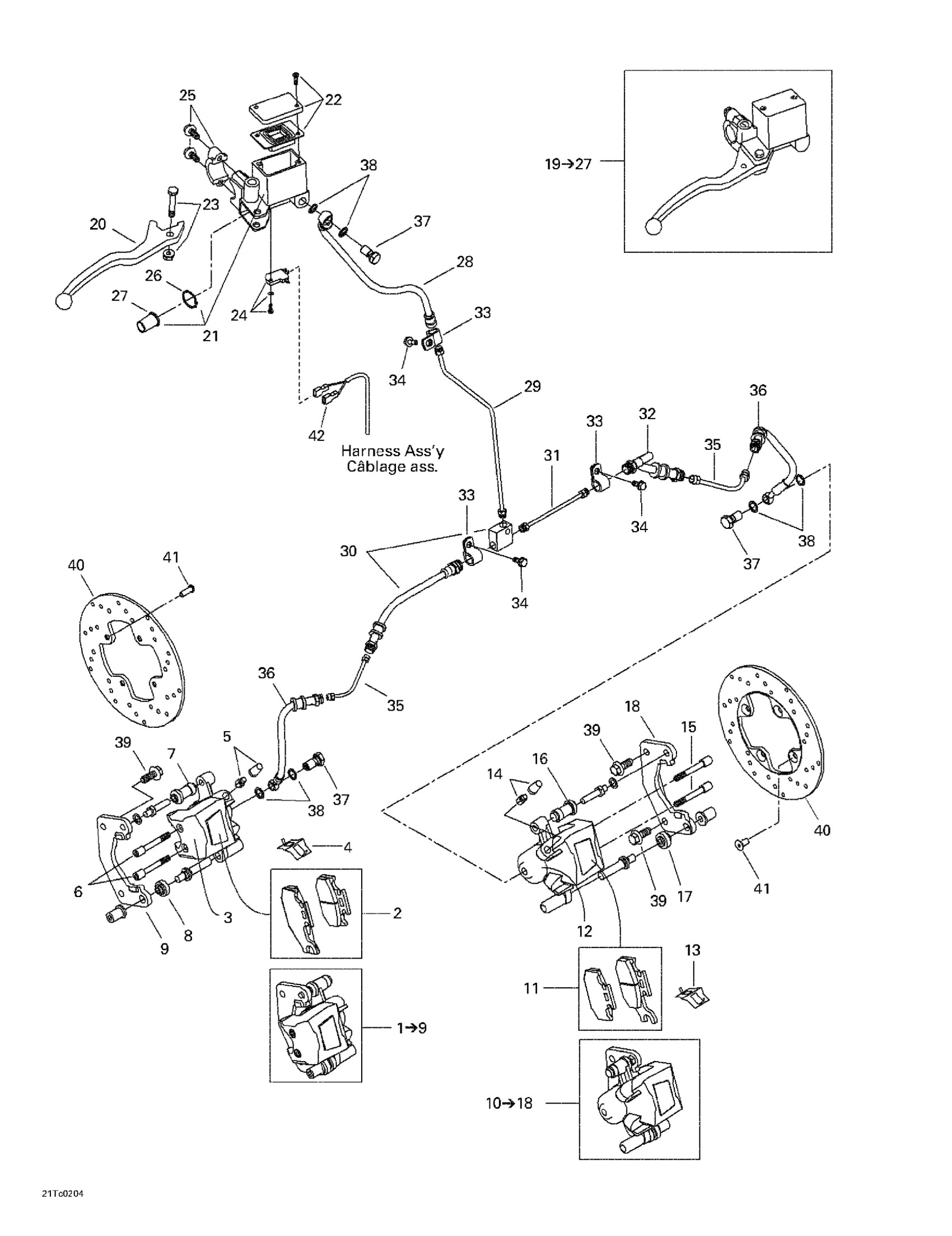

Can-Am Quest XT, 2002 06- Front Brake Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

Lining Support

705600149

Unavailable

10

LH Caliper | Includes 10 To 18

705600119

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

Lining Support

705600149

Unavailable

19

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

21

PISTON KIT - Call your local BRP dealership

705600152

Unavailable

22

Cap Set

705600084

$24.99

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

SWITCH KIT - Call your local BRP dealership

705600148

Unavailable

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

28

HANDLE BRAKE HOSE - Call your local BRP dealership

705600165

Unavailable

29

Vertical tube

705600036

Unavailable

30

RH flexible hose

705600174

Unavailable

31

Horizontal tube

705600038

Unavailable

32

LH flexible hose

705600175

Unavailable

33

Hose Retainer 13 mm

705600232

$11.11

34

Hex. Flange Screw M6 X 16

210261650

$1.67

35

Rigid tube

705600176

Unavailable

36

BRAKE LINE - Call your local BRP dealership

705601394

Unavailable

37

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

38

Washer

414920600

$1.90

39

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.29

40

Brake Disk 205 mm | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705600171

Unavailable

41

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

42

Female Terminal

710000082

$7.69
