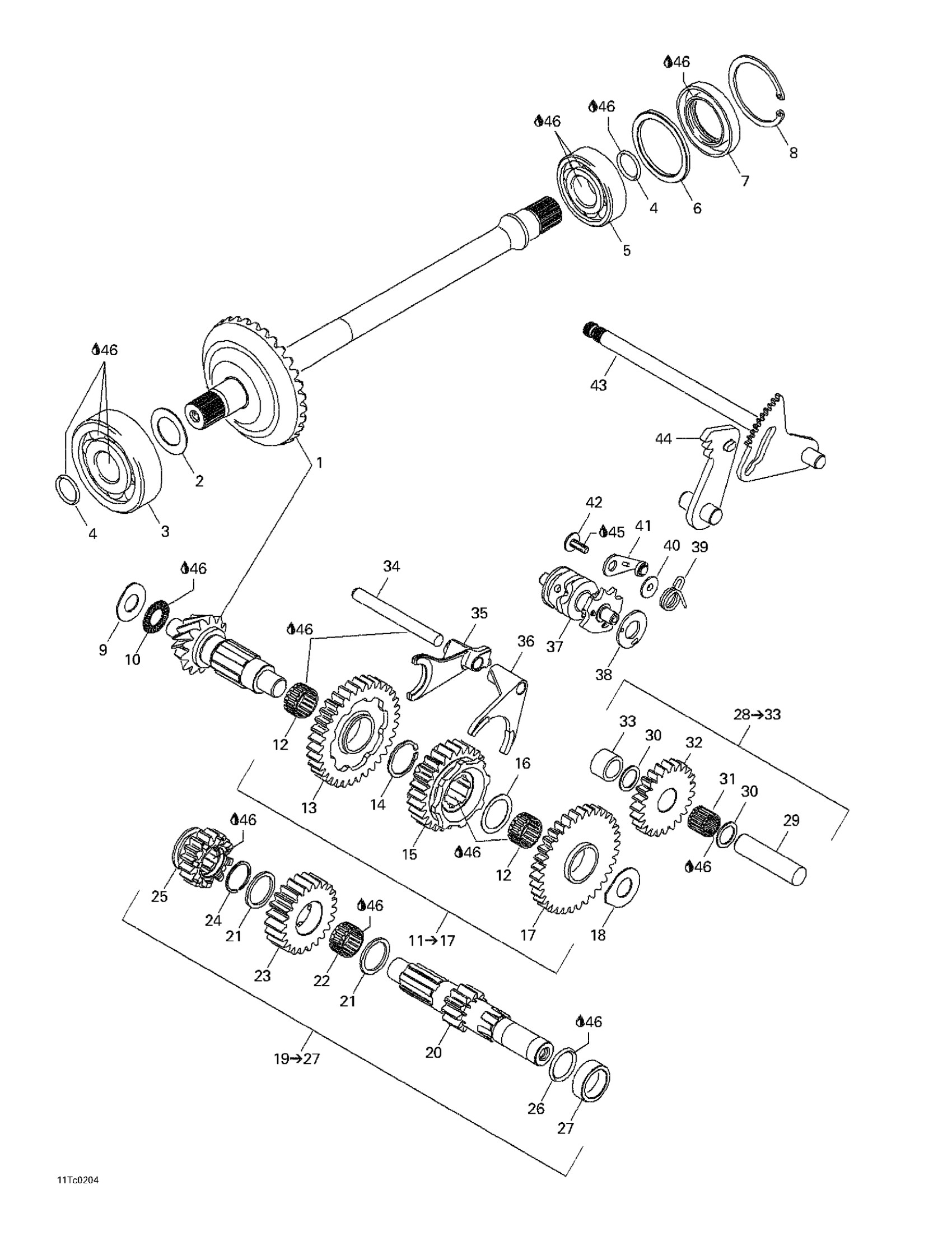

Can-Am Quest XT, 2002 05- Gear Shift Diagram

#

Description
Price

1

Bevel Gear Ass'y

711296530

Unavailable

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Ball Bearing

420932822

$30.49

6

Distance Ring

711247090

Unavailable

7

Oil Seal

420650682

$19.49

8

RETAINING RING - Call your local BRP dealership

711445070

Unavailable

9

Thrust Washer Set, MAG Side

420281306

$61.49

10

Axial Needle Bearing

420632300

$18.49

11

Gearwheel Set | Includes 11 - 17.

711281280

Unavailable

12

Needle Bearing

420632070

$25.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Retaining Ring

420245850

$5.31

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Thrust Washer Set, CVT Side

420281302

$86.99

19

Countershaft Ass'y (11 Teeth) | Includes 19 - 27.

711220976

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Needle Bearing

420632070

$25.99

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Circlip

420445302

$4.12

25

Not Available As Spare Part - Friction Washer

Unavailable

26

O-Ring

420630040

$4.44

27

Distance Ring

711247110

Unavailable

28

Idle Gear Shaft | Includes 26 - 30.

711229605

Unavailable

29

Needle Pin

420229600

$37.99

30

Thrust Washer

711944190

Unavailable

31

Needle Cage

420432034

$35.99

32

Internal Gear (23 teeth)

711635310

Unavailable

33

Distance Sleeve

711247120

Unavailable

34

Pin

420229540

$20.99

35

Shift Fork

711257180

Unavailable

36

Shift Fork

711257230

Unavailable

37

Shift Drum

711257175

Unavailable

38

Isolating Washer

711227567

Unavailable

39

Index Spring

420239561

$12.18

40

BUSHING - Call your local BRP dealership

420227710

Unavailable

41

Index Lever Ass'y

711248326

Unavailable

42

Torx Screw M6 X 16

420241529

$2.11

43

Shift Shaft

711220806

Unavailable

44

Lock Lever

711257156

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

Engine Oil, Mineral, Api Sj Sae 10W40

293600023

Unavailable

48

Synthetic Grease, 400 G

293550010

Unavailable
