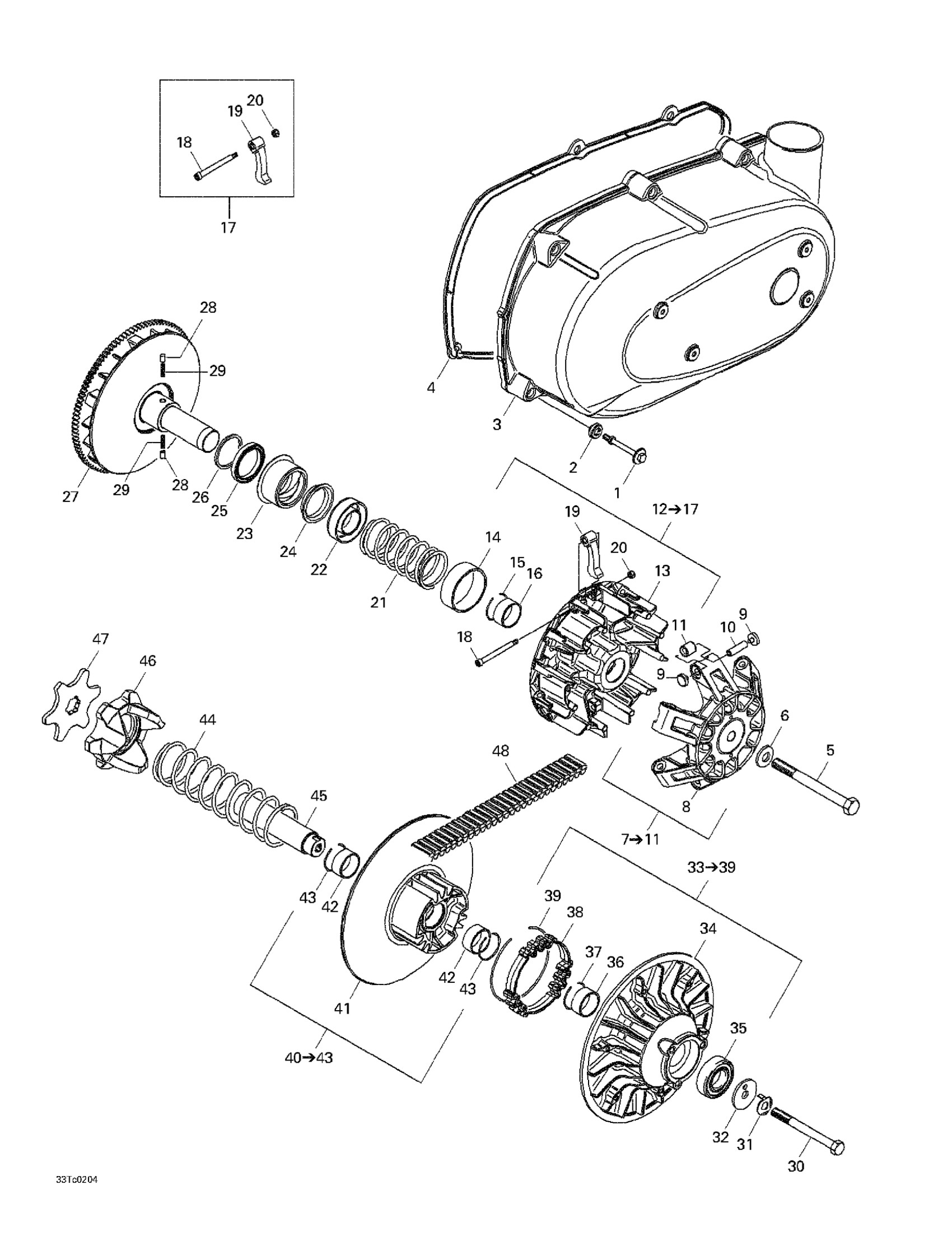

Can-Am Quest XT, 2002 05- Belt And Engine Pulley Diagram

#

Description
Price

1

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

$25.99

2

Rubber Bushing

711260050

Unavailable

3

Transmission Cover

711610350

Unavailable

4

Gasket

711630110

Unavailable

5

Hex. Screw M12 X 140

420641859

$24.99

6

Spring Washer

420627760

$11.65

7

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Slider Shoe Set

420281296

$65.49

10

Roller Axle

417223257

$6.99

11

Roller

417223767

$11.59

12

Outher Half Ass'y | Includes 12 - 17.

711280147

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Centrifugal Lever Set

711248408

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Compression Spring

420238166

$35.99

22

Spring Seat

711627572

Unavailable

23

Clutch

711257193

Unavailable

24

Flanged Bushing

711233052

Unavailable

25

Ball Bearing

420632377

$49.99

26

Distance Ring

711247230

Unavailable

27

Inner Half Ass'y

420280163

$606.49

28

Spring Sleeve

420229577

$18.49

29

Compression Spring

420239135

$6.59

30

Hex. Screw M10 X 110

420441485

$12.18

31

TAB WASHER - Call your local BRP dealership

420245925

Unavailable

32

Thrust Washer

420627590

$16.99

33

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Ball Bearing

420932421

$28.49

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Torque Gear

711660120

Unavailable

39

Retaining Ring

420245911

$5.31

40

Inner Half Ass'y | Includes 36 - 38.

711280186

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Compression Spring, Driven Pulley

420238173

$55.99

45

Driven Pulley Shaft

420220913

$134.99

46

RAMP - Call your local BRP dealership

711280191

Unavailable

47

Cam Plate

420627586

$48.99

48

V-belt | Traxter 650 CVT

715900023

$154.99
