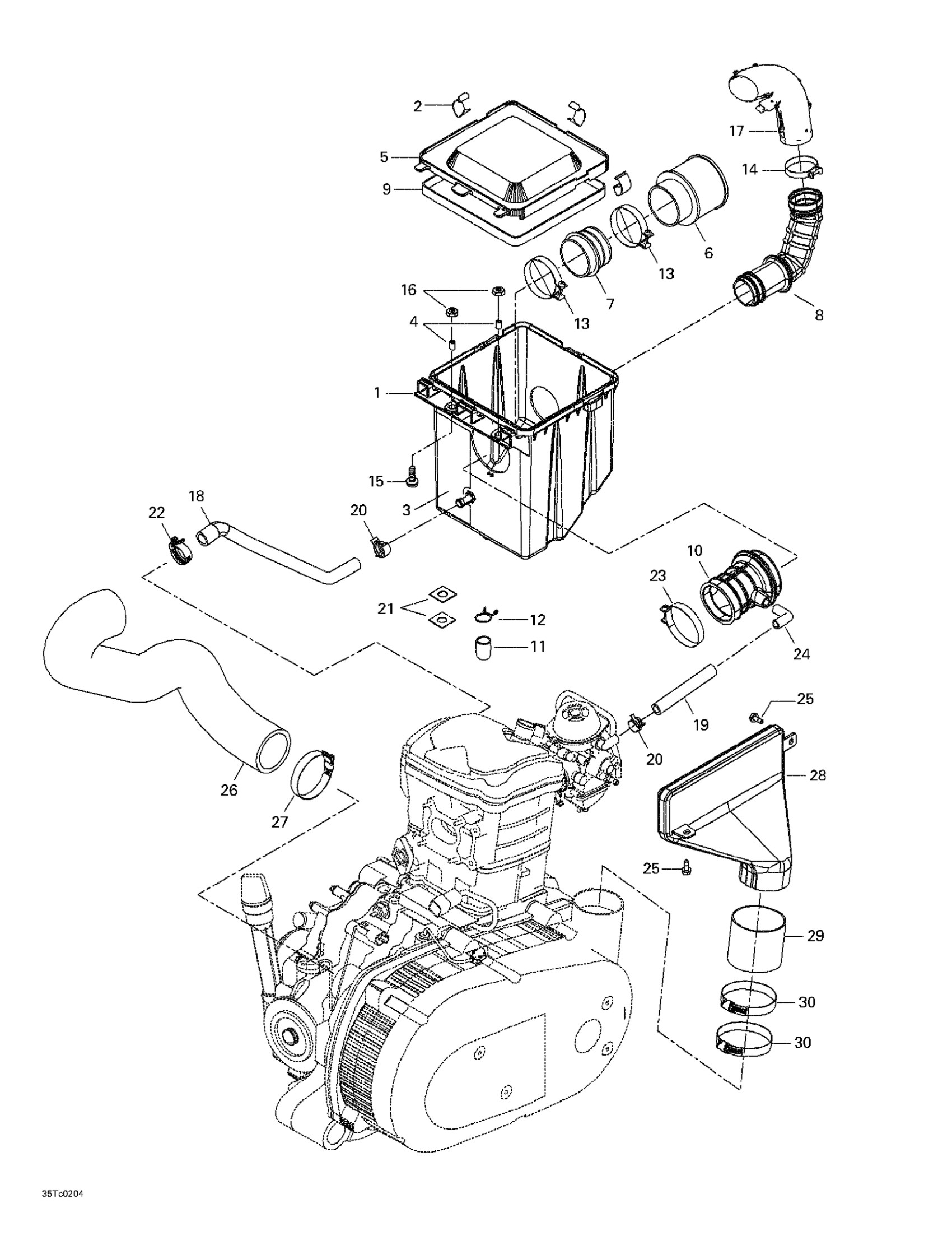

Can-Am Quest XT, 2002 02- Air Intake System Diagram

#

Description
Price

1

Air Intake Silencer Base | Includes 1 - 4.

707800130

Unavailable

2

Bracket Cover

707800079

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

707800083

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Muffler cover

707800017

Unavailable

6

Air Filter

707800072

$37.99

7

Adaptor

707800077

Unavailable

8

Intake Adaptor

707800078

Unavailable

9

OIL SEAL - Call your local BRP dealership

293250113

Unavailable

10

Front Air-Intake

707800065

Unavailable

11

Drain Tube

707800080

$8.29

12

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

13

Tridon Clamp

293650179

$11.49

14

Gemi Clamp

293650158

$8.57

15

Hex. Flange Screw M6 X 20

207662044

$2.00

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Rear Hose Intake

707800133

Unavailable

18

VENT HOSE - Call your local BRP dealership

707800097

Unavailable

19

VENT HOSE - Call your local BRP dealership

707800132

Unavailable

20

Norma Clamp

293650110

$4.54

21

Rubber Bumper

293830091

$8.29

22

Tridon Gear Clamp

293650172

$3.09

23

Not Available As Spare Part - Friction Washer

Unavailable

24

90 Fitting-Elbow

293710098

Unavailable

25

Hex. Forming Screw M6 X 10

210261050

$1.69

26

AIR INTAKE - Call your local BRP dealership

707000152

Unavailable

27

Tridon Clamp

293650023

$13.49

28

Exhaust

707000153

Unavailable

29

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

30

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable
