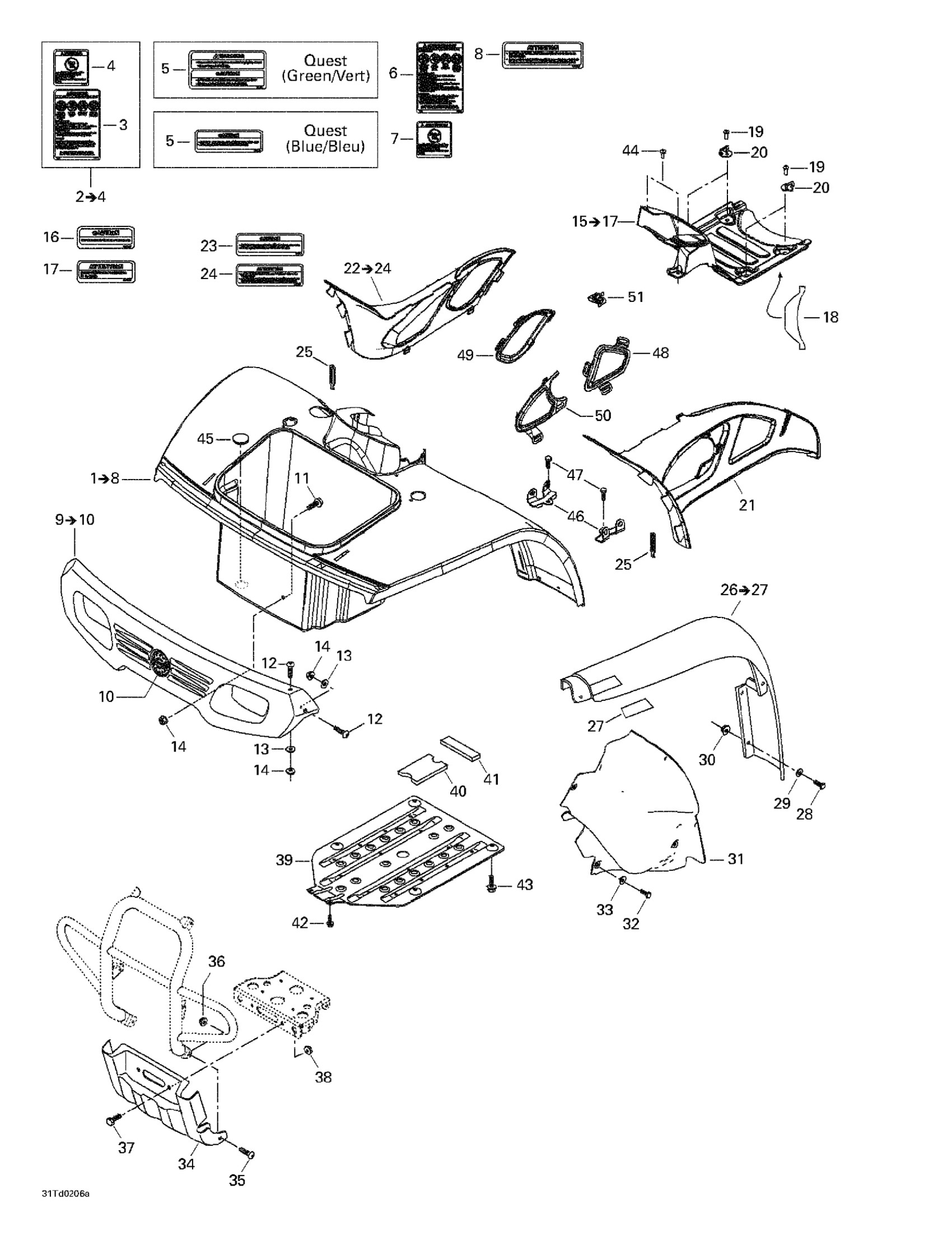

Can-Am Quest, Green/vert, 2002 09- Body And Accessories, Front View Diagram

#

Description
Price

1

Front Fender Kit | (Green 7460 - 7466) Traxter.

703500138

Unavailable

Front Fender Kit | Quest (Blue/Bleu).

703500144

Unavailable

2

Warning Label | Includes 9 - 10.

704900034

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Caution Decal, Transmission Selector

704900135

Unavailable

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

6

Warning Decal, Death And Injuries

704900002

Unavailable

7

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

Caution Decal, Transmission Selector | French version

704900008

Unavailable

9

Front fascia | Includes 9 - 10.

703500152

Unavailable

10

BRP Logo 68mm

516008739

$16.99

11

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

12

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

13

Flat Washer

224060201

$1.26

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Console Kit | Includes 15 - 17.

703500176

Unavailable

16

CAUTION DECAL, CONSOLE LOAD - Call your local BRP dealership | English Version

704900247

Unavailable

17

Caution Decal, Console Load | French Version

704900250

Unavailable

18

Reflective Sheet

705000541

Unavailable

19

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

20

HOOK, BLACK - Call your local BRP dealership

705000369

Unavailable

21

LH cover | Quest (Blue/Bleu).

705000203

Unavailable

LH cover | Quest (Green/Vert).

705000334

Unavailable

22

RH cover | Includes 22 - 24. Quest (Blue/Bleu).

703500154

Unavailable

RH cover | Quest (Green/Vert).

703500155

Unavailable

23

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

24

Caution Decal, Transmission Selector | French version

704900008

Unavailable

25

Windshield Latch

570023800

$4.49

26

LH front mudguard | Includes 26 - 27.

703500148

Unavailable

RH front mudguard

703500149

Unavailable

27

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

Unavailable

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

28

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

29

Flat Washer

224060201

$1.26

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

32

Hex. Flange Screw M6 X 16

210261650

$1.67

33

Flat Washer

224061201

$1.37

34

Protector plate

705000340

Unavailable

35

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hex. Flange Screw M10 X 25

207602544

$1.69

38

Hex. Flange Elastic Nut M10

233201414

$1.58

39

Motor Protector

705000308

Unavailable

40

Rubber Protector

293830092

Unavailable

41

Rubber Strip

293830012

Unavailable

42

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

43

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

44

Tuflock Phillips Plastic Screw

414745900

$1.69

45

Rubber Cover

570041600

Unavailable

46

Bracket, Black

705000311

Unavailable

47

Hex. Forming Screw M6 X 10

210261050

$1.69

48

LH Rear Grill, Black

705000367

Unavailable

49

RH Rear Grill, Black

705000366

Unavailable

50

LH Front Grill

705000368

Unavailable

51

Edge Clip

517302785

$0.88
