Description

Price

10

Rear Propeller Shaft Ass'y Kit

703500932

$259.49

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10ba

Grease Fitting | T3

715900295

$5.24

10c

FIXE YOKE - Call your local BRP dealership

715900294

Unavailable

10f

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

10h

COVER - Call your local BRP dealership

715900187

Unavailable

10j

Spline Yoke

715900106

$41.49

10k

Wear Ring | 4X4

705400036

$26.49

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

50

Wheel Hub

705501900

$132.49

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Flat Washer M12

250200102

$2.11

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230da

Oetiker Clamp

715900282

$5.29

230db

Oetiker Clamp, Small

715900283

$5.29

230e

Boot Kit, Differential Side

705401346

$42.49

230ea

Oetiker Clamp, Large

715900284

$5.29

230eb

Oetiker Clamp, Small

715900261

$5.29

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Circlip

705501781

$6.50

240d

Boot Kit, Wheel Side

705401345

$42.49

240da

Oetiker Clamp

715900282

$5.29

240db

Oetiker Clamp, Small

715900283

$5.29

240e

Boot Kit, Differential Side

705401346

$42.49

240ea

Oetiker Clamp, Large

715900284

$5.29

240eb

Oetiker Clamp, Small

715900261

$5.29

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose 10000Mm Long

219704410

$56.99

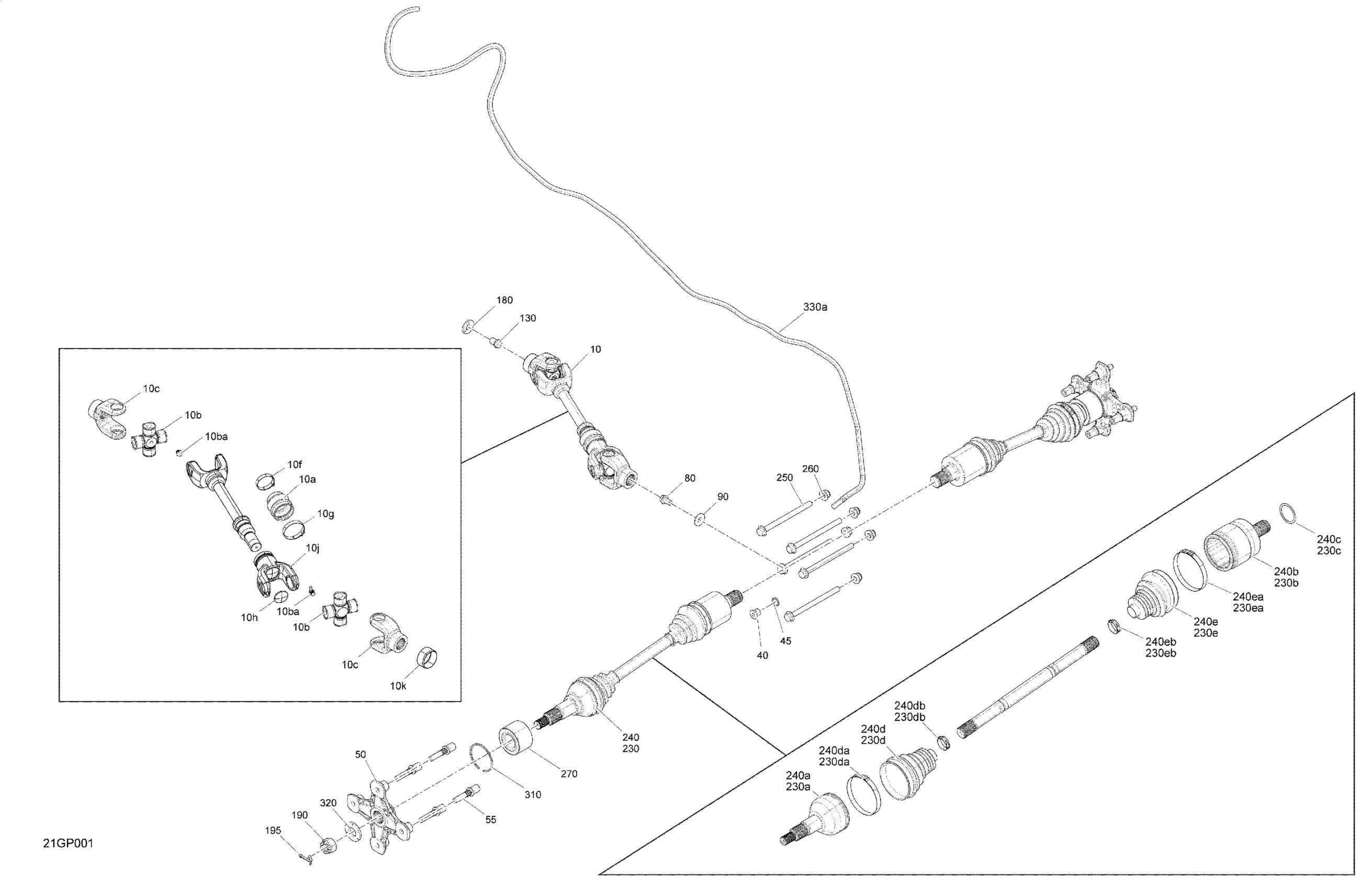

Can-Am 008 - Outlander - 1000 0003WGA00 04- Drive - Rear - Common Parts - NO MAX Diagram

Rear Propeller Shaft Ass'y Kit

Rubber Boot

Universal Joint Ass'y | T3

Grease Fitting | T3

FIXE YOKE - Call your local BRP dealership

Oetiker Gear Clamp 36.1MM

Oetiker Gear Clamp 44.0MM | 4X4

COVER - Call your local BRP dealership

Spline Yoke

Wear Ring | 4X4

Fill Level Plug | 4X4

Copper Washer | 4X4

Wheel Hub

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

Hex. Flange Screw M10 X 16 S.GRIP

Flat Washer M10 | 4X4

Hex Flange Screw M12 X 16

Flat Washer M12

Hex. Flange Castellated Nut M18

Cotter Pin

RH Half Shaft Ass'y

CV Joint

Plunging Joint

Circlip

Boot Kit, Wheel Side

Oetiker Clamp

Oetiker Clamp, Small

Boot Kit, Differential Side

Oetiker Clamp, Large

Oetiker Clamp, Small

LH Half Shaft Ass'y

CV Joint

Plunging Joint

Circlip

Boot Kit, Wheel Side

Oetiker Clamp

Oetiker Clamp, Small

Boot Kit, Differential Side

Oetiker Clamp, Large

Oetiker Clamp, Small

Hex. Flange Screw M10 X 135

Hex. Flange Elastic Nut M10

Ball Bearing

Circlip

Conical Spring Washer M18

Polyurethane Hose 10000Mm Long
