Description

Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Panel Nut M6 X 1.0

250100198

$2.11

6

Gasket

293300175

$13.99

7

Norma Clamp

293650077

$7.41

8

Norma Clamp

293650091

$11.12

9

Norma Spring Clamp

293650109

$4.12

10

Norma Clamp

293650110

$4.54

12

Flat Washer

250200082

$0.42

13

Tie-Rap 180 mm

414115200

$0.11

16

Drain Tube

707800080

$8.29

17

Intake Adaptor

707800333

$19.99

18

Air Filter

707800371

$40.99

19

Air Filter Maintenance Decal

707800373

Unavailable

21

Drain Tube

707800404

$2.89

22

Vent Hose

707800453

$25.99

23

Air Filter Adaptor

707800470

$19.99

24

Air Intake Hose

707800501

$55.99

26

Ring

707800504

$53.99

27

Formed Hose

707800510

$36.99

28

Formed Hose

707800511

$36.99

29

Straight Fitting

707800512

$15.87

30

Intake Silencer Cap Ass'y

715002174

$17.49

31

Air Intake Hose

707800503

$39.99

31

Air Intake Front

707800528

$38.99

33

Heat Shield

707002106

$10.49

34

Welded Air Box

707800599

Unavailable

37

Push Nut

732610072

$2.19

38

Retainer Clip

707800278

$13.99

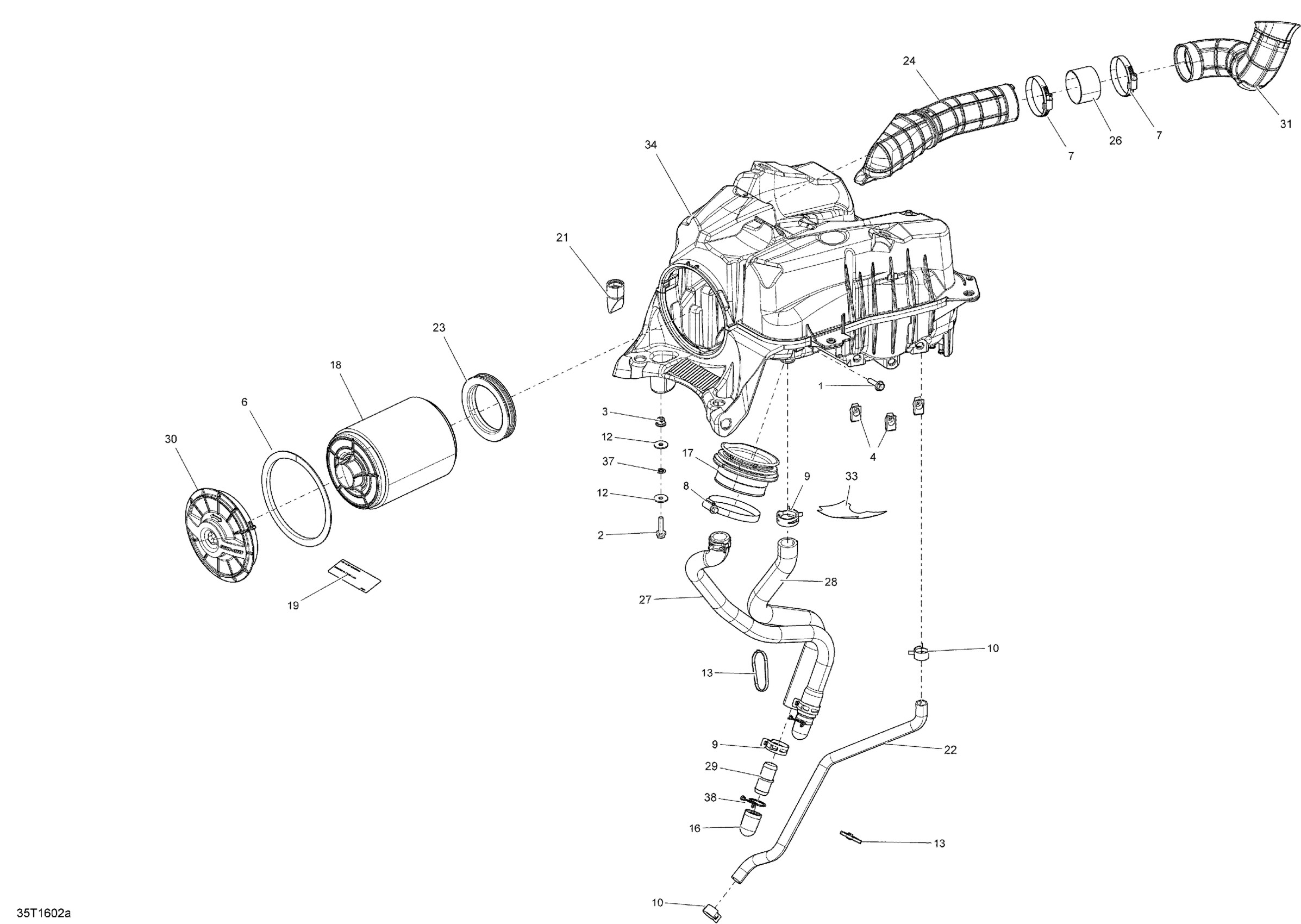

Can-Am 007 - Outlander - 850 EFI - XMR Package 0004KGA00 02- Air Intake - XMR Diagram

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Panel Nut M6 X 1.0

Gasket

Norma Clamp

Norma Clamp

Norma Spring Clamp

Norma Clamp

Flat Washer

Tie-Rap 180 mm

Drain Tube

Intake Adaptor

Air Filter

Air Filter Maintenance Decal

Drain Tube

Vent Hose

Air Filter Adaptor

Air Intake Hose

Ring

Formed Hose

Formed Hose

Straight Fitting

Intake Silencer Cap Ass'y

Air Intake Hose

Air Intake Front

Heat Shield

Welded Air Box

Push Nut

Retainer Clip
