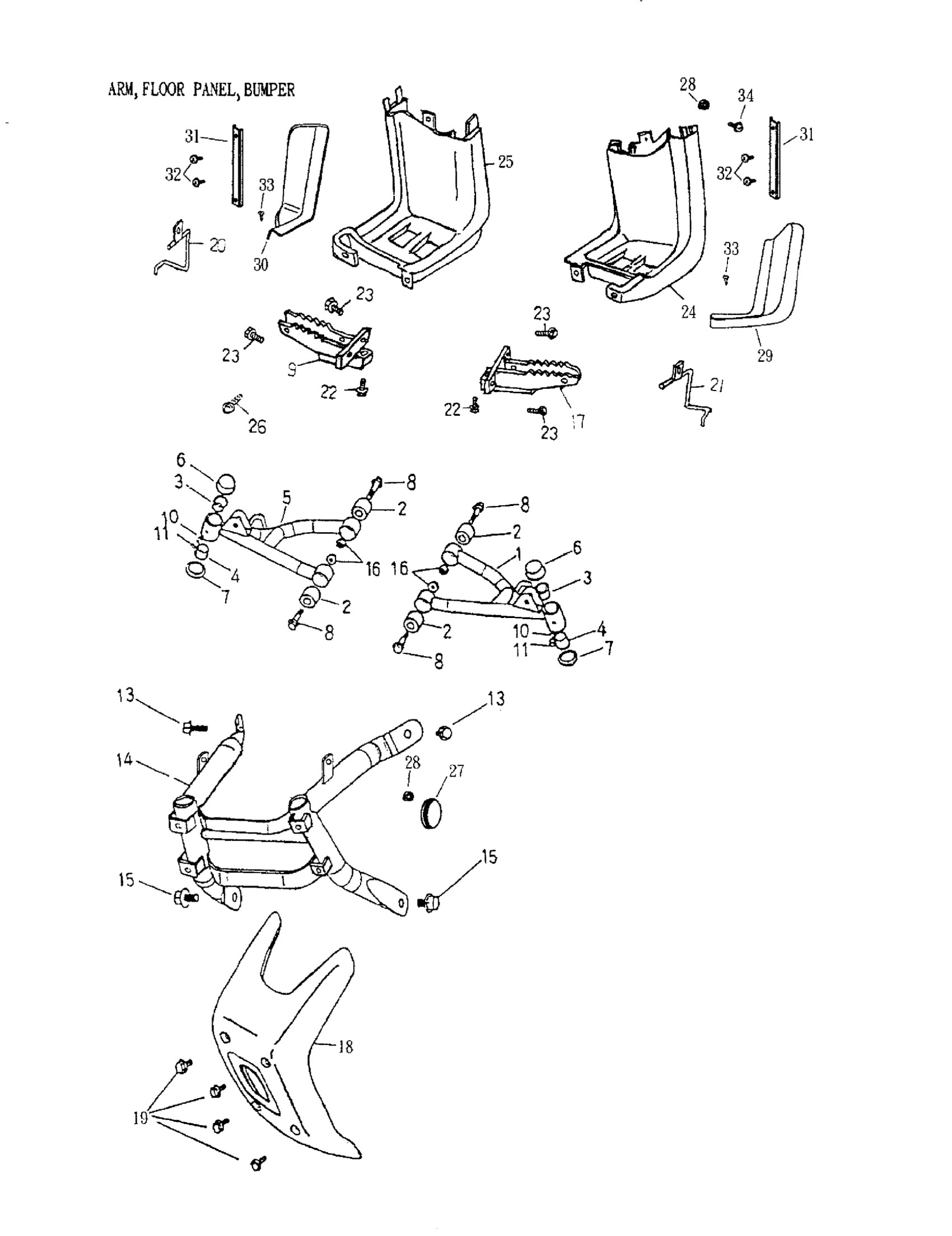

Can-Am Mini DS 90 4-strokes, 2002 09- Arm, Foot Rest, Bumper 172-17 Diagram

#

Description
Price

1

Left Suspension Arm

A51300145001

Unavailable

2

RUBBER BUSHING, 10 X 28 X 29 - Call your local BRP dealership

A96400102829

Unavailable

3

BUSH - Call your local BRP dealership

A51201145000

Unavailable

4

BUSH - Call your local BRP dealership

A51202145000

Unavailable

5

RIGHT SUSPENSION ARM - Call your local BRP dealership

A51200145001

Unavailable

6

WATERPROOF COVER - Call your local BRP dealership

A5120314500A

Unavailable

7

Dustproof Cover

A51204145000

Unavailable

8

HEXAGONAL WASHER FACE BOLT M10X48 - Call your local BRP dealership

A960001004814G

Unavailable

9

Right Step Bar

A50717152000

Unavailable

10

GREASE VALVE - Call your local BRP dealership

A9650106000

Unavailable

11

GREASE VALVE CAP - Call your local BRP dealership

A9650206000

Unavailable

12

HEXAGONAL WASHER FACE BOLT M10X20 - Call your local BRP dealership

A960001002014G

Unavailable

13

HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership

A960000601210G

Unavailable

14

Bumper

A50104166000

Unavailable

15

HEXAGONAL WASHER FACE BOLT M8X15 - Call your local BRP dealership

A960000801512G

Unavailable

16

Nylon Nut M10

V9035010000010LL

$2.30

17

Left Step Bar

A50718152000

Unavailable

18

Bumper Cover

A50107155000

Unavailable

19

HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership

A960000601210G

Unavailable

20

RH Fixed Pole

A64314152000

Unavailable

21

LH Fixed Pole

A64315152000

Unavailable

22

HEXAGONAL WASHER FACE BOLT M8X15 - Call your local BRP dealership

A960000801512G

Unavailable

23

Hex. Flange Bolt M8 X 20

A960000802012G

Unavailable

24

LH Rear Fender

A80115172000

Unavailable

25

LH REAR FENDER - Call your local BRP dealership

A80116172000

Unavailable

26

PAN FLAT HEAD PHILLIPS BOLT M6 X 15 - Call your local BRP dealership

A9370106015S

Unavailable

27

Reflector

A33741145000

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

LH Floor Panel Protect Cover

A64331172000

Unavailable

30

RH Floor Panel Protect Cover

A64332172000

Unavailable

31

FLOOR PROTECT COVER BRACKET - Call your local BRP dealership

A64333166000

Unavailable

32

PHILLIPS SCREW M6 X 12 - Call your local BRP dealership

A9370106012G

Unavailable

33

Tapping Screw Truss Head Phillips M5 X 1

A9390305012

Unavailable

34

PHILLIPS SCREW M6 X 15 - Call your local BRP dealership

A9370106015G

Unavailable
