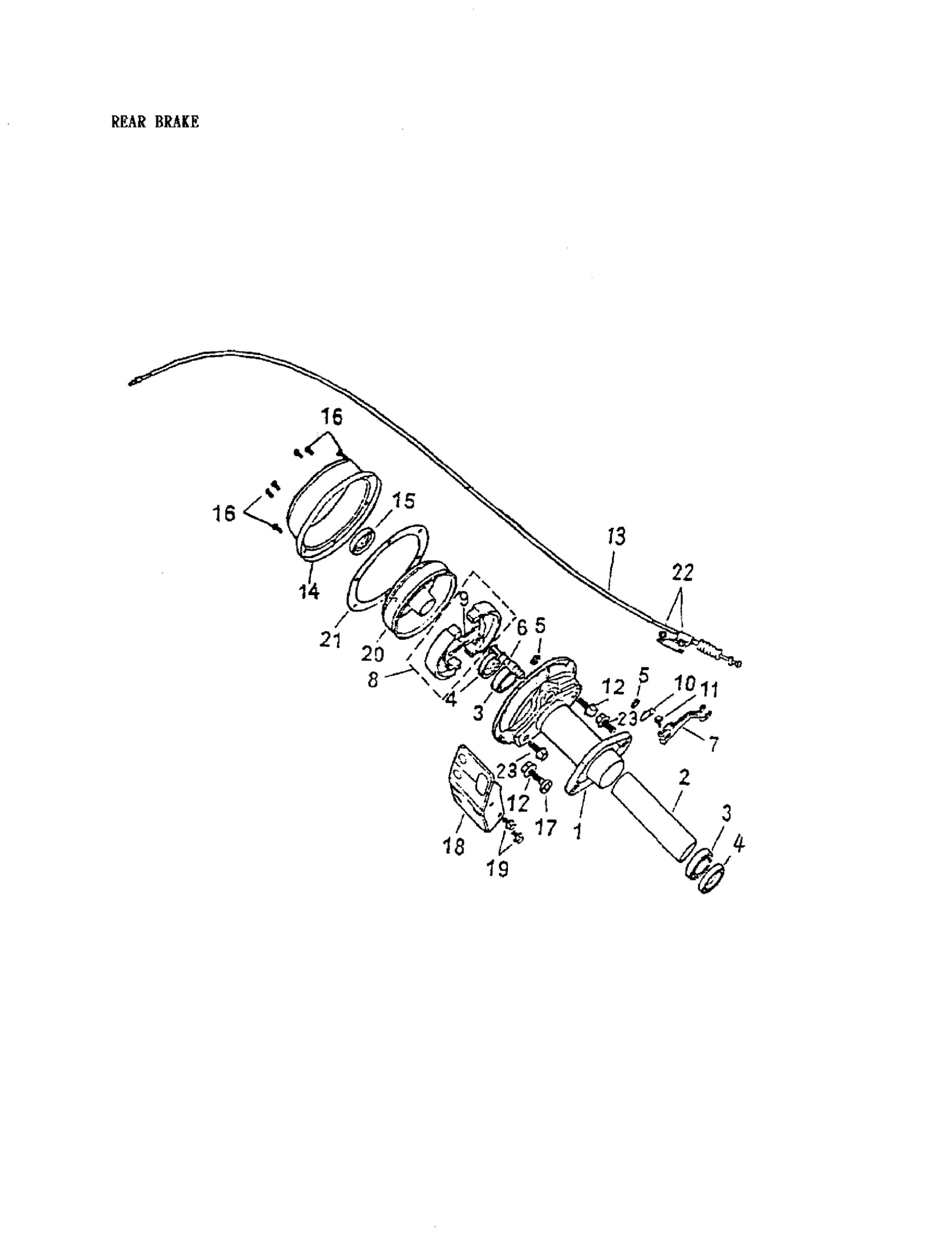

Can-Am Mini DS 90 4-strokes, 2002 06- Rear Brake 172-23 Diagram

#

Description
Price

1

Rear Brake Panel

A43101152000

Unavailable

2

Rear Brake Panel Spacer

A42313145000

Unavailable

3

Radial Ball Bearing

V961006006ZZ

$43.49

4

OIL SEAL - Call your local BRP dealership

A96500355511

Unavailable

5

OIL SEAL - Call your local BRP dealership

A9650014204

Unavailable

6

REAR BRAKE CAM SHAFT - Call your local BRP dealership

A43141145000

Unavailable

7

Rear Brake Arm

A43410152000

Unavailable

8

REAR BRAKE SHOE COMP. - Call your local BRP dealership

A43120145000

Unavailable

9

Shoe Strain Spring

A43151145000

Unavailable

10

Return Spring

A42617152000

Unavailable

11

HEXAGONAL WASHER FACE BOLT M6X32 - Call your local BRP dealership

A960000603210

Unavailable

12

Hex. Washer Face Bolt M12 X 27

A960001202717L

Unavailable

13

Rear Brake Cable

A43450152000

Unavailable

14

Rear Drum

V42610MAA010LL

$119.99

15

OIL SEAL - Call your local BRP dealership

A96500325211

Unavailable

16

Hex. Washer Face Bolt M6 X 12

A960000601208G

Unavailable

17

Plain Washer

A941011225050

Unavailable

18

Rear Brake Cover

A42613145000

Unavailable

19

HEXAGONAL WASHER FACE BOLT M8X12 - Call your local BRP dealership

A960000801212G

Unavailable

20

REAR DRUM - Call your local BRP dealership

A42601145000

Unavailable

21

REAR DRUM COVER GASKET - Call your local BRP dealership

A42614145000

Unavailable

22

Hex. Flange Nut M8

233081416

$1.15

23

HEXAGONAL WASHER FACE BOLT M12X22 - Call your local BRP dealership

A960001202217L

Unavailable
