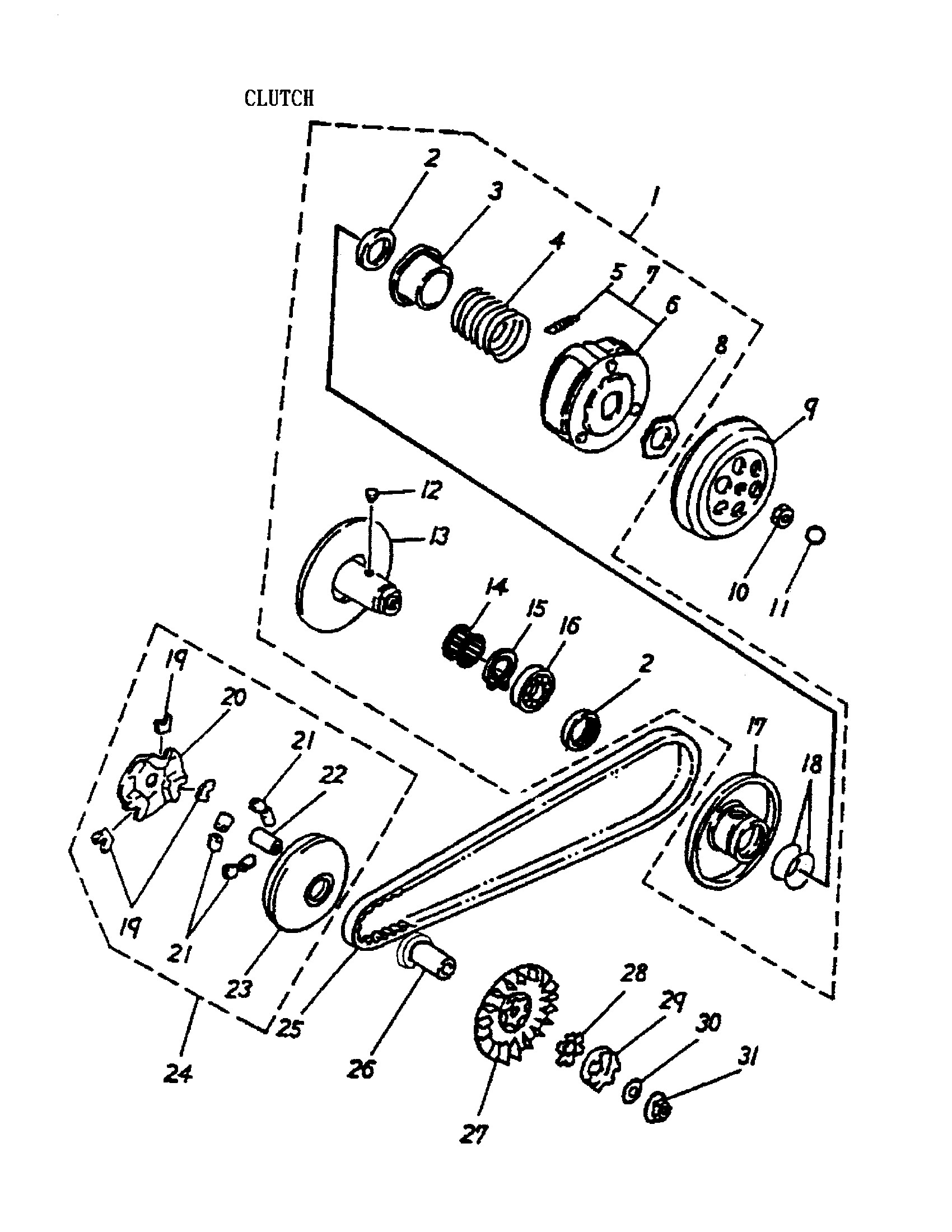

Can-Am Mini DS 90 2-strokes, 2002 05- Clutch 170-10 Diagram

#

Description
Price

1

DRIVE FACE ASSY - Call your local BRP dealership

A22000117000

Unavailable

2

OIL SEAL, 33 X 39 X 4 - Call your local BRP dealership

A9650033394

Unavailable

3

Secondary Spring Seat

A23237116000

Unavailable

4

COMPRESSION SPRING - Call your local BRP dealership

A23233117000

Unavailable

5

CLUTCH WEIGHT SPRING - Call your local BRP dealership

A22401116000

Unavailable

6

Clutch Carrier

A22350116000

Unavailable

7

CLUTCH WEIGHT SET - Call your local BRP dealership

A22535116000

Unavailable

8

Nut M28

A90202116000

Unavailable

9

CLUTCH COVER COMP. - Call your local BRP dealership

A22100116000

Unavailable

10

Hex. Nut M10

A9400110000

Unavailable

11

OIL RING - Call your local BRP dealership

A91313104000

Unavailable

12

Guide Pin

A23225116000

Unavailable

13

Secondary Fix Slot Wheel

A23200116000

Unavailable

14

Needle Bearing, hks-17 X 25 X 18

A96200172518

Unavailable

15

Internal Circlip

A94512240IR

Unavailable

16

Radial Ball Bearing, 6901lu

A961006901U

Unavailable

17

Secondary Sliding Slot Wheel

A23220116000

Unavailable

18

OIL RING - Call your local BRP dealership

A91336104000

Unavailable

19

Cam Plate Slider

A22132104000

Unavailable

20

Cam Plate

A22131117000

Unavailable

21

WEIGHT ROLLER - Call your local BRP dealership

A22121117000

Unavailable

22

Bushing

A96401212622

Unavailable

23

Primary Sliding Slot Wheel

A22110117000

Unavailable

24

SLIDING DRIVE FACE ASS'Y, A - Call your local BRP dealership

A22103117000

Unavailable

25

V-Belt

A23100117000

Unavailable

26

BUSHING - Call your local BRP dealership

A964011621375

Unavailable

27

PRIMARY FIX SHEAVE - Call your local BRP dealership

A22102117000

Unavailable

28

CLAW WASHER - Call your local BRP dealership

A22150104000

Unavailable

29

ONEWAY CLUTCH - Call your local BRP dealership

A22140104000

Unavailable

30

Cone Spring Washer

A22145104000

Unavailable

31

HEX.FLANGE NUT WITH SERRATION M10 - Call your local BRP dealership

A9405010000

Unavailable
