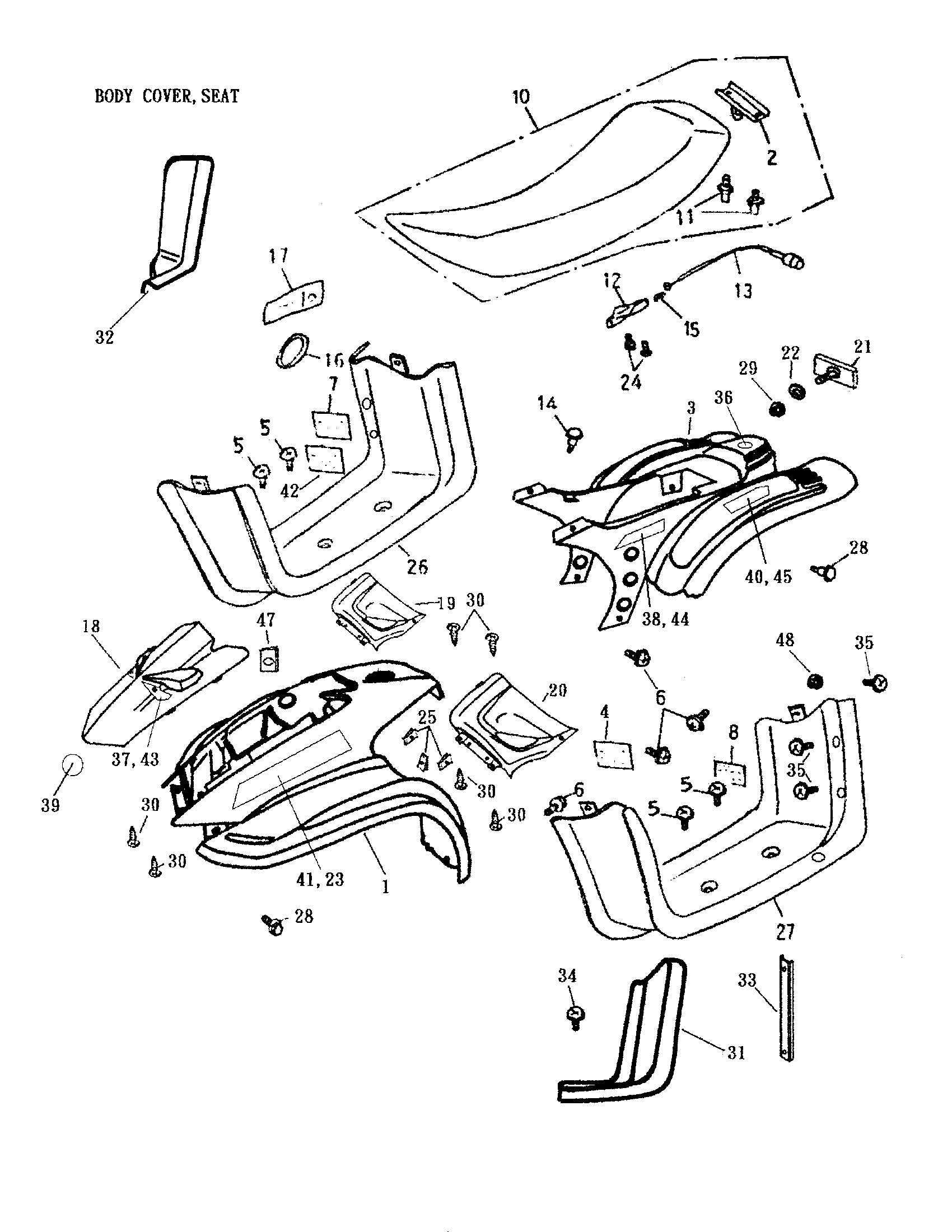

Can-Am Mini DS 50 2-strokes, 2002 09- Body Cover, Seat 166-15 Diagram

#

Description
Price

1

Front Cover

A64301166000

Unavailable

2

SEAT BRACKET - Call your local BRP dealership

A77201145000

Unavailable

3

REAR COVER - Call your local BRP dealership

A83400166000

Unavailable

4

WARNING DECAL ATV - Call your local BRP dealership

704900302

Unavailable

5

PAN FLAT HEAD PHILLIPS BOLT M6 X 15 - Call your local BRP dealership

A9370106015S

Unavailable

6

Pan Head Phillips Bolt M6 X 20

A9380006020S

Unavailable

7

WARNING LABEL UNDER 6 ENGLISH - Call your local BRP dealership | (Under 6, English)

704900300

Unavailable

8

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

9

U PLATE NUT, 6 MM - Call your local BRP dealership

A903440600A

Unavailable

10

Seat Ass'y

A7720014500B

Unavailable

11

SEAT BOLT - Call your local BRP dealership

A77203145000

Unavailable

12

Seat Lock Ass'y

A77230145000

Unavailable

13

SEAT RELEASE CABLE - Call your local BRP dealership

A77212145000

Unavailable

14

LADDER BOLT, 6 X 14 X 2.5 - Call your local BRP dealership

A901110601218C

Unavailable

15

Reset Spring

A77213145000

Unavailable

16

Rubber Strip

A91350145000

Unavailable

17

Tool Bag

A50120101000

Unavailable

18

Front Visor

A64302166000

Unavailable

19

RH Body Cover Trim

A83504166000

Unavailable

20

LH Body Cover Trim

A83604166000

Unavailable

21

REFLECTOR - Call your local BRP dealership

A33741133000

Unavailable

22

PLAIN WASHER - Call your local BRP dealership

A941010615010

Unavailable

23

RH Logo Decal

704900283

Unavailable

24

HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership

A960000601210G

Unavailable

25

U Plate Nut, 4 mm

A903440500A

Unavailable

26

RH.FLOOR PANEL - Call your local BRP dealership

A64312166000

Unavailable

27

LH Floor Panel

A64313166000

Unavailable

28

Ladder Bolt

A901110601418G

Unavailable

29

NYLON NUT M6 - Call your local BRP dealership

A9035006000

Unavailable

30

Tapping Screw Truss Head Phillips M5 X 1

A9390305012

Unavailable

31

LH FLOOR PANEL PROTECT COVER - Call your local BRP dealership

A64331166000

Unavailable

32

RH FLOOR PANEL PROTECT COVER - Call your local BRP dealership

A64332166000

Unavailable

33

FLOOR PROTECT COVER BRACKET - Call your local BRP dealership

A64333166000

Unavailable

34

PAN FLAT HEAD PHILLIPS BOLT M6 X 37 - Call your local BRP dealership

A9370106037G

Unavailable

35

PHILLIPS SCREW M6 X 15 - Call your local BRP dealership

A9370106015G

Unavailable

36

BRP Logo 48mm

516008738

$16.99

37

RH Front Cover Trim

704900291

Unavailable

38

Rear Cover Front Right Side Sticker

704900297B

Unavailable

39

BRP Logo 48mm

516008738

$16.99

40

Rear Cover Rear Left Side Sticker

704900298A

Unavailable

41

Front Cover Left Side Sticker

704900298

Unavailable

42

Down Right Sticker | Warning (Tire Pressure, English)

704900299

Unavailable

Down Right Sticker | Warning (Tire Pressure, French)

704900318

Unavailable

43

LH Front Cover Trim

704900292

Unavailable

44

Front Cover Left Side Sticker

704900298

Unavailable

45

Rear Cover Rear Right Side Sticker

704900297A

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Cdi Bracket

A54137166000

Unavailable

48

Front Cover Decal Kit

A87700166000

Unavailable
