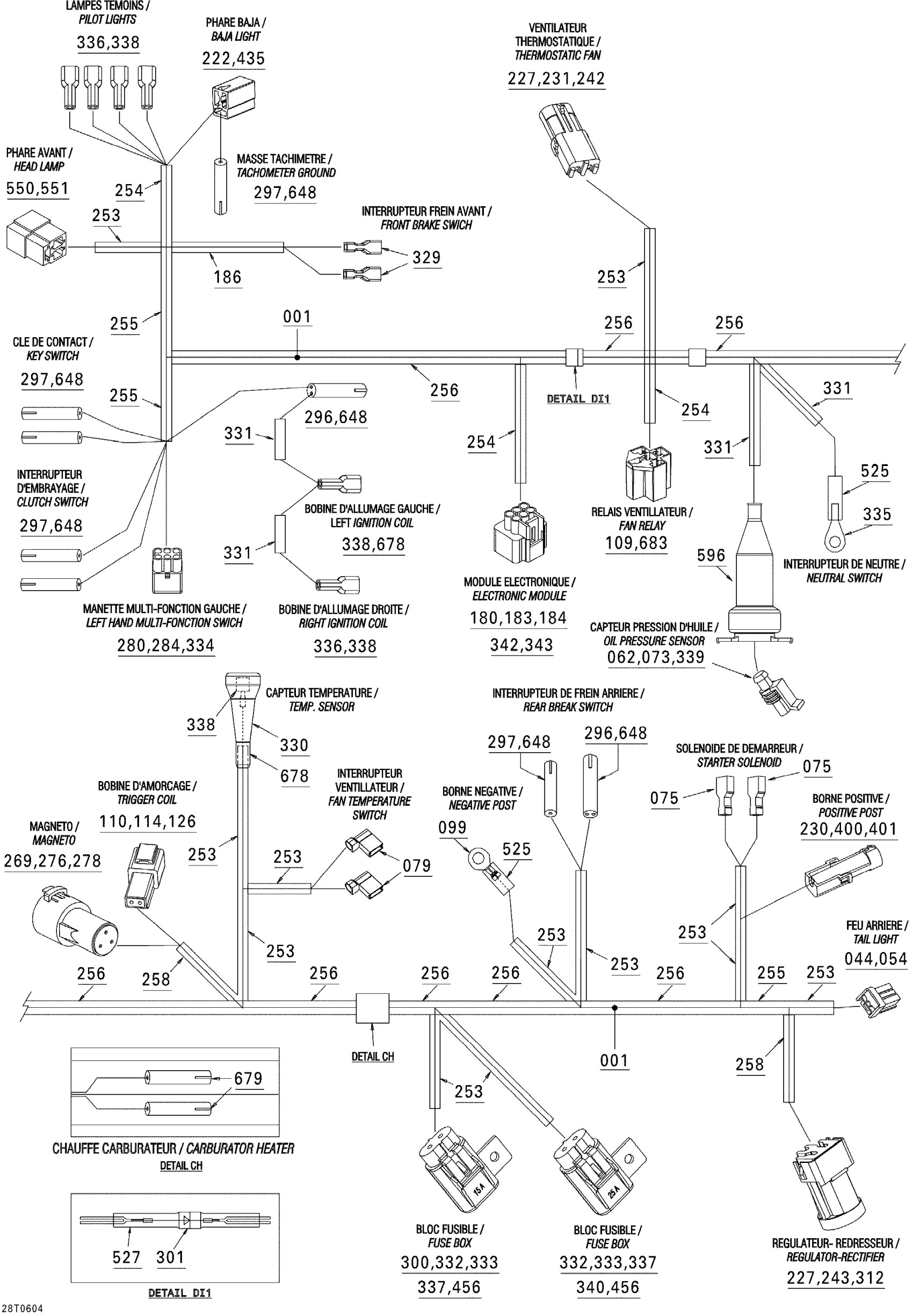

Can-Am DS 650 X, 2006 10- Main Harness Diagram

#

Description
Price

001

Harness Ass'y | Includes 1 to 683

710000669

Unavailable

044

Female Terminal

515175231

$4.39

054

Female Housing, 3 Circuits

515175495

$16.18

062

Female Terminal

278001014

$3.28

073

Wire Seal

278001013

$3.28

075

Female Terminal

409010700

$5.39

079

Female Terminal

710000038

$4.55

099

Open Barrel

278000992

$2.21

109

Female Housing, 5 Circuits

409209900

$9.59

110

Male Terminal

278000631

$4.39

114

Male Housing, 2 Circuits

409206900

$9.59

126

Male Lock, 2 Circuits

409207500

$3.19

180

FEMALE TERMINAL - Call your local BRP dealership

278001638

Unavailable

183

WIRE SEAL - Call your local BRP dealership

710000189

Unavailable

184

CAP - Call your local BRP dealership

710000668

Unavailable

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

222

Female Housing

409204300

Unavailable

227

Male Terminal

409004300

$5.61

230

Female Housing, 1 Circuit

278000161

$9.59

231

Female Housing, 2 Circuits

278000217

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

258

Tubing 10 MM 1000MM Long

219704407

$2.79

269

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

276

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

278

SEAL - Call your local BRP dealership

409208500

Unavailable

280

Female Terminal

409012100

$4.55

284

Seal

409012300

$4.54

296

Insulated Sheath

278000770

$7.90

297

Insulated Sheath

278001007

$3.58

300

Fuse, 15 Amperes

278000343

$3.28

301

Diode

409012700

$11.12

312

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

329

Female Terminal

710000082

$7.69

330

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

332

Fuse Holder Cap

278001326

$7.69

333

Fuse Holder

278001325

$8.79

334

Female Housing, 6 Circuits

710000081

$8.79

335

OPEN BARREL - Call your local BRP dealership

710000112

Unavailable

336

Rubber Envelope Terminal

710000115

Unavailable

337

Female Terminal

710000113

$6.99

338

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

339

Male Housing, 1 Circuit

278001012

$16.86

340

Fuse, 25 Amperes

278001443

$3.28

342

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000190

Unavailable

343

LOCK, 6 CIRCUITS - Call your local BRP dealership

710000191

Unavailable

400

MALE TERMINAL - Call your local BRP dealership

278001576

Unavailable

401

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

435

FEMALE TERMINAL - Call your local BRP dealership

409009500

Unavailable

456

Cushion

278000805

$3.28

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Shrink Tubing

710000484

Unavailable

550

FEMALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000499

Unavailable

551

MALE TERMINAL - Call your local BRP dealership

710000500

Unavailable

596

CAP - Call your local BRP dealership

710000670

Unavailable

648

Female Terminal | DS 650 X

278001009

$3.19

678

Shrink Tubing

710000750

Unavailable

679

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

683

Terminal

710000766

Unavailable
