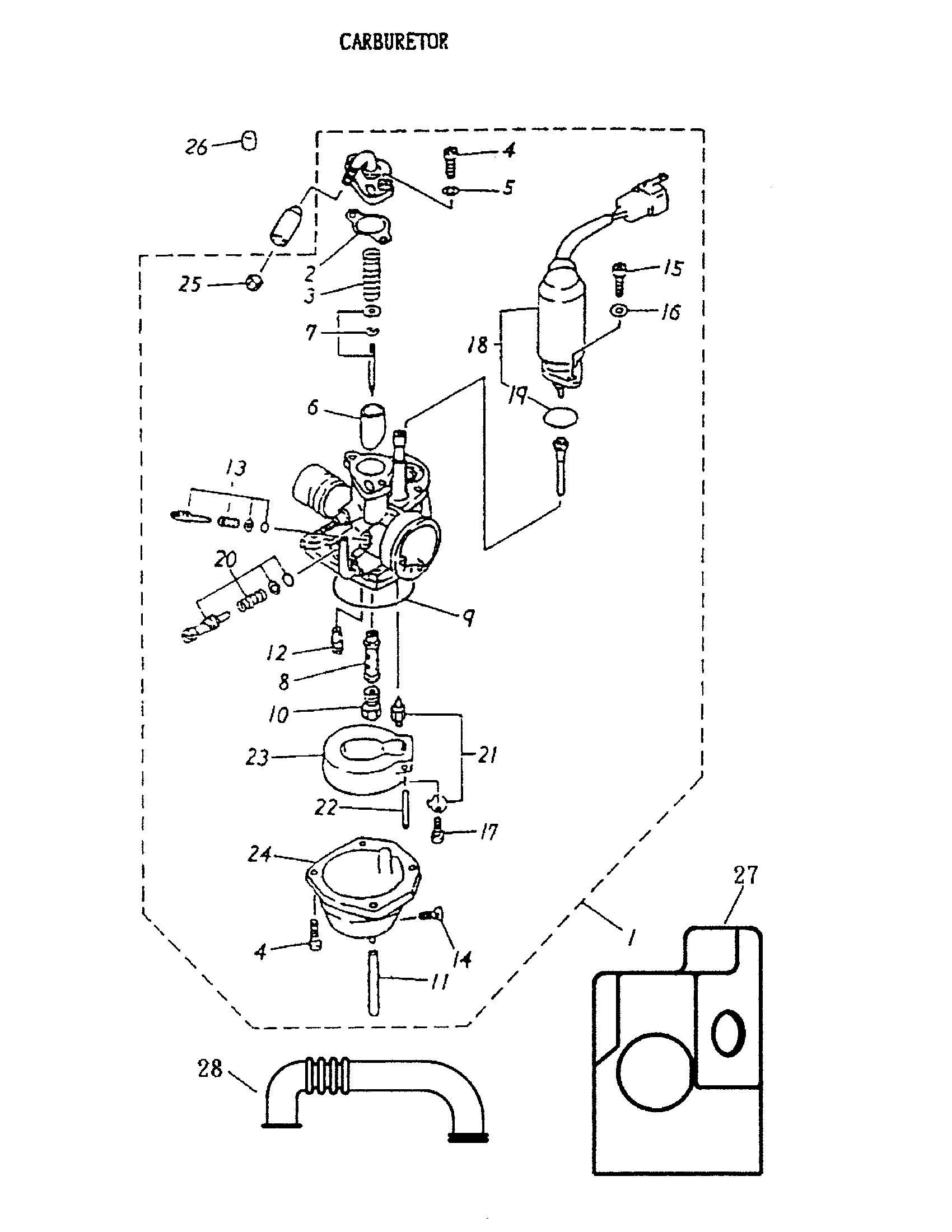

Can-Am Mini DS 50 2-strokes, 2002 02- Carburetor 166-06 Diagram

#

Description
Price

1

Carburetor Ass'y

A1610011600A

Unavailable

2

Carburetor Gasket

A16101116000

Unavailable

3

Throttle Valve Spring

A16102116000

Unavailable

4

PAN PHILLIPS BOLT M4 X 14 - Call your local BRP dealership

A9350004014

Unavailable

5

Spring Washer

A941110407010

Unavailable

6

THROTTLE VALVE - Call your local BRP dealership

A16103116000

Unavailable

7

NEEDLE SET - Call your local BRP dealership

A16104116000

Unavailable

8

NEEDLE NOZZLE - Call your local BRP dealership

A16105116000

Unavailable

9

FLOAT CHAMBER SEAL - Call your local BRP dealership

A16106116000

Unavailable

10

Main Nozzle, 75

A16108116000

Unavailable

11

Over Flow Tube

A16109116000

Unavailable

12

PILOT JET - Call your local BRP dealership

A16110116000

Unavailable

13

AIR ADJUST SCREW SET - Call your local BRP dealership

A16115116000

Unavailable

14

Drain Plug

A16111116000

Unavailable

15

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

16

Spring Washer

A941110406510

Unavailable

17

Pan Phillips Bolt M3 X 6

A9350003008

Unavailable

18

PLUNGER STARTER - Call your local BRP dealership

A17215116000

Unavailable

19

OIL RING - Call your local BRP dealership

A91314116000

Unavailable

20

Throttle Screw Set

A16114116000

Unavailable

21

NEEDLE VALVE ASS'Y - Call your local BRP dealership

A1611711600A

Unavailable

22

Float Pin

A16119116000

Unavailable

23

FLOAT - Call your local BRP dealership

A16118116000

Unavailable

24

Float Chamber

A16107116000

Unavailable

25

Cable Adjust Nut

A16113116000

Unavailable

26

Purge Hole Plug

A42615145000

Unavailable

27

CARBURETOR SHROUD - Call your local BRP dealership

A16140116000

Unavailable

28

TUBE BREATHER - Call your local BRP dealership

A11211145000

Unavailable
