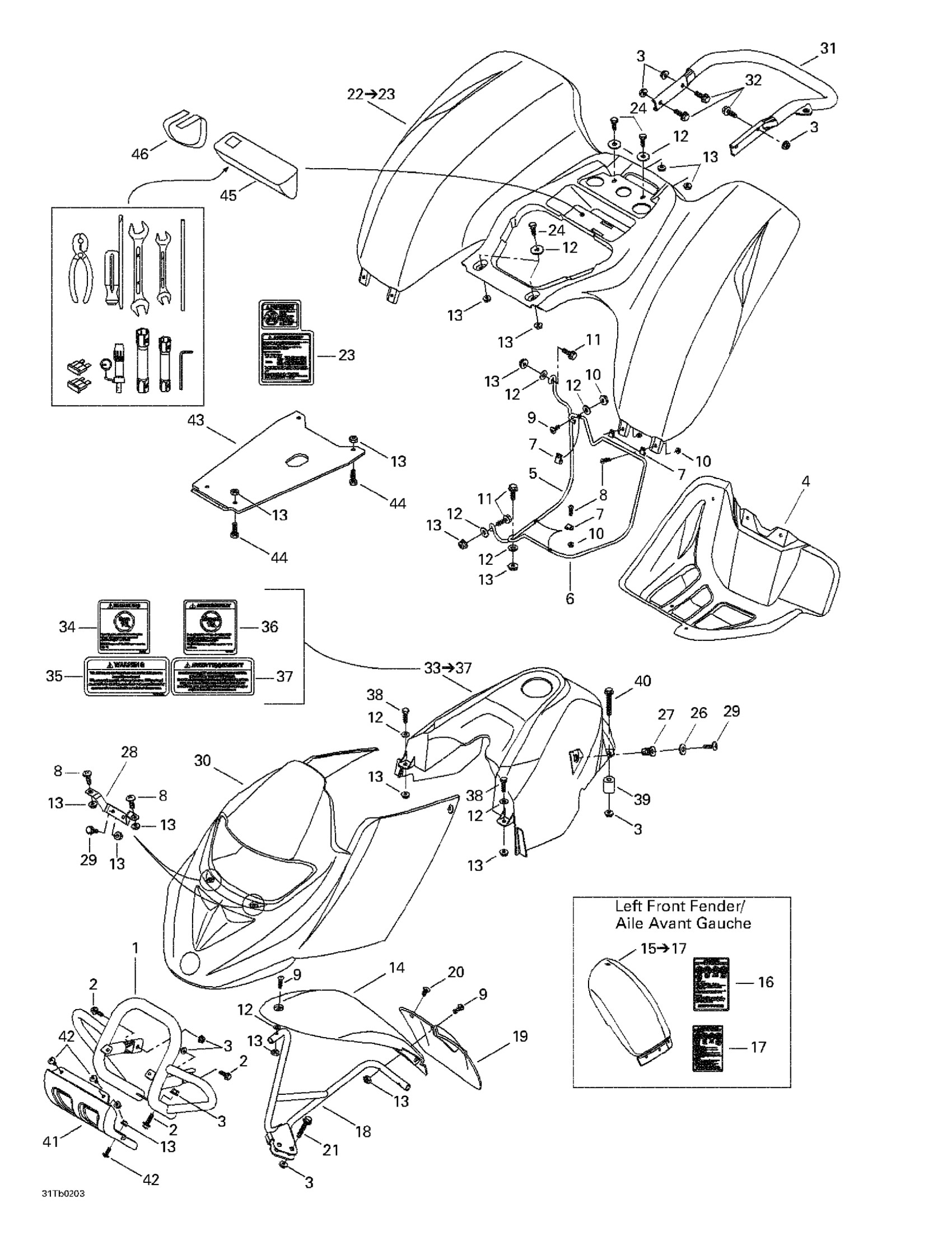

Can-Am DS 650, 2002 09- Body Diagram

#

Description
Price

1

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

2

Hex. Flange Screw M8 X 25

207682544

$1.35

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

RH FOOT PROTECTOR - Call your local BRP dealership

705000301

Unavailable

LH FOOT PROTECTOR - Call your local BRP dealership

705000302

Unavailable

5

RH Support

705000116

Unavailable

LH Support

705000119

Unavailable

6

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

Unavailable

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

Unavailable

7

Gear Clamp

293650111

Unavailable

8

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

9

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

10

Elastic Stop Nut M6

232561414

$0.55

11

Hex. Flange Screw M6 X 25

207662544

$0.64

12

Flat Washer

224061201

$1.37

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

RH Front Fender (DS Yellow)

705000270

Unavailable

RH FRONT FENDER, BLACK - Call your local BRP dealership | DS 650 X

705000360

Unavailable

15

LH Front Fender Kit (DS Yellow) | Includes 15 - 17.

703500126

Unavailable

LH Front Fender Kit, Black | DS 650 X / Includes 8 to 10

703500127

Unavailable

16

WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership

704901878

Unavailable

17

Warning Decal, Death And Injuries

704900002

Unavailable

18

RH Fender Support

705000150

Unavailable

LH Fender Support

705000151

Unavailable

19

RH FRONT MUDGUARD - Call your local BRP dealership

705000095

Unavailable

LH FRONT MUDGUARD - Call your local BRP dealership

705000096

Unavailable

20

Dart

414939500

$1.04

21

Hex. Flange Screw M8 X 35

207683544

$1.69

22

Rear Fender Kit (DS Yellow) | Includes 22 - 23.

703500124

Unavailable

Rear Fender Kit | DS 650 X / Includes 11 to 13

703500125

Unavailable

23

Warning Decal, Tire And Passenger

704900102

Unavailable

Warning Label Ass'y (English) | (Passenger and tire Pressure)

709900040

Unavailable

24

Hex. Screw M6 X 18

207161844

$0.76

25

Phillips Screw M6 X 20, Scotch Grip

250000043

Unavailable

26

BUSHING - Call your local BRP dealership

506117300

Unavailable

27

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

28

FASCIA BRACKET, BLACK - Call your local BRP dealership

705000146

Unavailable

29

Hex. Flange Screw M6 X 16

207661644

$0.74

30

Front Facia (DS Yellow)

705000273

Unavailable

Front Fascia

705000363

Unavailable

31

Rear Bumper

705000143

Unavailable

32

Hex. Flange Screw M8 X 20

207682044

$1.15

33

Tank Cover Kit | Includes 33 - 37.

703500128

Unavailable

34

Warning Decal, Under 16 Years Old

704900011

Unavailable

35

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704900089

Unavailable

36

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

37

Warning Decal,, Performance

704900105

Unavailable

38

Hex. Screw M6 X 30

207063044

$1.26

39

SPACER - Call your local BRP dealership

705000114

Unavailable

40

Hex. Flange Screw M8 x 60

207686044

$3.07

41

Protective Plate

705000303

Unavailable

42

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

43

Skid Plate | DS 650

705000304

Unavailable

44

Hex. Flange Screw M6 X 20

207662044

$2.00

45

TOOL KIT - Call your local BRP dealership

529035782

Unavailable

46

STRAP - Call your local BRP dealership

708200008

Unavailable
