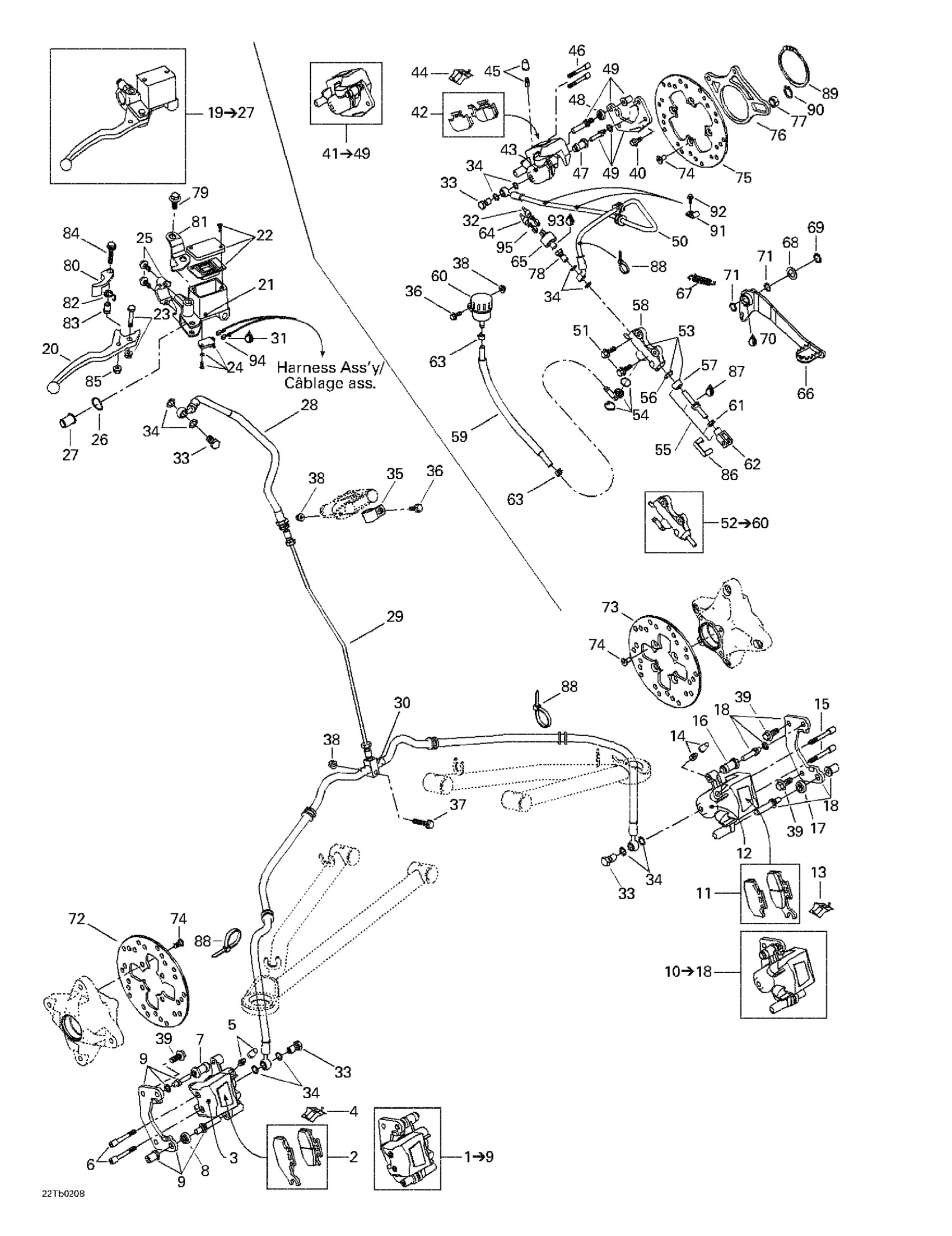

Can-Am DS 650 Baja, 2002 06- Hydraulic Brake Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 To 9

705600043

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

RH BRAKE SUPPORT - Call your local BRP dealership

705600062

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 To 18

705600044

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

LH BRAKE SUPPORT - Call your local BRP dealership

705600061

Unavailable

19

MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600045

Unavailable

20

ARM LEVER - Call your local BRP dealership

705600057

Unavailable

21

Piston Kit

705600058

Unavailable

22

Cap Set

705600084

$24.99

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

28

Brake Handle Hose

705600227

Unavailable

29

Vertical Hose

705600047

Unavailable

30

Flexible Hose

705600228

Unavailable

31

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

32

Insulated Sheath

278001007

$3.58

33

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

34

Washer

414920600

$1.90

35

Open Clamp

705600040

$13.24

36

Hex. Flange Screw M6 X 20

207662044

$2.00

37

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

40

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

41

Rear Caliper | Includes 39 To 47

705600599

$301.99

42

Brake Pad Kit

705600014

$51.99

43

Piston Set

705600078

$38.99

44

Spring

705600079

$15.81

45

Bleeding Screw

705600080

$16.87

46

Pin Set (2)

705600081

$20.49

47

Compression Boot

705600082

$10.06

48

Compression Boot

705600083

$10.06

49

BRAKE SUPPORT ASS'Y - Call your local BRP dealership

705600017

Unavailable

50

Rear Flexible Hose

705600229

Unavailable

51

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

52

Master Cylinder Ass'y

705600050

Unavailable

53

Piston Set

705600063

Unavailable

54

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

55

Rod Ass'y (Items 56,57,61 and 62 Include

705600189

Unavailable

56

Circlip

705600068

Unavailable

57

Compression Boot

705600090

Unavailable

58

Master Cylinder

705600117

Unavailable

59

HOSE ASS'Y - Call your local BRP dealership

705600190

Unavailable

60

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

61

Hex. Jam Nut M8

232180600

$0.67

62

Yoke

705600100

Unavailable

63

Spring Clamp

414415200

$0.88

64

Insulated Sheath

278000770

$7.90

65

Interrupteur *Brake Switch

710001345

$36.99

66

Brake Pedal

705600094

Unavailable

67

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

68

WASHER - Call your local BRP dealership

503107800

Unavailable

69

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

70

Synthetic Grease, 400 G

293550010

Unavailable

71

O-RING - Call your local BRP dealership

293300053

Unavailable

72

RH BRAKE DISC - Call your local BRP dealership

705600042

Unavailable

73

LH BRAKE DISC - Call your local BRP dealership

705600093

Unavailable

74

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

75

Brake Disc

705500059

Unavailable

76

Caliper Support

705500066

Unavailable

77

Caliper Guide

705500068

Unavailable

78

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

79

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

80

LEVER ARM - Call your local BRP dealership

705600095

Unavailable

81

Lever Stopper

705600096

Unavailable

82

SPRING - Call your local BRP dealership

705600055

Unavailable

83

SNAP RING - Call your local BRP dealership

705600097

Unavailable

84

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

86

Pin Kit

219702305

$34.99

87

Not Available As Spare Part - Friction Washer

Unavailable

88

Tie-Rap 180 mm

414115200

$0.11

89

CIRCLIP - Call your local BRP dealership

293370014

Unavailable

90

CIRCLIP - Call your local BRP dealership

293370015

Unavailable

91

CLIP - Call your local BRP dealership

414351600

Unavailable

92

Hex. Flange Screw M6 X 16

210261650

$1.67

93

Was 293800013 Loctite 56765

219704454

$65.99

94

Female Terminal

710000082

$7.69

95

Female Terminal | DS 650 X

278001009

$3.19
