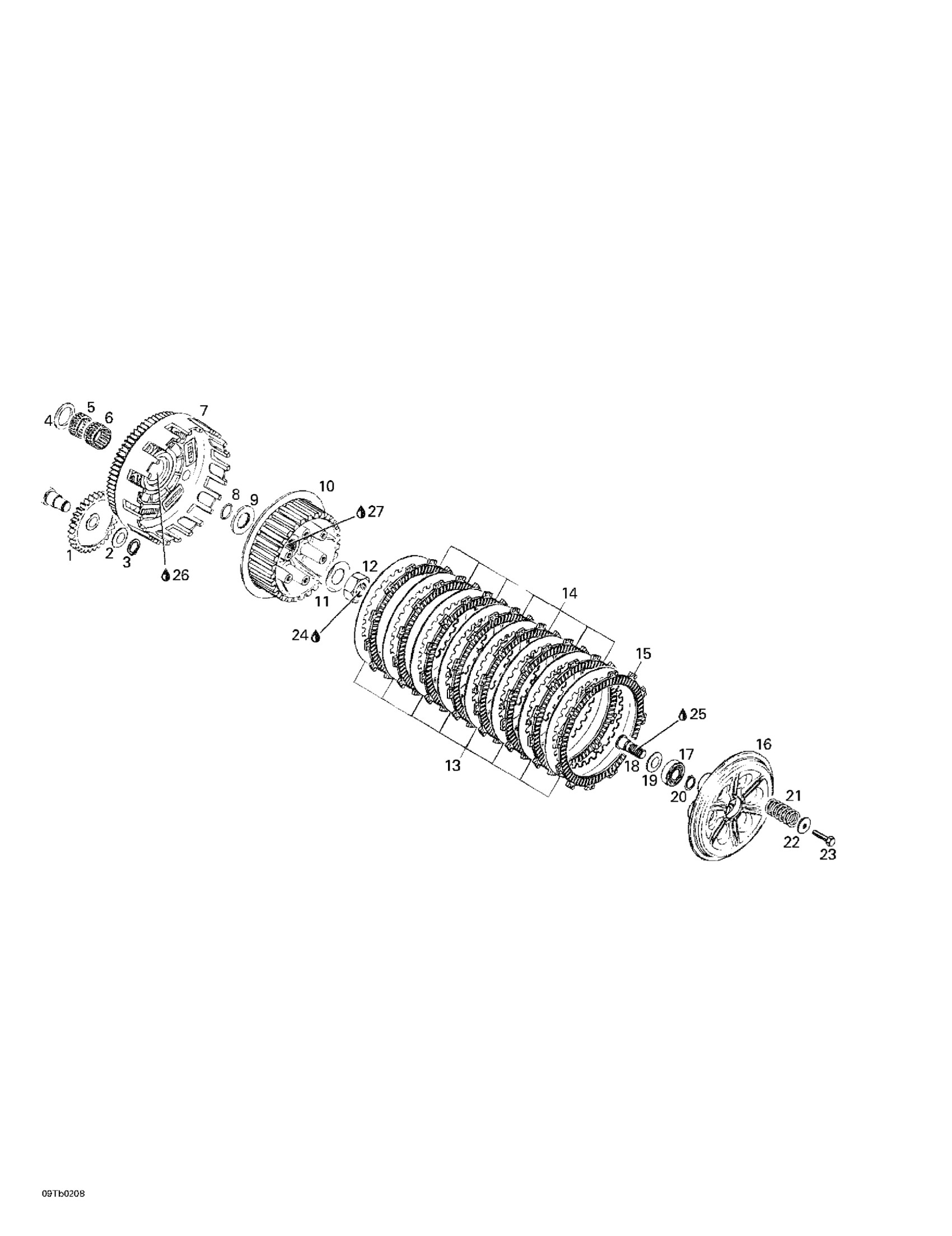

Can-Am DS 650 Baja, 2002 05- Clutch Diagram

#

Description
Price

1

Oil Pump Gear

711235272

Unavailable

2

Thrust Washer

711227401

Unavailable

3

Retaining Ring

711945650

Unavailable

4

Thrust Washer

711427460

Unavailable

5

Needle Bearing

420932930

$27.49

6

Needle Bearing

711232890

Unavailable

7

Primary Drive Ass'y

711296365

Unavailable

8

O-Ring

420250890

$3.06

9

Thrust Washer

711244950

Unavailable

10

Clutch Hub

711259117

Unavailable

11

Tab Washer

711245325

Unavailable

12

Nut M18

711242607

Unavailable

13

Plate 1,5 mm

420259262

$18.49

14

Friction Plate 3,5 mm

420259210

$16.49

15

FRICTION PLATE 3,5 MM - Call your local BRP dealership

420259215

$22.49

16

Pressure Plate

711259122

Unavailable

17

Ball Bearing 6002

711232262

Unavailable

18

Rack-Actuation Clutch

711259202

Unavailable

19

Thrust Washer

711227401

Unavailable

20

Retaining Ring

711945650

Unavailable

21

CLUTCH SPRING - Call your local BRP dealership

420239162

Unavailable

22

Washer

711244020

Unavailable

23

Hex. Screw M6 X 25

207162544

$1.15

24

Loctite 243, 10 ml

293800060

$21.49

25

Grease, Super Lube

293550030

$28.99

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Was 420297616 Klueber Grease, 60g

219704464

$23.99
