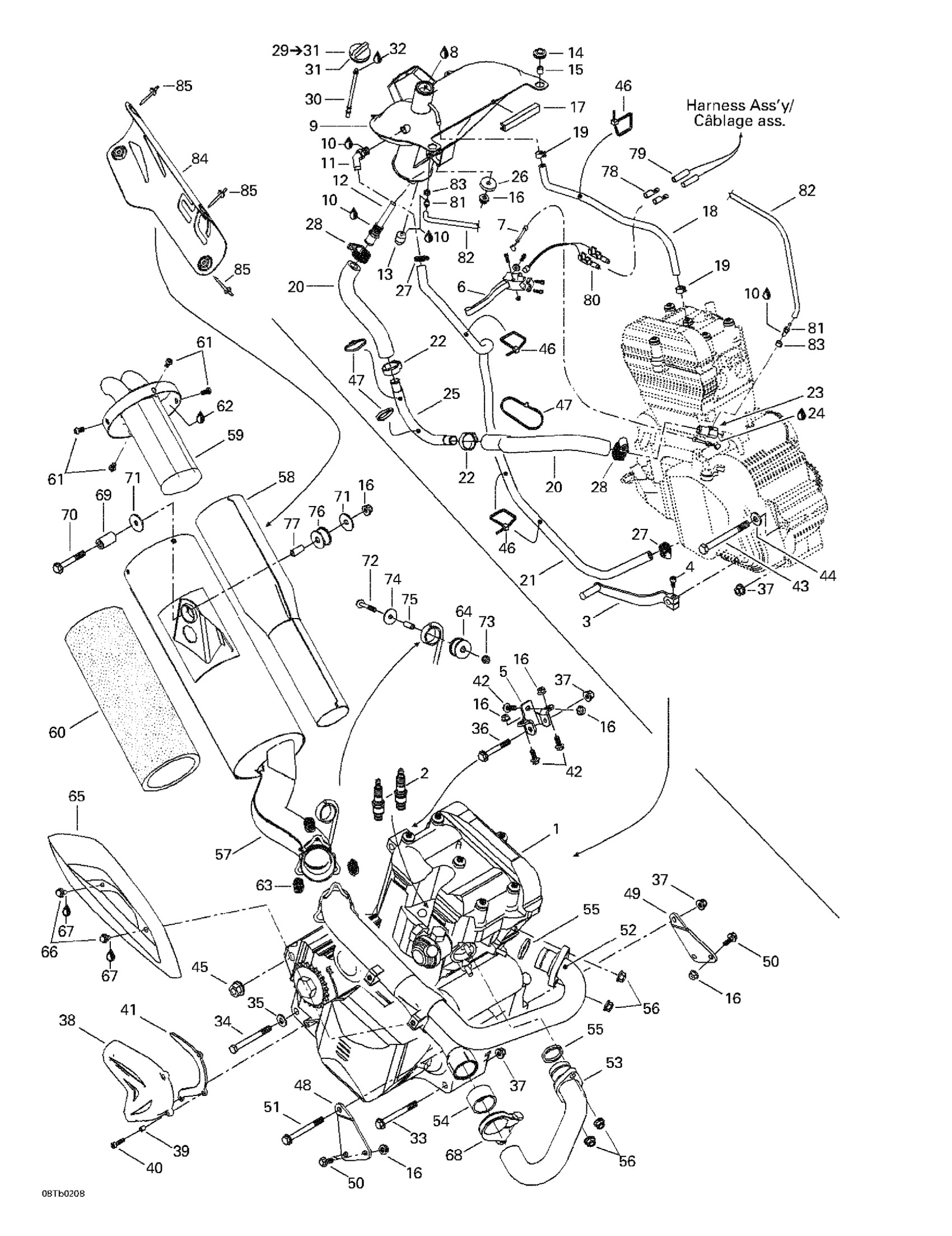

Can-Am DS 650 Baja, 2002 01- Exhaust And Engine System Diagram

#

Description
Price

1

Rotax 4 Strokes Engine «654» | Includes 1 to 2

707000214

Unavailable

2

Spark Plug, NGK/DR8EA

707000008

$4.23

3

SHIFTER PEDAL - Call your local BRP dealership

711248317

Unavailable

4

Socket Head Screw M6 X 20

205062047

Unavailable

5

Support Bracket

707000029

Unavailable

6

Shifter Lever | Includes 5 to 6

707000035

Unavailable

7

SHIFTER LEVER CABLE - Call your local BRP dealership

707000027

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

OIL TANK - Call your local BRP dealership

707000146

Unavailable

10

Was 293800013 Loctite 56765

219704454

$65.99

11

Angular Tube

420922242

$14.83

12

STRAINER - Call your local BRP dealership

707000076

Unavailable

13

Magnetic Cap

250000053

Unavailable

14

Grommet

293720062

$5.39

15

Spacer

707000058

$13.49

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

18

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

19

Spring Clamp

414415200

$0.88

20

HOSE 15.8 MM, METER - Call your local BRP dealership

707000098

Unavailable

21

HOSE 9.5 MM, METER - Call your local BRP dealership

709000022

Unavailable

22

Crimp Clamp

293650099

$4.29

23

Adaptor

707000185

Unavailable

24

Loctite 277, 10 ml

293800073

Unavailable

25

INTAKE TUBE - Call your local BRP dealership

707000059

Unavailable

26

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

27

Tridon Gear Clamp

293650171

$3.09

28

Norma Gear Clamp

293650124

$7.37

29

Oil Cap Ass'y | Includes 42 to 43

707000047

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

O-RING - Call your local BRP dealership

293250009

Unavailable

32

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

33

Hex. Screw M10 X 110, Scotch Grip

230501046

$8.11

34

Hex. Screw M10 X 120, Scotch Grip

230202046

Unavailable

35

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

36

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

37

Hex. Flange Elastic Nut M10

233201436

$2.11

38

Pinion Cover

707000024

Unavailable

39

Spacer

707000065

$6.67

40

Socket Head Screw M6 X 25

205062544

$1.15

41

CHAIN GUARD - Call your local BRP dealership

707000163

Unavailable

42

Hex. Flange Screw M8 X 25

207682544

$1.35

43

HEX. SCREW M14 X 150, SCOTCH GRIP - Call your local BRP dealership

230275044

Unavailable

44

Flat Washer 14 mm

234071410

$1.47

45

ELASTIC FLANGED NUT M14 - Call your local BRP dealership

233271414

Unavailable

46

Tie-Rap 180 mm

414115200

$0.11

47

Tie Wrap 368 mm

293750008

$1.04

48

RH Support

707000071

Unavailable

49

LH Support

707000072

Unavailable

50

Hex. Flange Screw M8 X 25

207682544

$1.35

51

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

52

LH TUNED PIPE - Call your local BRP dealership

707600019

Unavailable

53

RH TUNED PIPE - Call your local BRP dealership

707600196

Unavailable

54

PIPE GASKET - Call your local BRP dealership

707600020

Unavailable

55

PIPE GASKET - Call your local BRP dealership

707600069

Unavailable

56

Hex. Flange Nut M8

233081416

$1.15

57

TUNED PIPE - Call your local BRP dealership | DS 650 X

707600188

Unavailable

58

Perforated Tube | DS 650

707600053

Unavailable

59

END PIECE - Call your local BRP dealership | DS 650

707600066

Unavailable

60

Insulator | DS 650

707600089

Unavailable

61

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

62

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

63

Spring

415107100

$6.35

64

Anti-Vibration Rubber

707600702

$8.57

65

Heat Shield

707600191

Unavailable

66

Hex. Flange Screw M6 X 12

207661244

$2.11

67

Loctite 271, 10 ml

293800005

$26.99

68

GEAR CLAMP - Call your local BRP dealership

293650093

Unavailable

69

SPACER - Call your local BRP dealership

707600049

Unavailable

70

Hex. Flange Screw M8 X 70

207687044

$7.41

71

Flat Washer

224081301

$0.88

72

Hex. Flange Screw M6 X 40

207664044

$2.22

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

74

Washer

224060251

$0.58

75

Spacer

707600070

$12.16

76

Vibration Damper

707603323

$11.65

77

Bushing

293900106

$4.55

78

Female Terminal | DS 650 X

278001009

$3.19

79

Insulated Sheath

278001007

$3.58

80

Male Terminal

278000230

$4.39

81

Hose Adaptor

707000240

Unavailable

82

HOSE 3.5 MM, METER - Call your local BRP dealership

707000243

Unavailable

83

NORMA CLAMP - Call your local BRP dealership

293650120

Unavailable

84

Heat Shield | DS 650 X

707600179

Unavailable

85

Pop Rivet 3/16”

390910000

$0.57
