Description

Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Gasket

420430126

$41.49

6>9

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Outer Haft

420280467

$329.99

11>14

Centrifugal Lever Set | Includes 14a to 17

420248558

$180.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Compression Spring, Drive Pulley

420238610

$26.49

16

Seat Spring

420627578

$35.99

17

Friction Washer

420460430

$13.99

18

Drive Pulley Clutch

420257195

$114.99

19

Ball Bearing

420632377

$49.99

20

Retaining Ring

420245951

$5.31

21

Inner Half

420280374

$339.99

22

Spring Sleeve

420229577

$18.49

23

Spring

420239134

$3.06

24

Thrust Washer

420627920

$7.51

25

Spring Washer

420627768

$21.99

26

Hex. Screw M12 X 140

420641859

$24.99

27

Driven Pulley Cam

420280199

$95.49

28

Driven Pulley Shaft

420220913

$134.99

29

Compression Spring

420238176

$35.99

30

Inner Half Ass'y | Includes 33 to 35

420248233

$308.99

31>34

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Ball Bearing

420932421

$28.49

33

Torque Gear

420660124

$23.49

34

Retaining Ring

420245911

$5.31

35

V-Belt

422280366

$179.99

36

Thrust Washer

420627590

$16.99

37

Hex. Screw M10 X 110

420441485

$12.18

38

Variator Cover

420611397

$219.99

39

Hex Screw M6 X 30

420440568

$8.58

40

Drain Plug Kit

707001179

$9.63

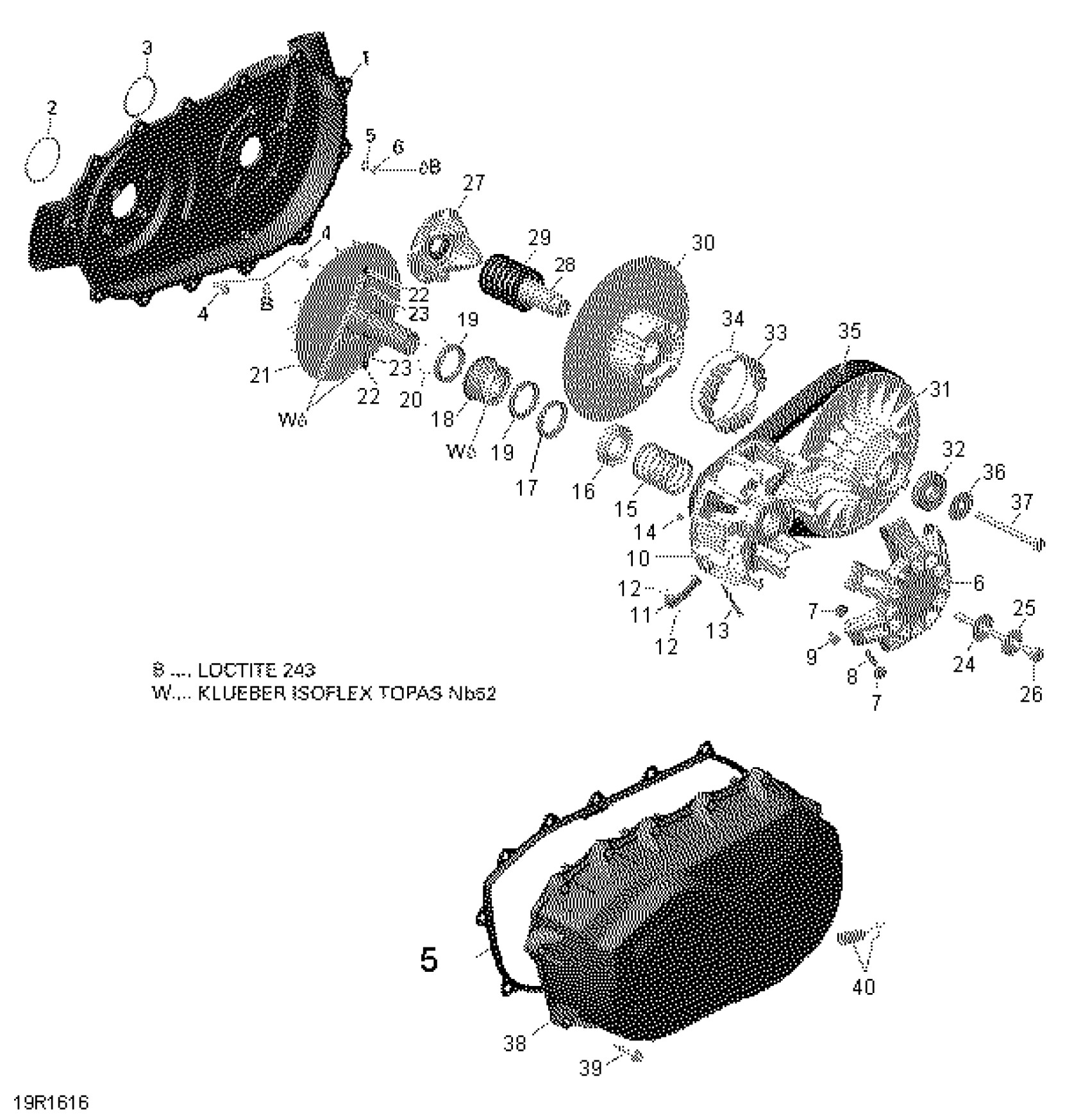

Can-Am 004 - Outlander - 650 EFI - PRO Package 0003PGA00 0003PGB00 0003TGA00 0003TGB00 05- Transmission - 650 EFI Diagram

CVT Air Guide

O-Ring

O-Ring

Hex.Screw M6 X 20

Gasket

Governor Cup Ass'y | Includes 6 to 9

Slider Shoe Set

Roller Axle

Roller

Outer Haft

Centrifugal Lever Set | Includes 14a to 17

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Compression Spring, Drive Pulley

Seat Spring

Friction Washer

Drive Pulley Clutch

Ball Bearing

Retaining Ring

Inner Half

Spring Sleeve

Spring

Thrust Washer

Spring Washer

Hex. Screw M12 X 140

Driven Pulley Cam

Driven Pulley Shaft

Compression Spring

Inner Half Ass'y | Includes 33 to 35

Outer Half Pulley Ass'y | Includes 27 to 32

Not Available As Spare Part - Friction Washer

Ball Bearing

Torque Gear

Retaining Ring

V-Belt

Thrust Washer

Hex. Screw M10 X 110

Variator Cover

Hex Screw M6 X 30

Drain Plug Kit
