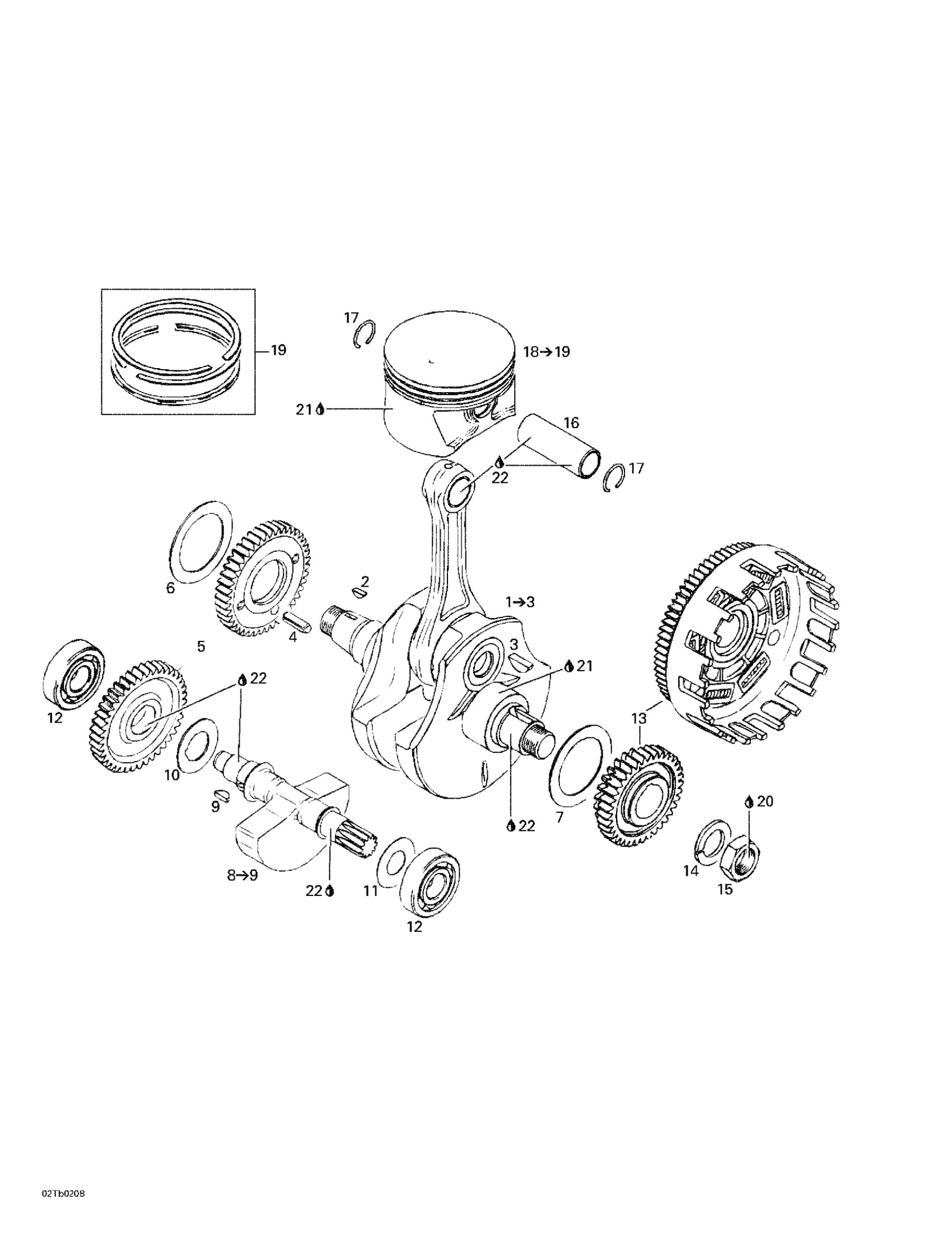

Can-Am DS 650 Baja, 2002 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y

711295192

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.38

3

WOODRUFF KEY 6 X 9 - Call your local BRP dealership

420946015

Unavailable

4

Pin M8 X 24

732804009

Unavailable

5

Balance Gear Ass'y

711294478

Unavailable

6

Shim 48/67/1

711627030

Unavailable

7

Shim 48/67/1,25

711627031

Unavailable

Shim 48/67/1,4

711627035

Unavailable

Shim 48/67/1,5

711627032

Unavailable

Shim 48/67/1,75

711627033

Unavailable

8

Balance Shaft Ass'y

711220745

Unavailable

9

Woodruff Key 4 X 5

420246570

$3.38

10

Thrust Washer 24,3/41/1,5

711227542

Unavailable

11

Thrust Washer 20/41/0,8

711627070

Unavailable

Thrust Washer 20/41/1

711627071

Unavailable

Thrust Washer 20/41/1,2

711627072

Unavailable

Thrust Washer 20/41/1,4

711627073

Unavailable

12

Ball Bearing 6304

711932096

Unavailable

13

Primary Drive Ass'y

711296365

Unavailable

14

Lock Washer, 22 mm

420945759

$1.90

15

Hex. Nut, M22 X 1.5

420842239

$17.53

16

Piston Pin

711216201

Unavailable

17

Circlip #22

711245435

Unavailable

18

Piston Ass'y | Includes 18 - 19.

711295185

Unavailable

19

Piston Ring Set

420295184

$79.99

20

Loctite 243, 10 ml

293800060

$21.49

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Was 420297616 Klueber Grease, 60g

219704464

$23.99
