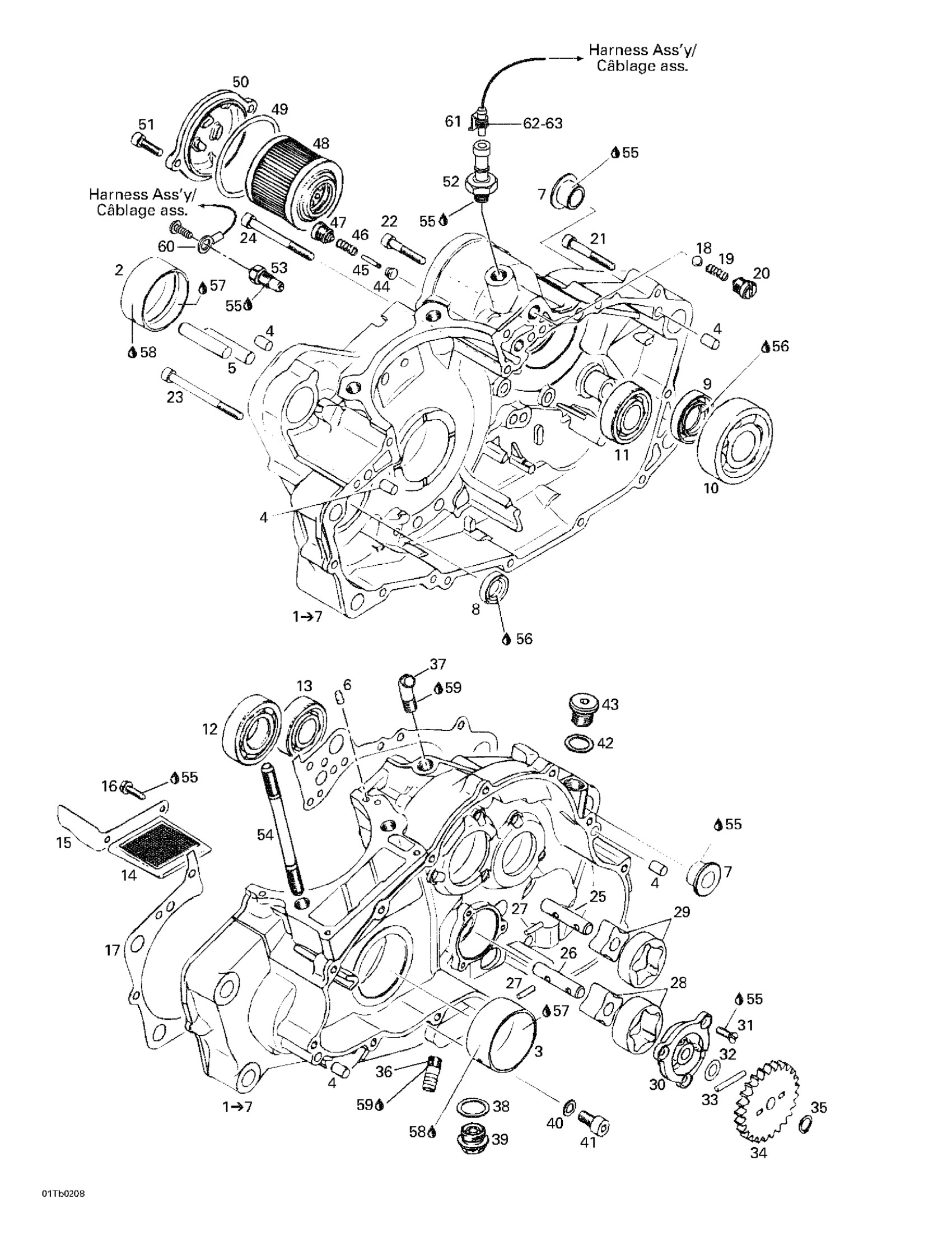

Can-Am DS 650 Baja, 2002 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711296346

Unavailable

2

Bushing

711233675

Unavailable

3

Bushing

711233680

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Location Pin 10 M6x50

420229302

$3.17

6

Drive Pin 5 X 10

420929650

$1.68

7

Sleeve

711247320

Unavailable

8

Oil Seal

711430550

Unavailable

9

OIL SEAL - Call your local BRP dealership

420230395

Unavailable

10

Ball Bearing

420932822

$30.49

11

Ball Bearing 6303

711232501

Unavailable

12

Ball Bearing 6205

420232764

$25.99

13

Ball Bearing

420932816

$42.49

14

Oil Sieve

420256322

$28.49

15

Oil Sieve Guide

711256430

Unavailable

16

Taptite Screw M5 X 16

420941928

Unavailable

17

Gasket

711250910

Unavailable

18

BALL 8 MM - Call your local BRP dealership

420932830

Unavailable

19

Compression Spring

711239280

Unavailable

20

Valve Pin Screw

711256170

Unavailable

21

Socket Head Screw M6 x 45

711241822

Unavailable

22

Socket Head Screw M6 x 35

711241810

Unavailable

23

Socket Head Screw M6 x 75

711240531

Unavailable

24

Socket Head Screw M6 x 65

711241262

Unavailable

25

Oil Pump Shaft

711220762

Unavailable

26

Oil Pump Shaft

711220760

Unavailable

27

Needle Pin

420232731

$4.01

28

Oil Pump Rotor, Suction

420256681

$35.99

29

Oil Pump Rotor, Pressure

420256671

$33.99

30

Oil Pump Cover

711210642

Unavailable

31

Torx Head Screw M5 X 16

420640823

$1.90

32

Thrust Washer

420827590

$4.01

33

Needle Pin

420232431

$4.39

34

Oil Pump Gear (25 Teeth)

711234560

Unavailable

35

Snap Ring

420245330

$1.79

36

Hose Nipple

711256330

Unavailable

37

Angle Tube

711924245

Unavailable

38

Crush Washer

420552280

$3.70

39

Drain Plug M18 X 1.5

420840278

$23.99

40

Sealing Ring

420950141

$2.00

41

Socket Head Screw M8 X 16

205081660

Unavailable

42

O-Ring

420430622

$4.44

43

Plug Screw M16 x 1,5

711240232

Unavailable

44

Retaining Valve

711260570

Unavailable

45

Valve Pin

711256150

Unavailable

46

Spring (Compression)

711239810

Unavailable

47

Valve Pin Screw

711256170

Unavailable

48

Oil Filter

420256188

$13.77

49

O-Ring

420230923

$3.17

50

Oil Filter Cover | 7449.

711610230

Unavailable

51

Socket Head Screw M6 X 30

205063044

$1.69

52

Inter.Press.Hui*Switch-Oil Pressure

420856539

$43.99

53

Position Switch

420241856

$35.99

54

Stud M10 x 223

711640470

Unavailable

55

Loctite 243, 10 ml

293800060

$21.49

56

Grease, Super Lube

293550030

$28.99

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Was 420297616 Klueber Grease, 60g

219704464

$23.99

59

Loctite 277, 10 ml

293800073

Unavailable

60

OPEN BARREL - Call your local BRP dealership

710000112

Unavailable

61

Male Housing, 1 Circuit

278001012

$16.86

62

Female Terminal

278001014

$3.28

63

Wire Seal

278001013

$3.28
