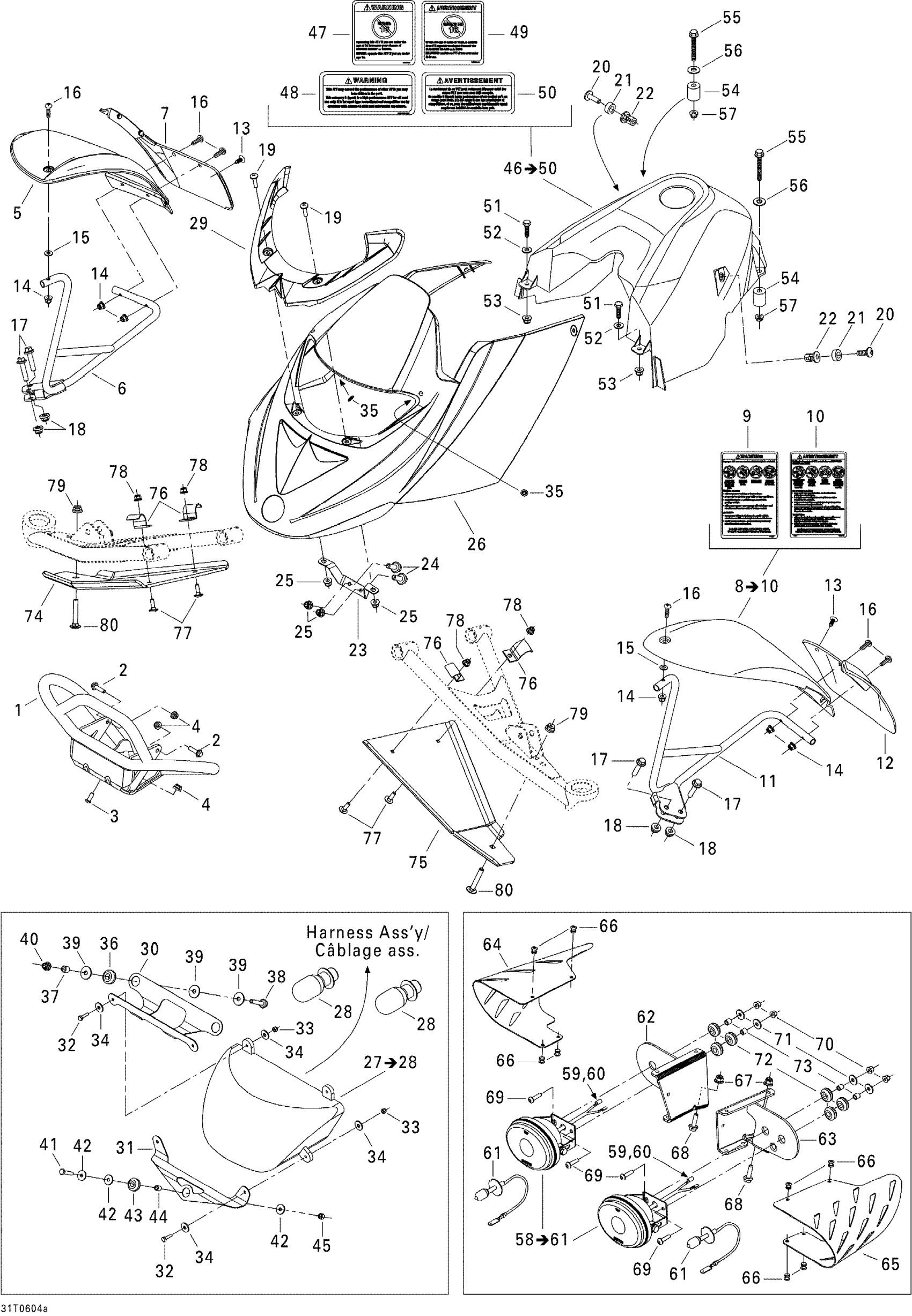

Can-Am DS 650 X, 2006 09- Body And Accessories, Front View Diagram

#

Description
Price

1

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

3

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

RH FRONT FENDER, BLACK - Call your local BRP dealership | DS 650 X

705000360

Unavailable

6

RH FRONT FENDER SUPPORT - Call your local BRP dealership

705001090

Unavailable

7

RH FRONT MUDGUARD - Call your local BRP dealership

705000095

Unavailable

8

LH Front Fender Kit, Black | DS 650 X / Includes 8 to 10

703500127

Unavailable

9

WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership

704901878

Unavailable

10

Warning Decal, Death And Injuries

704900002

Unavailable

11

LH FRONT FENDER SUPPORT - Call your local BRP dealership

705001091

Unavailable

12

LH FRONT MUDGUARD - Call your local BRP dealership

705000096

Unavailable

13

Dart

414939500

$1.04

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Flat Washer

224061201

$1.37

16

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

17

Hex. Flange Screw M8 X 35

207683544

$1.69

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000147

Unavailable

20

Phillips Screw M6 X 20, Scotch Grip

250000043

Unavailable

21

BUSHING - Call your local BRP dealership

506117300

Unavailable

22

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

23

FASCIA BRACKET, BLACK - Call your local BRP dealership

705000146

Unavailable

24

Hex. Flange Screw M6 X 16

207661644

$0.74

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

FRONT FASCIA, BLACK - Call your local BRP dealership | DS 650 X

705000888

Unavailable

27

Headlamp | Includes 25 to 26

705000805

Unavailable

28

BULB - Call your local BRP dealership

710000685

Unavailable

29

Headlamp Cover | DS 650 X

705000806

Unavailable

30

SUPERIOR LAMP BRAKET - Call your local BRP dealership

705000905

Unavailable

31

LAMP SUPPORT - Call your local BRP dealership

705000904

Unavailable

32

HEX. SCREW M4 X 16 - Call your local BRP dealership

207141644

Unavailable

33

Elastic Stop Nut M4

232541414

$0.58

34

Flat Washer 4 mm, Stainless

234042600

$1.15

35

Push Nut

732610072

$2.19

36

Grommet

709000582

$4.69

37

Bushing

293900105

$7.65

38

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

39

Flat Washer

224061201

$1.37

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

42

Washer

517124300

$0.19

43

Grommet

414036300

$2.79

44

Bushing

293900112

$10.06

45

Elastic Stop Nut M5

232551414

$0.87

46

Tank Cover Kit | DS 650 X / / Includes 44 to 48

703500335

Unavailable

47

Warning Decal, Under 16 Years Old

704900011

Unavailable

48

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704900089

Unavailable

49

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

50

Warning Decal,, Performance

704900105

Unavailable

51

Hex. Screw M6 X 30

207063044

$1.26

52

Flat Washer

224061201

$1.37

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

54

SPACER - Call your local BRP dealership

705000114

Unavailable

55

Hex. Flange Screw M8 x 60

207686044

$3.07

56

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

57

Hex. Flange Elastic Nut M8

233281414

$1.47

58

HEADLAMP - Call your local BRP dealership | DS 650 X / Includes 59 to 62

710000268

$64.99

59

Female Terminal | DS 650 X

278001009

$3.19

60

Insulated Sheath

278001007

$3.58

61

BULB H3 35W - Call your local BRP dealership | DS 650 X

710000776

Unavailable

62

RH HEADLAMP SUPPORT - Call your local BRP dealership | DS 650 X

705000397

Unavailable

63

LH Headlamp Support | DS 650 X

705000398

Unavailable

64

RH HEADLAMP PROTECTOR - Call your local BRP dealership | DS 650 X

705000399

Unavailable

65

LH HEADLAMP PROTECTOR - Call your local BRP dealership | DS 650 X

705000400

Unavailable

66

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

67

Hex. Flange Screw M6 X 20

207662044

$2.00

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

69

SOCKET HEAD SCREW M5 X 20 - Call your local BRP dealership | DS 650 X

205452046

Unavailable

70

Hex. Flange Elastic Nut M5

233251414

$1.04

71

Washer | DS 650 X

391301600

$0.48

72

Grommet

414036300

$2.79

73

Bushing

293900112

$10.06

74

LH Arm Protector | DS 650 X

705001055

Unavailable

75

RH Arm Protector | DS 650 X

705001056

Unavailable

76

BRAKET - Call your local BRP dealership | DS 650 X

705001057

Unavailable

77

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

79

Hex. Flange Elastic Nut M8

233281414

$1.47

80

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41
