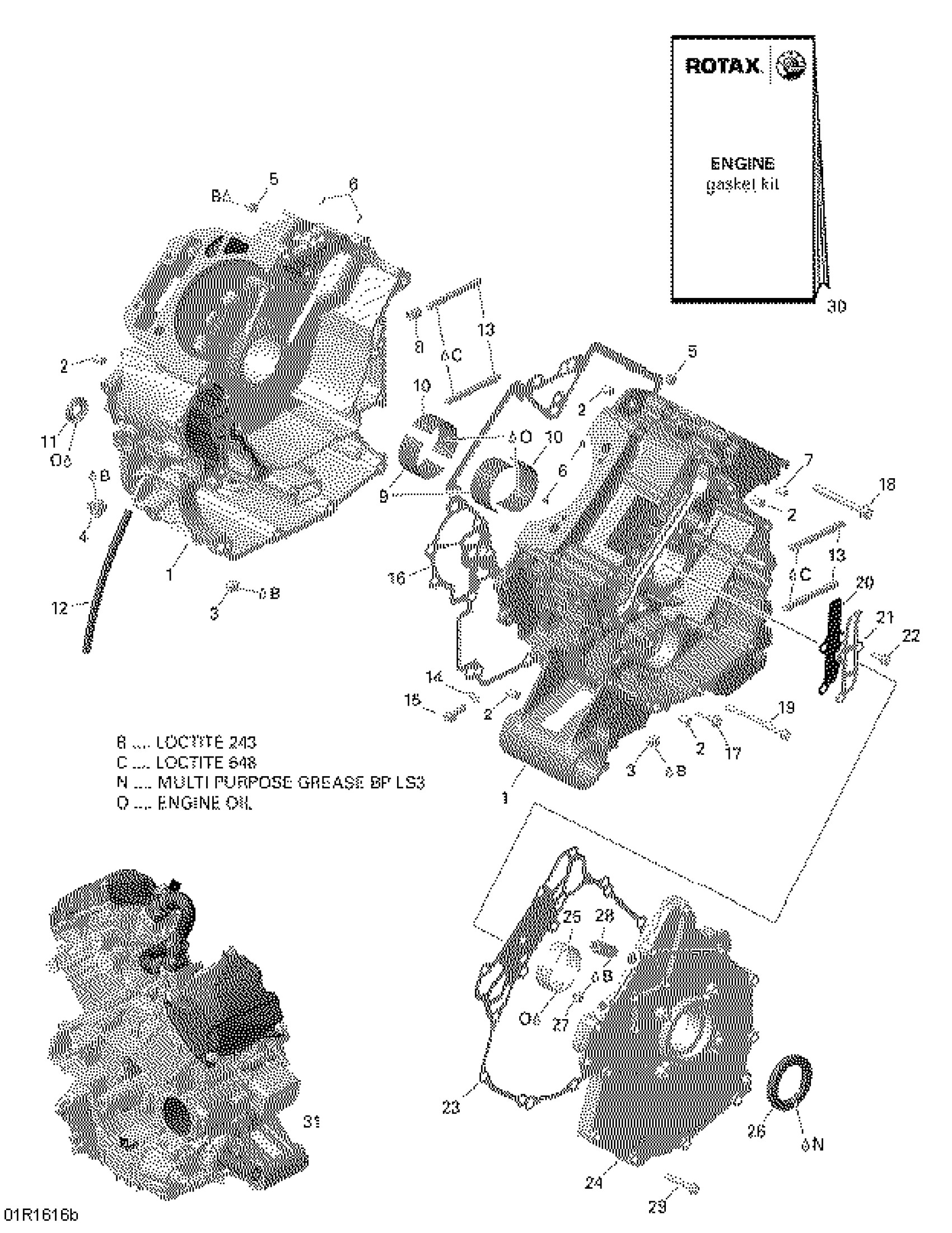

Can-Am 004 - Outlander - 650 EFI - PRO Package 0003PGA00 0003PGB00 0003TGA00 0003TGB00 01- Crankcase - 650 EFI (Package PRO) Diagram

Description

Price

1>12

Crankcase Ass'y | Includes 1 to 12

420685253

$1,150.49

Center Pin 8 X 12

420632010

$4.01

Plug Screw M12 X 1.5

420840657

$8.57

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

Plug Screw M10 X 1

420641323

$14.28

Drive Pin 5 X 10

420929650

$1.68

Needle Pin

420932780

$7.41

Dowel Pin 10 X 13

420929670

$11.60

Plain Bearing

420233960

$23.99

Plain Bearing

420233965

$23.99

Oil Seal

420650315

$11.65

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

Stud

420240816

$7.09

Sealing Ring

420950141

$2.00

Torx Flange Screw M8 X 16

420440852

$4.12

Gasket

420651227

$31.99

Torx Flange Screw M6 X 25

420641238

$3.27

Torx Flange Screw M8 X 65

420440402

$7.41

Torx Flange Screw M6 X 75

420440657

$4.44

Reed Valve

420224721

$19.19

Reed Valve Stop

420224725

$11.63

Torx Flange Screw M6 X 16

420641048

$2.96

Gasket

420651211

$26.49

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

Bearing Sleeve

420233995

$20.99

Oil Seal

420631933

$27.49

Plug Screw M10 X 1

420641323

$14.28

Hose Nipple

420256332

$17.53

Torx Flange Screw M6 X 35

420440274

$1.01

Gasket Set

420684154

$381.49

Engine Long Block 660 | PRO Package

420066050

$3,887.99
